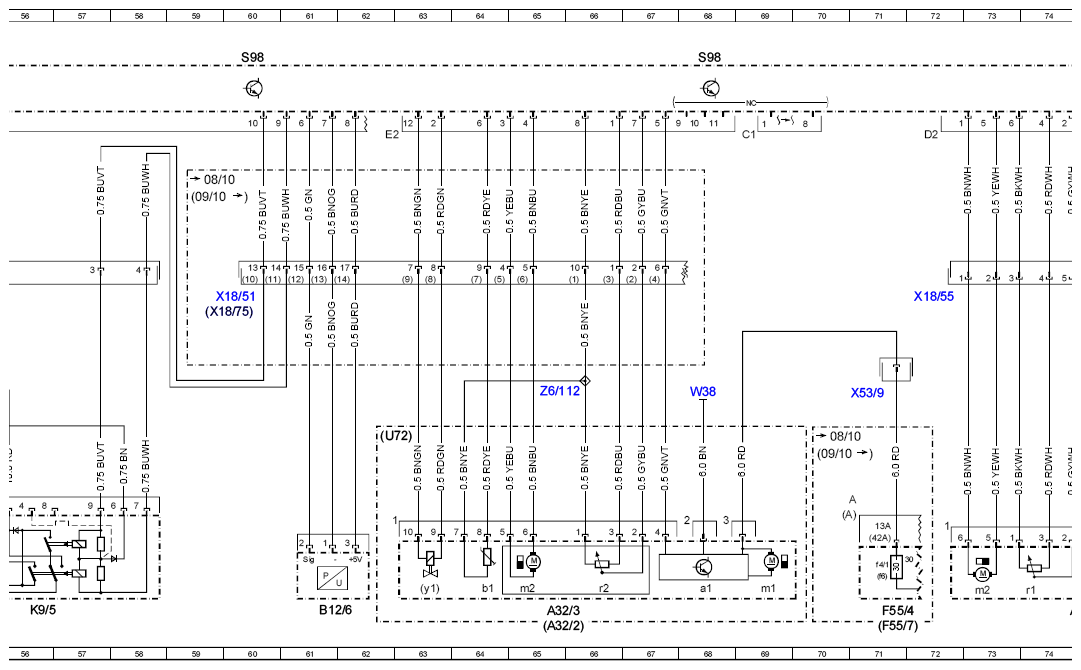

| A32/1 |
Rear heater/air conditioner air recirculation unit |
74L |
| A32/1a1 |
Rear heater blower regulator |
75L |
| A32/1m1 |
Rear heater blower motor |
76L |
| A32/1m2 |
Rear heater water valve motor |
73L |
| A32/1r1 |
Rear heater water valve potentiometer |
74L |
| A32/2 |
Rear automatic air conditioning recirculation unit |
65L |
| A32/2y1 |
Refrigerant shutoff valve |
63L |
| A32/3 |
Rear heavy duty automatic air conditioning recirculation unit |
65L |
| A32/3a1 |
Blower regulator |
68L |
| A32/3b1 |
Evaporator temperature sensor |
64L |
| A32/3m1 |
Blower motor |
69L |
| A32/3m2 |
Blending air flap actuator motor |
65L |
| A32/3r2 |
Blend air flap potentiometer |
66L |

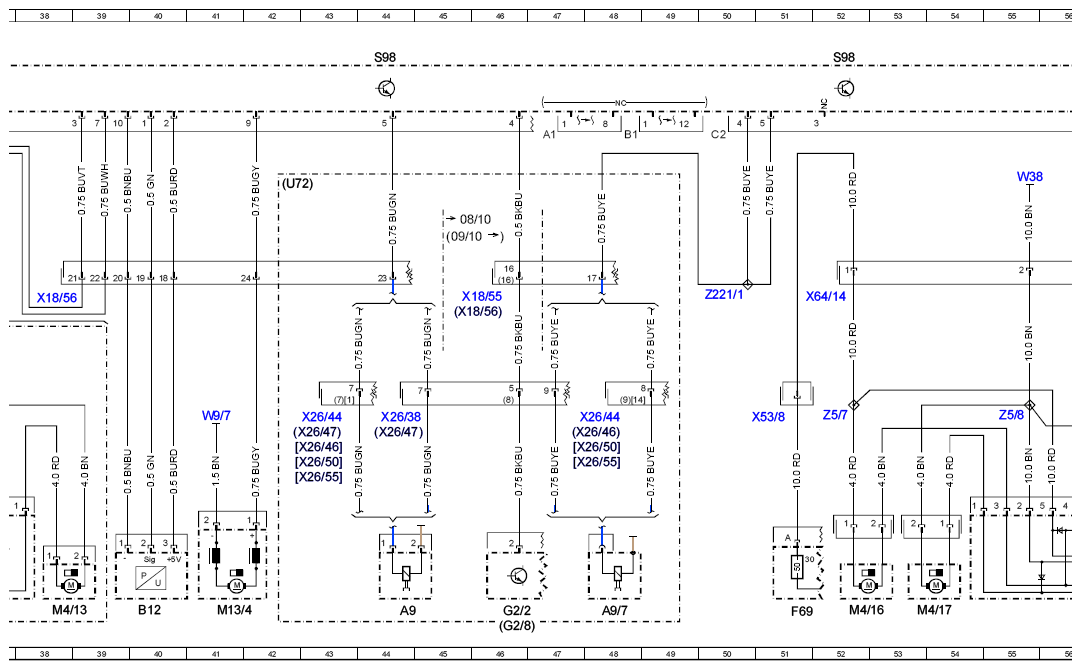

| A9 |
Refrigerant compressor |
44L |
| A9/7 |
2nd refrigerant compressor |
48L |
| B10/6 |
Evaporator temperature sensor |
11L |
| B12 |
Refrigerant pressure sensor |
40L |
| B12/6 |
Roof refrigerant pressure sensor |
61L |

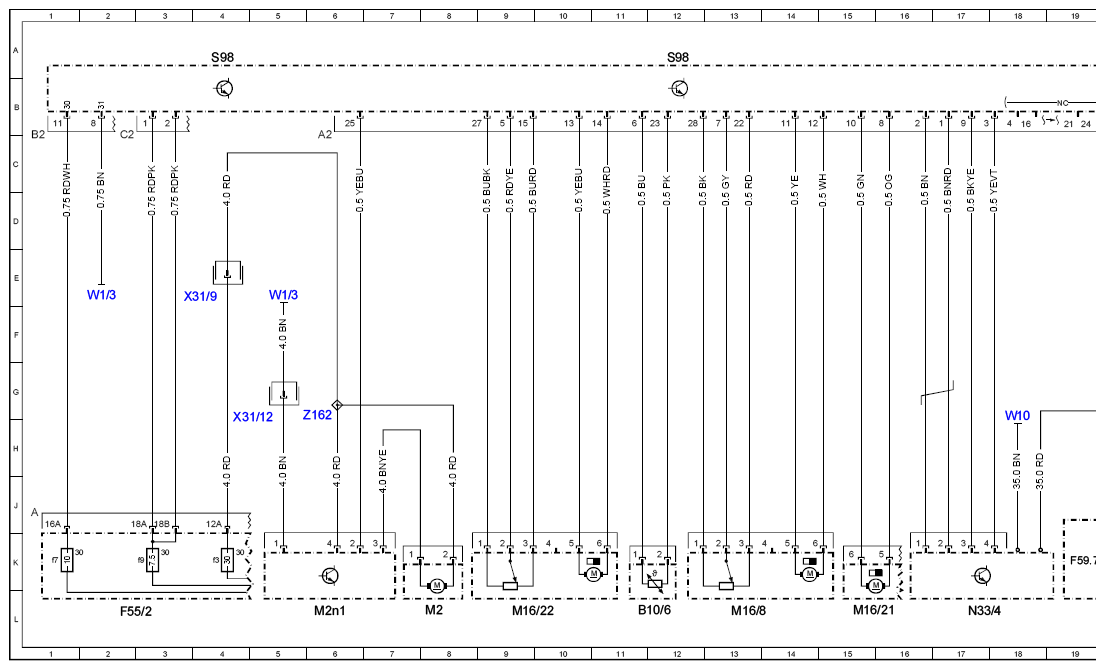

| F55/2 |
Fuse block (9 fuses) |
2L |
| F55/2f3 |
Fuse 12 (30 A), front blower |
4K |
| F55/2f7 |
Fuse 16 (10 A), front climate control, CD changer |
1K |
| F55/2f9 |
Fuse 18 (7.5 A) rear climate control |
2K |
| F55/4 |
Fuse block (9 fuses) |
71L |
| F55/4f4/1 |
Fuse 13 (30 A), rear air conditioning |
71K |
| F55/6 |
Fuse block (9 fuses) |
78L |
| F55/6f4 |
Fuse 31 (15/30 A) closing assist/left sliding door/rear blower |
78K |
| F55/7 |
Fuse block (9 fuses) |
71L |
| F55/7f6 |
Fuse 42 (30 A), rear air conditioning |
71K |
| F59 |
Fuse box |
19L |
| F59 |
Fuse box |
24L |
| F59.2 |
Fuse (40/60 A), tml. 30 air conditioning additional fan |
24K |
| F59.7 |
Tml. 30 PTC heater booster fuse (150 A) |
19K |
| F69 |
Air conditioning fuse (50A) |
51L |
| G2/2 |
Alternator |
46L |
| G2/8 |
Alternator |
46L |
| K9 |
Additional fan relay |
36L |
| K9/2 |
Additional fan relay (mono) |
29L |
| K9/5 |
Roof additional fan relay |
56L |
| M13/4 |
Circulation pump |
41L |
| M16/21 |
Fresh air/air recirculation flap actuator motor |
15L |
| M16/22 |
Air distribution actuator motor |
9L |
| M16/8 |
Blending air flap actuator motor |
13L |
| M2 |
Blower motor |
8L |
| M2n1 |
Blower regulator |
6L |
| M4/13 |
Air conditioner 1 additional fan |
26L |
| M4/13 |
Air conditioner 1 additional fan |
38L |
| M4/14 |
Air conditioner 2 additional fan |
33L |
| M4/16 |
Roof air conditioner 1 additional fan |
52L |
| M4/17 |
Roof air conditioner 2 additional fan |
54L |
| N33/4 |
Electric PTC heater booster |
17L |
| R15 |
AC mono fan resistor |
27L |
| S98 |
AAC [KLA] control and operating unit |
4A |
| S98 |
AAC [KLA] control and operating unit |
12A |
| S98 |
AAC [KLA] control and operating unit |
28A |
| S98 |
AAC [KLA] control and operating unit |
20A |
| S98 |
AAC [KLA] control and operating unit |
36A |
| S98 |
AAC [KLA] control and operating unit |
44A |
| S98 |
AAC [KLA] control and operating unit |
52A |
| S98 |
AAC [KLA] control and operating unit |
60A |
| S98 |
AAC [KLA] control and operating unit |
68A |
| S98 |
AAC [KLA] control and operating unit |
75A |
| U67 |
Valid for AC mono fan |
25F |
| U68 |
Valid for AC duo fan |
32F |
| U70 |
Valid for USA, Canada |
20F |
| U72 |
Valid for all except USA, Canada |
20F |
| U72 |
Valid for all except USA, Canada |
62H |
| U72 |
Valid for all except USA, Canada |
42C |
| W1/3 |
CLS cockpit ground point 1 |
2E |
| W1/3 |
CLS cockpit ground point 1 |
5E |
| W10 |
Battery ground point |
18H |
| W2 |
Right front lamp unit ground point |
32C |
| W38 |
Roof ground point |
68G |
| W38 |
Roof ground point |
55C |
| W71/2 |
Driver seat frame ground point 2 |
76H |
| W9/7 |
Left front ground point 2 |
41H |
| X18/51 |
COC/roof connector 2 |
60E |
| X18/55 |
HLS/COC connector 3 |
46E |
| X18/55 |
HLS/COC connector 3 |
72E |
| X18/56 |
HLS/COC connector |
38E |
| X18/56 |
HLS/COC connector |
46F |
| X18/75 |
COC/roof connector 5 |
60F |
| X26/38 |
Engine wiring harness connector |
44H |
| X26/44 |
Engine wiring harness connector |
43H |
| X26/44 |
Engine wiring harness connector |
48H |
| X26/46 |
Engine wiring harness connector 1 |
43H |
| X26/46 |
Engine wiring harness connector 1 |
48H |
| X26/47 |
Engine wiring harness connector |
44H |
| X26/47 |
Engine wiring harness connector |
43H |
| X26/50 |
Engine wiring harness connector 1 |
48H |
| X26/50 |
Engine wiring harness connector 1 |
43H |
| X26/55 |
Engine wiring harness connector 1 |
43J |
| X26/55 |
Engine wiring harness connector 1 |
48H |
| X30/25 |
Interior CAN bus connector |
22L |
| X31/12 |
Tml. 31 blower connector |
5H |
| X31/9 |
Blower switch connector |
4E |
| X53/8 |
Roof air conditioning connector |
51H |
| X53/9 |
Roof air conditioning connector |
71G |
| X64/13 |
Double auxiliary fan connector |
30E |
| X64/14 |
Roof double auxiliary fan connector |
52E |
| Z162 |
Blower motor connector sleeve |
6G |
| Z221/1 |
2nd refrigerant compressor connector sleeve |
50E |
| Z5/4 |
AC fan tml. 30 connector sleeve |
32G |
| Z5/5 |
AC fan circuit 31 connector sleeve |
30G |
| Z5/5 |
AC fan circuit 31 connector sleeve |
35G |
| Z5/7 |
Roof AC fan tml. 30 connector sleeve |
52G |
| Z5/8 |
Roof AC fan tml. 31 connector sleeve |
55G |
| Z5/9 |
AC fan connector sleeve (mono) |
25G |
| Z6/112 |
Temperature sensor ground connector sleeve |
65G |
