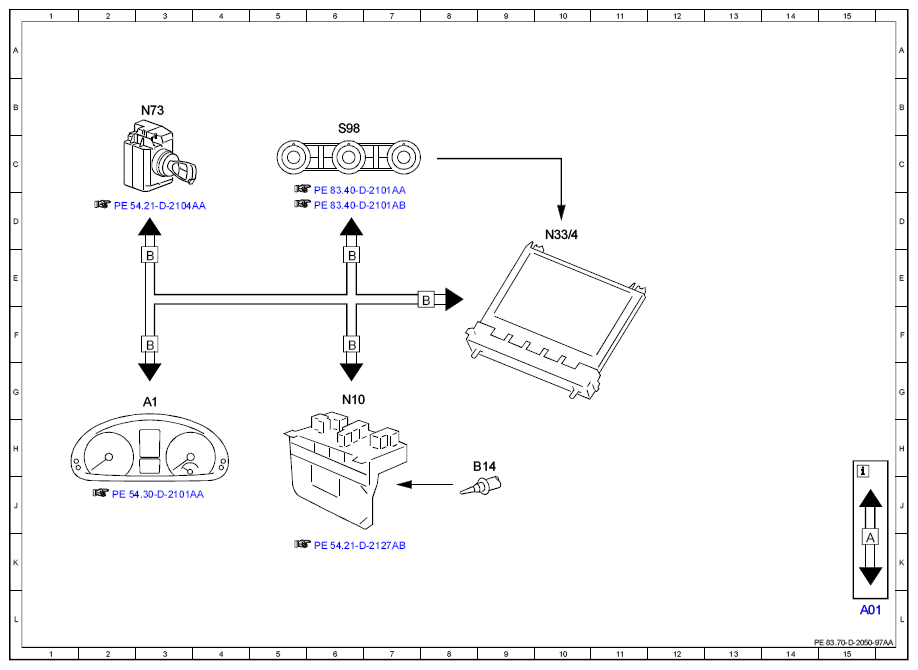

Function Schematic For Stationary Heater (STH) Electrical System - Pe83.70-D-2050-97AA

Code:	Designation:	Position:
A01	Explanation of CAN and LIN-Bus	15L
A1	Instrument cluster	3G
B14	Outside air temperature sensor	9H
N10	SAM control unit	6G
N33/4	Electric PTC heater booster	10D
N73	EIS [EZS] control unit	3B
S98	AAC [KLA] control and operating unit	6B

Courtesy of MERCEDES-BENZ USA
