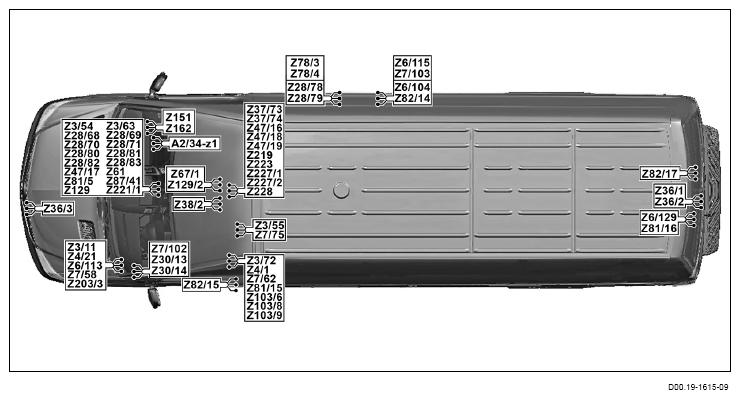

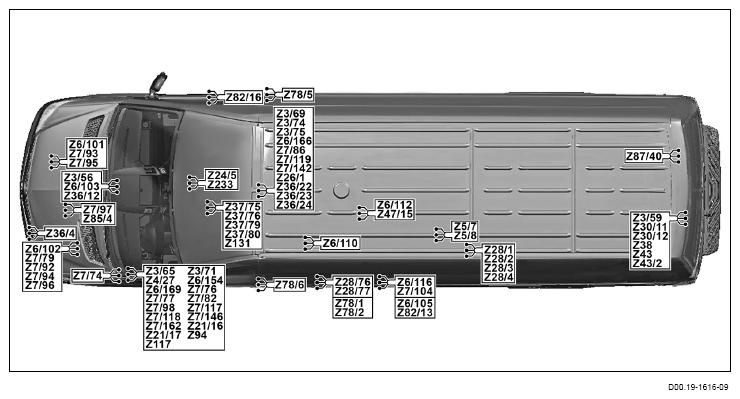

Location And Assignment Of Z Connector Sleeves (Line Connections In Wiring Harness) - GF00.19-D-3002AA
Model 906 as of 7/1/13
| A2/34-z1 | Terminal connector for FBS wire antenna | Location | GF00.19-D-3001-03AA |
| Assignment | PE54.21-D-2104AC | ||
| Z3/11 | Circuit 15 (fused) connector sleeve | Location | GF00.19-D-3001-17AA |
| Assignment | PE54.00-D-2010AF | ||
| Z3/54 | Circuit 15R end sleeve | Location | GF00.19-D-3001-03AA |
| Assignment | PE54.00-D-2010AF | ||
| Z3/55 | Tml. 15 connector sleeve | Location | GF00.19-D-3001-13AA |
| Assignment | PE54.00-D-2010AF | ||
| Z3/56 | Headlamp range adjustment (HRA [LWR]) circuit 15 connector sleeve | Location | GF00.19-D-3001-14AA |
| Assignment | PE54.00-D-2010AF | ||
| Z3/59 | Circuit 15 connector sleeve, rear-end door wiper motor | Location | GF00.19-D-3001-15AA |
| Assignment | PE54.21-D-2127AG | ||
| Z3/63 | Working speed control (ADR) circuit 15 connector sleeve | Location | GF00.19-D-3001-03AA |
| Assignment | PE54.00-D-2010AF | ||
| Z3/65 | Tml. 15 connector sleeve | Location | GF00.19-D-3001-17AA |
| Assignment | PE54.00-D-2010AI | ||
| Z3/69 | Tml. 15 connector sleeve | Location | GF00.19-D-3001-13AA |
| Assignment | PE54.00-D-2010AF | ||
| Z3/71 | Brake system circuit 15 connector sleeve | Location | GF00.19-D-3001-17AA |
| Assignment | PE54.15-D-2001AD | ||
| Assignment | PE54.15-D-2001AE | ||
| Z3/72 | Tml. 15 connector sleeve | Location | GF00.19-D-3001-13AA |
| Assignment | PE54.00-D-2010AF | ||
| Z3/74 | Rear radar sensors circuit 15 connector sleeve | Location | GF00.19-D-3001-13AA |
| Assignment | PE54.71-D-2100AA | ||
| Z3/75 | Minibus circuit 15R connector sleeve | Location | GF00.19-D-3001-13AA |
| Assignment | PE54.15-D-2400AJ | ||
| Z4/1 | Dome lamp circuit 30 connector sleeve | Location | GF00.19-D-3001-13AA |
| Assignment | PE82.20-D-2000AD | ||
| Z4/21 | Electronic ignition lock (EZS) circuit 30 connector sleeve | Location | GF00.19-D-3001-17AA |
| Assignment | PE54.15-D-2001AD | ||
| Assignment | PE54.15-D-2001AE | ||
| Z4/27 | Tire pressure monitor (TPM [RDK]) circuit 30 connector sleeve | Location | GF00.19-D-3001-17AA |
| Assignment | PE40.15-D-2101AC | ||
| Z5/7 | Roof A/C fan circuit 30 connector sleeve | Location | GF00.19-D-3001-13AA |
| Assignment | PE83.40-D-2101AD | ||
| Z5/8 | Roof A/C fan circuit 31 connector sleeve | Location | GF00.19-D-3001-13AA |
| Assignment | PE83.40-D-2101AD | ||
| Z6/101 | Sensor ground connection connector sleeve | Location | GF00.19-D-3001-14AA |
| Assignment | PE07.61-D-2101AG | ||
| Z6/102 | Sensor ground connection connector sleeve | Location | GF00.19-D-3001-14AA |
| Assignment | PE07.61-D-2101AG | ||
| Z6/103 | Headlamp range adjustment (HRA [LWR]) ground connection connector sleeve | Location | GF00.19-D-3001-14AA |
| Assignment | PE54.00-D-2010AF | ||
| Z6/104 | Right sliding door ground connection connector sleeve | Location | GF00.19-D-3001-19AA |
| Assignment | PE72.16-D-2102AB | ||
| Z6/105 | Left sliding door ground connection connector sleeve | Location | GF00.19-D-3001-19AA |
| Assignment | PE72.16-D-2101AB | ||
| Z6/110 | Interior lights ground connection connector sleeve | Location | GF00.19-D-3001-13AA |
| Assignment | PE82.20-D-2000AD | ||
| Z6/112 | Temperature sensor ground connection connector sleeve | Location | GF00.19-D-3001-13AA |
| Assignment | PE83.40-D-2101AD | ||
| Z6/113 | Ground connection connector sleeve | Location | GF00.19-D-3001-14AA |
| Assignment | PE54.00-D-2000AK | ||
| Assignment with engine 642 with code MH7 (Low-emission engine EPA 16/CARB) | PE07.16-D-2101AZ | ||
| Assignment with engine 642 with code MH3 (Low-emission engine EPA 13/CARB) | PE07.16-D-2101AU | ||
| Z6/115 | Right electric sliding door ground connection connector sleeve | Location | GF00.19-D-3001-19AA |
| Assignment | PE72.16-D-2102AB | ||
| Z6/116 | Left electric sliding door ground connection connector sleeve | Location | GF00.19-D-3001-19AA |
| Assignment | PE72.16-D-2101AB | ||
| Z6/129 | License plate lamp ground connection connector sleeve | Location | GF00.19-D-3001-19AA |
| Assignment | PE54.21-D-2127AG | ||
| Z6/154 | Sensor ground connection connector sleeve | Location | GF00.19-D-3001-17AA |
| Z6/166 | Rear radar sensors connector sleeve | Location | GF00.19-D-3001-13AA |
| Assignment | PE54.71-D-2100AA | ||
| Z6/169 | Ground connection connector sleeve | Location | GF00.19-D-3001-17AA |
| Z7/58 | Circuit 30 end sleeve | Location | GF00.19-D-3001-17AA |
| Assignment | PE54.15-D-2001AD | ||
| Assignment | PE54.15-D-2001AE | ||
| Z7/62 | Anti-theft alarm system (ATA [EDW]) circuit 30 connector sleeve | Location | GF00.19-D-3001-13AA |
| Assignment | PE54.21-D-2107AC | ||
| Z7/74 | Circuit 30 end sleeve | Location | GF00.19-D-3001-17AA |
| Assignment engine 642 with code E33 (Battery management) | PE15.00-D-2000AP | ||
| Assignment engine 651 except code MH5 (Low-emission engine EPA 14/CARB) | PE15.00-D-2000AO | ||
| Assignment engine 651 with code MH5 (Low-emission engine EPA 14/CARB) | PE15.00-D-2000AT | ||
| Assignment with engine 642 | PE15.00-D-2000AS | ||
| Z7/75 | Circuit 30 end sleeve | Location | GF00.19-D-3001-13AA |
| Assignment engine 642 with code E33 (Battery management) | PE15.00-D-2000AP | ||
| Assignment engine 651 except code MH5 (Low-emission engine EPA 14/CARB) | PE15.00-D-2000AO | ||
| Assignment engine 651 with code MH5 (Low-emission engine EPA 14/CARB) | PE15.00-D-2000AT | ||
| Assignment with engine 642 | PE15.00-D-2000AS | ||
| Z7/76 | Circuit 87 end sleeve | Location | GF00.19-D-3001-17AA |
| Assignment with engine 642 with code MH3 (Low-emission engine EPA 13/CARB), plug F | PE07.16-D-2101AT | ||
| Assignment with engine 642 with code MH3 (Low-emission engine EPA 13/CARB), plug M | PE07.16-D-2101AU | ||
| Assignment with engine 651 with code MH5 (Low-emission engine EPA 14/CARB) | PE07.16-D-2101AX | ||
| Assignment with engine 642 with code MH7 (Low-emission engine EPA 16/CARB) | PE07.16-D-2101AZ | ||
| Z7/77 | Circuit 87 end sleeve | Location | GF00.19-D-3001-17AA |
| Assignmentwith engine 642 with code MH3 (Low-emission engine EPA 13/CARB) | PE07.16-D-2101AT | ||
| Assignment with engine 651 with code MH5 (Low-emission engine EPA 14/CARB) | PE07.16-D-2101AX | ||
| Assignment with engine 642 with code MH7 (Low-emission engine EPA 16/CARB) | PE07.16-D-2101AZ | ||
| Z7/79 | 5V output connector sleeve | Location | GF00.19-D-3001-14AA |
| Assignment | PE07.61-D-2101AG | ||
| Z7/82 | Circuit 87 end sleeve | Location | GF00.19-D-3001-17AA |
| Assignment with engine 651 with code MH5 (Low-emission engine EPA 14/CARB) | PE07.16-D-2101AX | ||
| Assignment with engine 642 with code MH3 (Low-emission engine EPA 13/CARB) | PE07.16-D-2101AT | ||
| Assignment with engine 642 with code MH7 (Low-emission engine EPA 16/CARB) | PE07.16-D-2101AZ | ||
| Z7/86 | 5V output connector sleeve | Location | GF00.19-D-3001-13AA |
| Assignment | PE07.61-D-2101AG | ||
| Z7/92 | Circuit 87 end sleeve | Location | GF00.19-D-3001-14AA |
| Assignment | PE07.61-D-2101AG | ||
| Z7/93 | Circuit 87 end sleeve | Location | GF00.19-D-3001-14AA |
| Assignment | PE07.61-D-2101AG | ||
| Z7/94 | Circuit 87 end sleeve | Location | GF00.19-D-3001-14AA |
| Assignment | PE07.61-D-2101AG | ||
| Z7/95 | Circuit 87 end sleeve | Location | GF00.19-D-3001-14AA |
| Assignment | PE07.61-D-2101AG | ||
| Z7/96 | Circuit 87 end sleeve | Location | GF00.19-D-3001-14AA |
| Assignment | PE07.61-D-2101AG | ||
| Z7/97 | Circuit 87 end sleeve | Location | GF00.19-D-3001-14AA |
| Assignment | PE07.61-D-2101AG | ||
| Z7/98 | Circuit 87 end sleeve | Location | GF00.19-D-3001-17AA |
| Z7/102 | Circuit 30 end sleeve | Location | GF00.19-D-3001-17AA |
| Assignment | PE54.00-D-2010AG | ||
| Z7/103 | Circuit 30 connector sleeve, right electric sliding door | Location | GF00.19-D-3001-19AA |
| Assignment | PE72.16-D-2102AB | ||
| Z7/104 | Circuit 30 connector sleeve, left electric sliding door | Location | GF00.19-D-3001-19AA |
| Assignment | PE72.16-D-2101AB | ||
| Z7/117 | Circuit 87 end sleeve | Location | GF00.19-D-3001-17AA |
| Z7/118 | Circuit 87 end sleeve | Location | GF00.19-D-3001-17AA |
| Z7/119 | Circuit 87 end sleeve | Location | GF00.19-D-3001-13AA |
| Z7/142 | Circuit 30 connector sleeve, left step | Location | GF00.19-D-3001-13AA |
| Assignment | PE72.16-D-2000AC | ||
| Z7/146 | 5V output connector sleeve | Location | GF00.19-D-3001-17AA |
| Z7/162 | Circuit 87 (6) connector sleeve | Location | GF00.19-D-3001-17AA |
| Assignment | PE14.40-D-2101AC | ||
| Z21/16 | Control circuit 1 central locking connector sleeve | Location | GF00.19-D-3001-17AA |
| Assignment | PE54.21-D-2127AG | ||
| Z21/17 | Control circuit 1 central locking connector sleeve | Location | GF00.19-D-3001-17AA |
| Assignment | PE54.21-D-2127AG | ||
| Z24/5 | Anti-theft alarm system (ATA [EDW]) interior sensor connector sleeve | Location | GF00.19-D-3001-13AA |
| Assignment | PE54.21-D-2107AC | ||
| Z26/1 | Circuit D+ connector sleeve | Location | GF00.19-D-3001-13AA |
| Assignment of left-hand drive vehicle | PE15.00-D-2401AA | ||
| Assignment of right-hand drive vehicle | PE15.00-D-2401AB | ||
| Z28/1 | Left rear speaker connector sleeve (signal +) | Location | GF00.19-D-3001-13AA |
| Assignment | PE82.62-D-2102AE | ||
| Z28/2 | Left rear speaker connector sleeve | Location | GF00.19-D-3001-13AA |
| Assignment | PE82.60-D-2851AB | ||
| Assignment | PE82.62-D-2102AE | ||
| Z28/3 | Right rear speaker connector sleeve | Location | GF00.19-D-3001-13AA |
| Assignment | PE82.60-D-2851AB | ||
| Assignment | PE82.62-D-2102AE | ||
| Z28/4 | Right rear speaker connector sleeve | Location | GF00.19-D-3001-13AA |
| Assignment | PE82.60-D-2851AB | ||
| Assignment | PE82.62-D-2102AE | ||
| Z28/68 | Left cockpit speaker connector sleeve | Location | GF00.19-D-3001-03AA |
| Assignment | PE82.60-D-2851AB | ||
| Assignment | PE82.62-D-2102AE | ||
| Z28/69 | Left cockpit speaker connector sleeve | Location | GF00.19-D-3001-03AA |
| Assignment | PE82.60-D-2851AB | ||
| Assignment | PE82.62-D-2102AE | ||
| Z28/70 | Right cockpit speaker connector sleeve | Location | GF00.19-D-3001-03AA |
| Assignment | PE82.60-D-2851AB | ||
| Assignment | PE82.62-D-2102AE | ||
| Z28/71 | Right cockpit speaker connector sleeve | Location | GF00.19-D-3001-03AA |
| Assignment | PE82.60-D-2851AB | ||
| Assignment | PE82.62-D-2102AE | ||
| Z28/76 | Left sliding door speaker connector sleeve | Location | GF00.19-D-3001-19AA |
| Assignment | PE82.60-D-2851AB | ||
| Assignment | PE82.62-D-2102AE | ||
| Z28/77 | Left sliding door speaker connector sleeve | Location | GF00.19-D-3001-19AA |
| Assignment | PE82.60-D-2851AB | ||
| Assignment | PE82.62-D-2102AE | ||
| Z28/78 | Right sliding door speaker connector sleeve | Location | GF00.19-D-3001-19AA |
| Assignment | PE82.60-D-2851AB | ||
| Assignment | PE82.62-D-2102AE | ||
| Z28/79 | Right sliding door speaker connector sleeve | Location | GF00.19-D-3001-19AA |
| Assignment | PE82.60-D-2851AB | ||
| Assignment | PE82.62-D-2102AE | ||
| Z28/80 | Left sliding door/rear end speaker connector sleeve | Location | GF00.19-D-3001-03AA |
| Assignment | PE82.60-D-2851AB | ||
| Assignment | PE82.62-D-2102AE | ||
| Z28/81 | Left sliding door/rear end speaker connector sleeve | Location | GF00.19-D-3001-03AA |
| Assignment | PE82.60-D-2851AB | ||
| Assignment | PE82.62-D-2102AE | ||
| Z28/82 | Right sliding door/rear end speaker connector sleeve | Location | GF00.19-D-3001-03AA |
| Assignment | PE82.60-D-2851AB | ||
| Assignment | PE82.62-D-2102AE | ||
| Z28/83 | Right sliding door/rear end speaker connector sleeve | Location | GF00.19-D-3001-03AA |
| Assignment | PE82.60-D-2851AB | ||
| Assignment | PE82.62-D-2102AE | ||
| Z30/11 | Left turn signal lamp connector sleeve | Location | GF00.19-D-3001-15AA |
| Assignment | PE54.21-D-2127AG | ||
| Z30/12 | Right turn signal lamp connector sleeve | Location | GF00.19-D-3001-15AA |
| Assignment | PE54.21-D-2127AG | ||
| Z30/13 | Left turn signal lamp connector sleeve | Location | GF00.19-D-3001-17AA |
| Assignment | PE54.21-D-2127AG | ||
| Z30/14 | Right turn signal lamp connector sleeve | Location | GF00.19-D-3001-17AA |
| Assignment | PE54.21-D-2127AG | ||
| Z36/1 | Rear sensors ground connection connector sleeve | Location | GF00.19-D-3001-16AA |
| Assignment | PE54.65-D-2101AC | ||
| Z36/2 | Rear sensors power supply connector sleeve | Location | GF00.19-D-3001-16AA |
| Assignment | PE54.65-D-2101AC | ||
| Z36/3 | Front sensors ground connection connector sleeve | Location | GF00.19-D-3001-16AA |
| Assignment | PE54.65-D-2101AC | ||
| Z36/4 | Front sensors power supply connector sleeve | Location | GF00.19-D-3001-16AA |
| Assignment | PE54.65-D-2101AC | ||
| Z36/12 | Headlamp range adjustment (HRA [LWR]) control bus connector sleeve | Location | GF00.19-D-3001-14AA |
| Assignment | PE54.21-D-2127AH | ||
| Z36/22 | Rear PARKTRONIC warning element power supply connector sleeve | Location | GF00.19-D-3001-13AA |
| Assignment | PE72.29-D-2101AD | ||
| Z36/23 | Rear PARKTRONIC warning element ground connection connector sleeve | Location | GF00.19-D-3001-13AA |
| Assignment | PE72.29-D-2101AD | ||
| Z36/24 | Rear PARKTRONIC warning element signal connector sleeve | Location | GF00.19-D-3001-13AA |
| Assignment | PE72.29-D-2101AD | ||
| Z37/73 | CAN-C low connector sleeve | Location | GF00.19-D-3001-13AA |
| Assignment | PE54.71-D-2100AA | ||
| Z37/74 | CAN-C high connector sleeve | Location | GF00.19-D-3001-13AA |
| Assignment | PE54.71-D-2100AA | ||
| Z37/75 | Fleet management system CAN bus (LOW) connector sleeve | Location | GF00.19-D-3001-13AA |
| Assignment | PE54.61-D-2101AB | ||
| Assignment with code MW1 (Engine run-on control (MWS)) | PE54.21-D-2500AE | ||
| Assignment except code CV1 (Preinstallation for snowplow connection), except code MW1 (Engine run-on control (MWS)) | PE54.21-D-2500AF | ||
| Assignment with code CV1 (Preinstallation for snowplow connection) | PE54.21-D-2500AG | ||
| Z37/76 | Fleet management system CAN bus (HIGH) connector sleeve | Location | GF00.19-D-3001-13AA |
| Assignment | PE54.61-D-2101AB | ||
| Assignment with code MW1 (Engine run-on control (MWS)) | PE54.21-D-2500AE | ||
| Assignment except code CV1 (Preinstallation for snowplow connection), except code MW1 (Engine run-on control (MWS)) | PE54.21-D-2500AF | ||
| Assignment, with code CV1 (Pre-installation for snowplow connection), except code MW1 (Engine run-on control (MWS)) | PE54.21-D-2500AG | ||
| Z37/79 | ERA-Glonass CAN bus (low) connector sleeve | Location | GF00.19-D-3001-13AA |
| Assignment | PE82.95-D-2102AA | ||
| Z37/80 | ERA-Glonass CAN bus (high) connector sleeve | Location | GF00.19-D-3001-13AA |
| Assignment | PE82.95-D-2102AA | ||
| Z38 | Backup lamp connector sleeve | Location | GF00.19-D-3001-15AA |
| Assignment | PE54.00-D-2010AH | ||
| Z38/2 | Backup lamp connector sleeve | Location | GF00.19-D-3001-13AA |
| Assignment | PE54.00-D-2010AG | ||
| Z43 | Heated rear window connector sleeve | Location | GF00.19-D-3001-15AA |
| Assignment with anti-theft alarm system (ATA [EDW]) | PE67.29-D-2000AC | ||
| Assignment without anti-theft alarm system (ATA [EDW]) | PE67.29-D-2000AD | ||
| Z43/2 | Heated rear window connector sleeve | Location | GF00.19-D-3001-15AA |
| Assignment with anti-theft alarm system (ATA [EDW]) | PE67.29-D-2000AC | ||
| Z47/15 | Rotating beacon connector sleeve | Location | GF00.19-D-3001-13AA |
| Assignment | PE82.00-D-2400AB | ||
| Z47/16 | Rotating beacon with tone sequence circuit 30 connector sleeve | Location | GF00.19-D-3001-13AA |
| Assignment | PE82.00-D-2400AB | ||
| Z47/17 | Rotating beacon with tone sequence circuit 30 connector sleeve | Location | GF00.19-D-3001-03AA |
| Assignment | PE82.00-D-2400AB | ||
| Z47/18 | Rotating beacon with tone sequence connector sleeve | Location | GF00.19-D-3001-13AA |
| Assignment | PE82.00-D-2400AB | ||
| Z47/19 | Rotating beacon with tone sequence connector sleeve | Location | GF00.19-D-3001-13AA |
| Assignment | PE82.00-D-2400AB | ||
| Z61 | Vehicle speed signal connector sleeve | Location | GF00.19-D-3001-03AA |
| Assignment | PE54.65-D-2102AE | ||
| Z67/1 | Auxiliary heater connector sleeve | Location | GF00.19-D-3001-13AA |
| Assignment | PE83.70-D-2101AL | ||
| Z78/1 | Circuit 30 connector sleeve, left closing assist | Location | GF00.19-D-3001-19AA |
| Assignment | PE72.16-D-2101AB | ||
| Z78/2 | Circuit 31 connector sleeve, left closing assist | Location | GF00.19-D-3001-19AA |
| Assignment | PE72.16-D-2101AB | ||
| Z78/3 | Circuit 30 connector sleeve, right closing assist | Location | GF00.19-D-3001-19AA |
| Assignment | PE72.16-D-2102AB | ||
| Z78/4 | Circuit 31 connector sleeve, right closing assist | Location | GF00.19-D-3001-19AA |
| Assignment | PE72.16-D-2102AB | ||
| Z78/5 | Right closing assist connector sleeve | Location | GF00.19-D-3001-19AA |
| Assignment | PE72.16-D-2102AB | ||
| Z78/6 | Left closing assist connector sleeve | Location | GF00.19-D-3001-19AA |
| Assignment | PE72.16-D-2101AB | ||
| Z81/5 | Circuit 58d connector sleeve | Location | GF00.19-D-3001-03AA |
| Assignment | PE54.00-D-2010AF | ||
| Z81/15 | Circuit 58d connector sleeve | Location | GF00.19-D-3001-13AA |
| Assignment | PE54.21-D-2127AG | ||
| Z81/16 | Terminal 58 connector sleeve | Location | GF00.19-D-3001-19AA |
| Assignment | PE54.21-D-2127AG | ||
| Z82/13 | Left sliding door central locking connector sleeve | Location | GF00.19-D-3001-19AA |
| Assignment | PE54.21-D-2127AH | ||
| Z82/14 | Right sliding door central locking connector sleeve | Location | GF00.19-D-3001-19AA |
| Assignment | PE54.18-D-2300AK | ||
| Assignment | PE54.21-D-2127AH | ||
| Z82/15 | Driver door central locking connector sleeve | Location | GF00.19-D-3001-19AA |
| Assignment | PE72.29-D-2101AD | ||
| Z82/16 | Front passenger door central locking connector sleeve | Location | GF00.19-D-3001-19AA |
| Assignment | PE54.18-D-2300AK | ||
| Assignment | PE54.21-D-2127AH | ||
| Z82/17 | Rear-end door central locking connector sleeve | Location | GF00.19-D-3001-19AA |
| Assignment | PE54.18-D-2300AP | ||
| Assignment | PE54.21-D-2127AG | ||
| Z85/4 | Ground connection connector sleeve for oxygen sensor in catalytic converter | Location | GF00.19-D-3001-14AA |
| Assignment | PE07.61-D-2101AG | ||
| Z87/40 | Backup camera microphone connector sleeve | Location | GF00.19-D-3001-15AA |
| Assignment | PE54.65-D-2102AE | ||
| Z87/41 | Backup monitor microphone connector sleeve | Location | GF00.19-D-3001-03AA |
| Assignment | PE54.65-D-2102AE | ||
| Z94 | Stop lamp switch connector sleeve | Location | GF00.19-D-3001-17AA |
| Assignment | PE54.00-D-2010AI | ||
| Z103/6 | Interior lights connector sleeve | Location | GF00.19-D-3001-13AA |
| Assignment | PE82.20-D-2000AD | ||
| Z103/8 | Interior lights ON connector sleeve | Location | GF00.19-D-3001-13AA |
| Assignment | PE82.20-D-2000AD | ||
| Z103/9 | Interior lights/contact switch (door) connector sleeve | Location | GF00.19-D-3001-13AA |
| Assignment | PE82.20-D-2000AD | ||
| Z117 | Heated windshield connector sleeve | Location | GF00.19-D-3001-17AA |
| Assignment | PE67.10-D-2000AB | ||
| Z129 | Dumper vehicle connector sleeve | Location | GF00.19-D-3001-03AA |
| Assignment | PE55.20-D-2000AB | ||
| Z129/2 | Dumper vehicle connector sleeve | Location | GF00.19-D-3001-13AA |
| Assignment | PE55.20-D-2000AB | ||
| Z131 | Identification lamp connector sleeve | Location | GF00.19-D-3001-13AA |
| Assignment | PE54.18-D-2300AP | ||
| Z151 | Blower motor connector sleeve | Location | GF00.19-D-3001-14AA |
| Assignment with code H13 (Additional heat exchanger in passenger/load compartment), with code HH2 (Electric auxiliary air heater) | PE83.25-D-2101AB | ||
| Assignment with code H12 (Auxiliary heater (warm water)) | PE83.70-D-2101AJ | ||
| Z162 | Blower motor connector sleeve | Location | GF00.19-D-3001-14AA |
| Assignment with code H13 (Additional heat exchanger in passenger/load compartment), with code HH2 (Electric auxiliary air heater) | PE83.25-D-2101AB | ||
| Assignment with code H08 (Heavy-duty roof air conditioner), with code HH2 (Electric auxiliary air heater), with code HH7 (Basic roof air conditioner) | PE83.40-D-2101AD | ||
| Assignment with code H18 (Additional heat exchanger for bus seating) | PE83.40-D-2101AE | ||
| Z203/3 | Connector sleeve/LIN bus | Location | GF00.19-D-3001-14AA |
| Assignment engine 651 except code MH5 (Assignment of low-emission engine EPA 14/CARB) | PE15.00-D-2000AO | ||
| Assignment engine 651 with code MH5 (Assignment of low-emission engine EPA 14/CARB) | PE15.00-D-2000AT | ||
| Assignment with engine 642 with code MH3 (Low-emission engine EPA 13/CARB) | PE07.16-D-2101AU | ||
| Assignment with engine 651 with code MH5 (Low-emission engine EPA 14/CARB) | PE07.16-D-2101AX | ||
| Assignment with engine 642 with code MH7 (Low-emission engine EPA 16/CARB) | PE07.16-D-2101AZ | ||
| Z219 | Signaling horn actuation connector sleeve | Location | GF00.19-D-3001-13AA |
| Assignment | PE54.00-D-2010AG | ||
| Z221/1 | 2nd refrigerant compressor connector sleeve | Location | GF00.19-D-3001-03AA |
| Assignment | PE83.40-D-2101AD | ||
| Z223 | Retarder connector sleeve | Location | GF00.19-D-3001-13AA |
| Assignment | PE43.40-D-2000AB | ||
| Z227/1 | Right step connector sleeve | Location | GF00.19-D-3001-13AA |
| Assignment | PE72.16-D-2000AC | ||
| Z227/2 | Left step connector sleeve | Location | GF00.19-D-3001-13AA |
| Assignment | PE72.16-D-2000AC | ||
| Z228 | Fuel pump diode connector sleeve | Location | GF00.19-D-3001-13AA |
| Assignment with engine 642 with code MH3 (Low-emission engine EPA 13/CARB) | PE07.16-D-2101AT | ||
| Assignment, with engine 642 with code MH7 (Low-emission engine EPA 16/CARB) | PE07.16-D-2101AZ | ||
| Z233 | FleetBoard signal connector sleeve | Location | GF00.19-D-3001-13AA |
| Assignment | PE82.85-D-2103AC | ||
| Location of Z-connector sleeves (line connections in wiring harness) - cockpit | GF00.19-D-3001-03AA | ||
| Location of Z-connector sleeves (line connections in wiring harness) - Vehicle interior | GF00.19-D-3001-13AA | ||
| Location of Z-connector sleeves (line connections in wiring harness) - Engine compartment | GF00.19-D-3001-14AA | ||
| Location of Z-connector sleeves (line connections in wiring harness) - Rear end | GF00.19-D-3001-15AA | ||
| Location of Z-connector sleeves (line connections in wiring harness) - Bumper | GF00.19-D-3001-16AA | ||
| Location of Z-connector sleeves (line connections in wiring harness) - Left footwell | GF00.19-D-3001-17AA | ||
| Location of Z-connector sleeves (line connections in wiring harness) - Doors | GF00.19-D-3001-19AA |
