Remove/Install Tank Flap - Ar88.60-D-6023SD

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2018 Mercedes-Benz Sprinter 3500XD, 2018 Mercedes-Benz Sprinter 3500, 2018 Mercedes-Benz Sprinter 2500, 2017 Mercedes-Benz Sprinter 3500XD, and 2017 Mercedes-Benz Sprinter 3500. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 906

Courtesy of MERCEDES-BENZ USA

	Remove/install

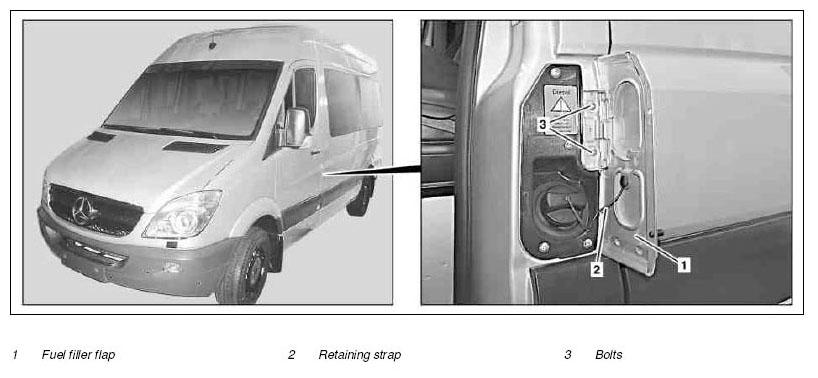

1	Open fuel filler flap (1)
2	Unclip retaining strap (2) from fuel filler flap (1).
3	Remove screws/bolts (3)
4	Remove fuel filler flap (1).
5	Install in the reverse order
