Remove/Install Soundproofing On Engine Hood - Ar88.40-D-2545H

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2018 Mercedes-Benz Sprinter 3500XD, 2018 Mercedes-Benz Sprinter 3500, 2018 Mercedes-Benz Sprinter 2500, 2017 Mercedes-Benz Sprinter 3500XD, and 2017 Mercedes-Benz Sprinter 3500. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 906

Courtesy of MERCEDES-BENZ USA

	Remove/install
	Risk of injury caused by fingers being pinched or crushed when removing, installing or aligning hoods, doors, trunk lids, liftgates or sliding roof	Keep body parts and limbs well clear of moving parts.	AS00.00-Z-0011-01A

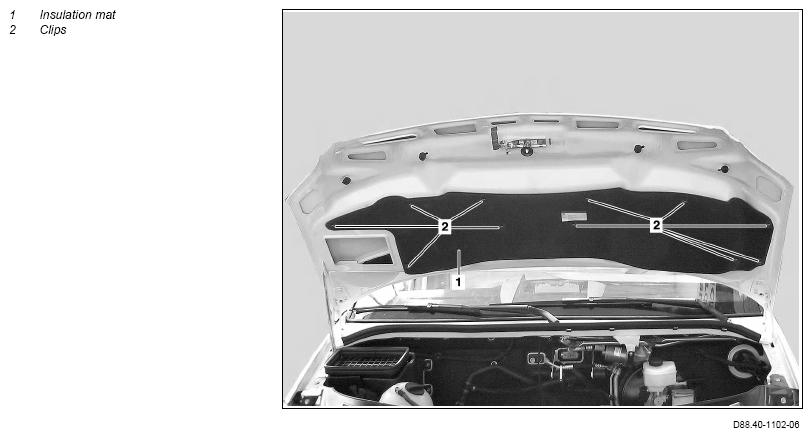

1	Remove clips (2)	Check clips (2) for damage, replace if necessary.
2	Remove insulation mat (1) from engine hood
3	Install in the reverse order
