Remove/Install Moldings - Ar88.80-D-1040H

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2018 Mercedes-Benz Sprinter 3500XD, 2018 Mercedes-Benz Sprinter 3500, 2018 Mercedes-Benz Sprinter 2500, 2017 Mercedes-Benz Sprinter 3500XD, and 2017 Mercedes-Benz Sprinter 3500. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 906

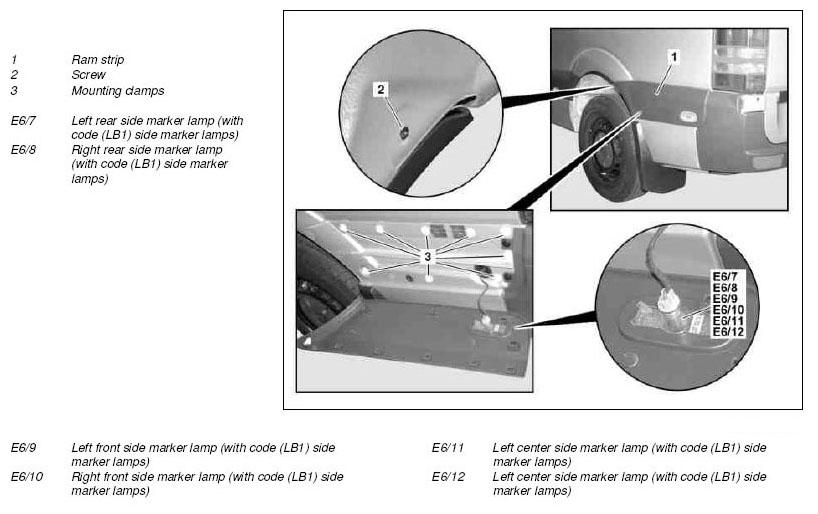

Shown on left cable protective strip (1) with code (LB1) side marker lamps

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Unscrew bolt (2)	Only on protective strips (1) in front of and behind wheel arch
2	Unclip protective strip (1) with long wedge	Check condition of mounting clips (3), replace if necessary.
2	Unclip protective strip (1) with long wedge	Long wedge	Fig 1
3	Remove lamp socket together with bulb from side marker lamp (E6/7, E6/8, E6/9, E6/10, E6/11, E6/12)	With code (LB1) side marker lamps
4	Remove protective strip (1)
5	Install in the reverse order

Fig 1: Long Wedge (115 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
