Remove/Install Front Grille - Ar88.00-D-2115SE

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2018 Mercedes-Benz Sprinter 3500XD, 2018 Mercedes-Benz Sprinter 3500, 2018 Mercedes-Benz Sprinter 2500, 2017 Mercedes-Benz Sprinter 3500XD, and 2017 Mercedes-Benz Sprinter 3500. However, it is still accessible from the selected car via links, so may be relevant.

Model 906 with code ZX8 (Dodge execution) except code XM0 (Facelift)

Model 906 with code ZX9 (Freightliner execution) except code XM0 (Facelift)

Courtesy of MERCEDES-BENZ USA

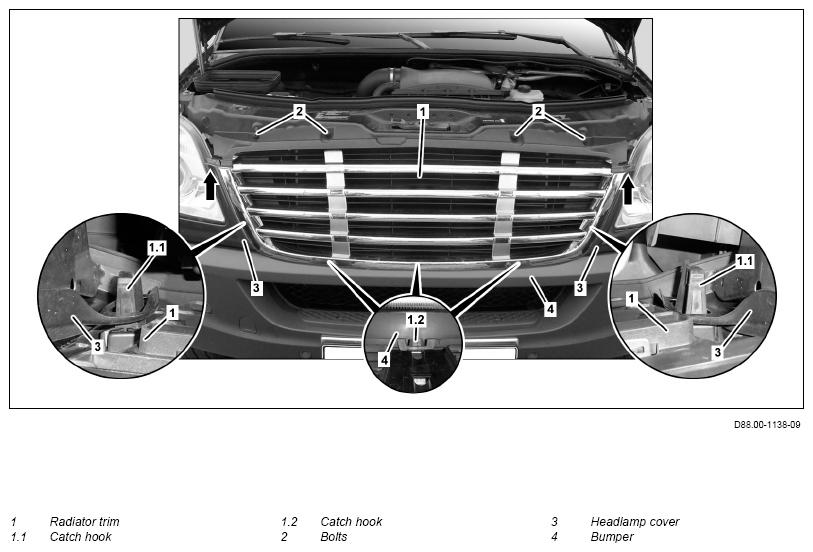

Shown vehicle with code (ZX9) Freightliner (FTL) brand scope

	Remove/install
1	Unscrew bolts (2) from front grille (1) and pull front grille (1) in upper area toward front until the catch hooks (1.1) on the front grille (1) are accessible.	Carefully pull front grille (1) in upper area toward front to prevent catch hooks (1.1) from breaking off.
2	Press catch hooks (1.1) on front grille (1) together on left and right side of vehicle and guide front grille (1) out of headlamp trims (3)	Ensure that catch hooks (1.1) are seated correctly on headlamp trims (3).
3	Unclip catch hooks (1.2) on front grille (1) from bumper (4) and remove front grille (1) toward front.	Align front grille (1) in relation to headlamp trims (3) in area of arrows. Ensure that catch hooks (1.2) are seated correctly on bumper (4).
4	Install in the reverse order
