Remove/Install Front Grille - Ar88.00-D-2115SD

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2018 Mercedes-Benz Sprinter 3500XD, 2018 Mercedes-Benz Sprinter 3500, 2018 Mercedes-Benz Sprinter 2500, 2017 Mercedes-Benz Sprinter 3500XD, and 2017 Mercedes-Benz Sprinter 3500. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 906 without CODE XM0 (Facelift) without CODE ZX8 (Dodge brand scope) without CODE ZX9 (Freightliner (FTL) brand scope)

Courtesy of MERCEDES-BENZ USA

	Remove/install

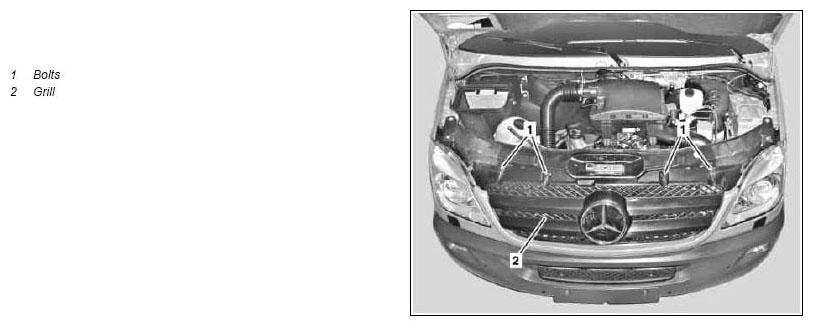

1	Remove bolts (1)
2	Remove front grill (2) upward	Ensure that front grill (2) is seated correctly.
3	Install in the reverse order
