Remove/Install Engine Hood Catch - Ar88.40-D-3200H

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2018 Mercedes-Benz Sprinter 3500XD, 2018 Mercedes-Benz Sprinter 3500, 2018 Mercedes-Benz Sprinter 2500, 2017 Mercedes-Benz Sprinter 3500XD, and 2017 Mercedes-Benz Sprinter 3500. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 906

Courtesy of MERCEDES-BENZ USA

	Remove/install
	Risk of injury caused by fingers being pinched or crushed when removing, installing or aligning hoods, doors, trunk lids, liftgates or sliding roof	Keep body parts and limbs well clear of moving parts.	AS00.00-Z-0011-01A

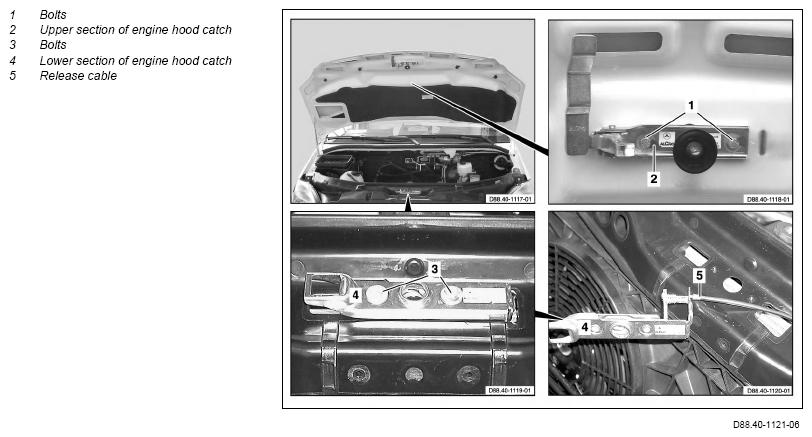

1	Remove bolts (1)	Mark installation position of engine hood catch top section (2) on engine hood
			*BA88.40-N-1005-01A
2	Remove engine hood lock top section (2)	Replace sluggish engine hood top section (2) (do not grease or lubricate). Otherwise malfunction can occur.
3	Remove screws/bolts (3)	Mark installation position of engine hood catch bottom section (4) on upper crossmember front module.
			*BA88.40-N-1006-01A
4	Remove engine hood catch bottom section (4) with retaining plate.	Replace sluggish engine hood top section (4) (do not grease or lubricate). Otherwise malfunction can occur.
5	Unhook release cable (5) from engine hood catch lower section (4).
6	Install in the reverse order
	Checking
7	Check whether engine hood catch top section (2) and engine hood catch bottom section (4) locks properly, adjust if necessary	Close engine hood and pull upward with a slight jerk. Unlock engine hood and check whether safety hook arrests on upper crossmember front module.

ENGINE HOOD

Number	Designation		Model 906
BA88.40-N-1005-01A	Bolt, engine hood catch top section to engine hood	Nm	10
BA88.40-N-1006-01A	Bolt, engine hood lock bottom section to front end	Nm	10
