Remove/Install Air Inlet Grille On Engine Hood - Ar88.40-D-3001H

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2018 Mercedes-Benz Sprinter 3500XD, 2018 Mercedes-Benz Sprinter 3500, 2018 Mercedes-Benz Sprinter 2500, 2017 Mercedes-Benz Sprinter 3500XD, and 2017 Mercedes-Benz Sprinter 3500. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 906

Courtesy of MERCEDES-BENZ USA

	Remove/install

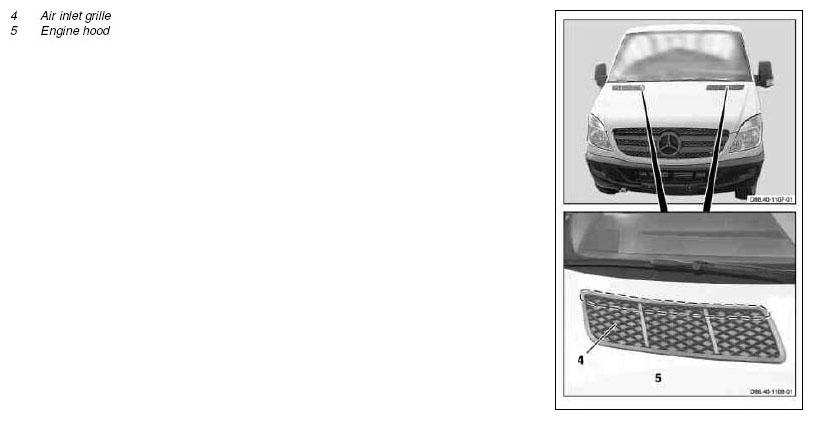

1	Unclip air inlet grate (4) (marking)	Long wedge	Fig 1
2	Remove air inlet grille (4) form engine hood (5).	Do not replace air inlet grilles (4). Left and right air inlet grilles (4) are different.
3	Install in the reverse order

Fig 1: Long Wedge (115 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
