Drill Holes And Install Bracket For Curb Mirror - Ar88.70-D-9001-02A

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2018 Mercedes-Benz Sprinter 3500XD, 2018 Mercedes-Benz Sprinter 3500, 2018 Mercedes-Benz Sprinter 2500, 2017 Mercedes-Benz Sprinter 3500XD, and 2017 Mercedes-Benz Sprinter 3500. However, it is still accessible from the selected car via links, so may be relevant.

Model 906 with code Z41 (Registration as a truck)

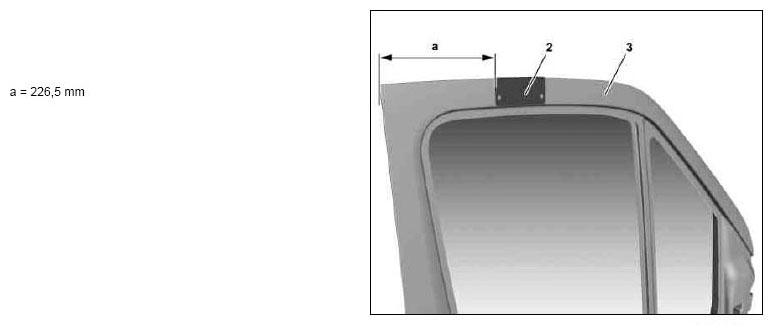

Position bracket (2) on hinged door (3) and align.
Dimensions:

a = 226, 5 mm
Fix bracket (2) on hinged door (3) in place with adhesive tape.

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

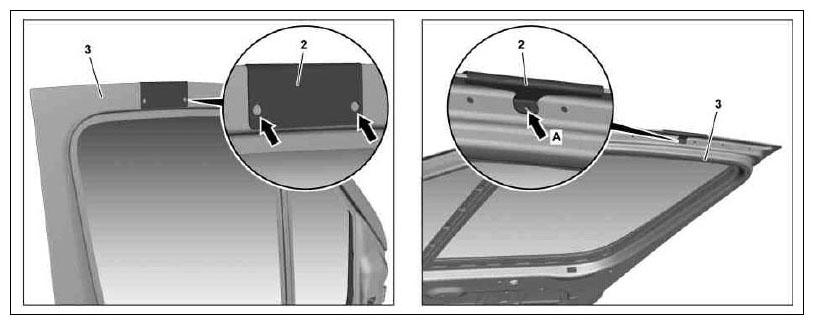

Mark position of rivet holes on hinged door (3) (arrows and arrow A).
Remove bracket (2) from hinged door (3).
Drill Ø 4.5 mm rivet hole in hinged door (3) (arrow A).
Drill Ø 9 mm rivet holes for pull-in nuts on hinged door (3) (arrows).
Deburr rivet holes (arrows and arrow A) on hinged door (3) on both sides.
Remove drilling chips.
Apply primer to edges on rivet holes on hinged door (3) (arrows and arrow A).
Use only approved primer from Daimler AG:

http://xentryportal.mercedes-benz.com
Position bracket (2) on hinged door (3).
Rivet bracket (2) with Ø 4x9.45 rivet (arrow A).
Rivet bracket (2) with pull-in nuts M6x15, 7 (arrows).
