Disconnect/Connect Electrical Lines For Removal Of Front Module From Top - Ar88.30-D-1064-02SD

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2018 Mercedes-Benz Sprinter 3500XD, 2018 Mercedes-Benz Sprinter 3500, 2018 Mercedes-Benz Sprinter 2500, 2017 Mercedes-Benz Sprinter 3500XD, and 2017 Mercedes-Benz Sprinter 3500. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 906 with ENGINE 642, 651

Shown on model 906 without CODE XM0 (Model refinement)

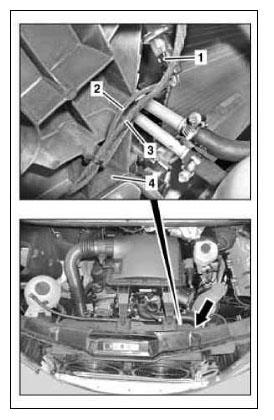

Disconnect electrical connector (arrow) and unclip electric wiring harness (3) from front module (4).
with code (FY1) ATA 2 with interior protection, tow-away protection and rechargeable horn, with code (FZ4) Antitheft alarm system with interior protection and tow-away protection or with code (MJ7) ECO start.
Disconnect electrical connector (1) and unclip electric wiring harness (2) from front module (4).
For code (HH9) Regulated air conditioning, (Tempmatic).

Courtesy of MERCEDES-BENZ USA

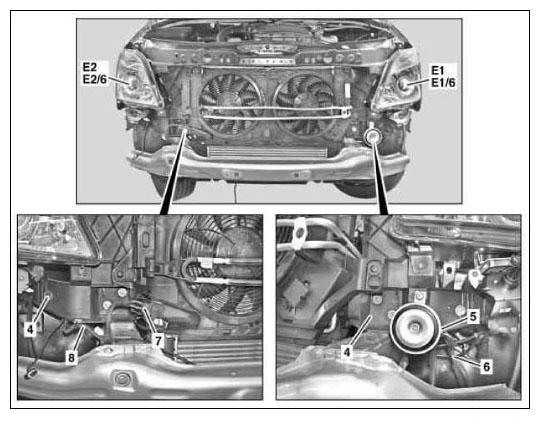

Disconnect electrical connector (5) and unclip electric wiring harness (6) from front module (4).
Not on engine 642 and vehicles with CODE XM0 (Model refinement).
Disconnect electrical connector (7) and unclip electric wiring harness (8) from front module (4).
Disconnect electrical connectors from left lamp unit (E1) and right lamp unit (E2) or left XENON lamp unit (E16) and right XENON lamp unit (E26).

Courtesy of MERCEDES-BENZ USA

Left XENON lamp unit (E1/6) and right XENON lamp unit (E2/6) on model 906 with code (LG0) Bi-xenon headlamp or with code (LG1) Bi-Xenon headlamp with cornering illumination.

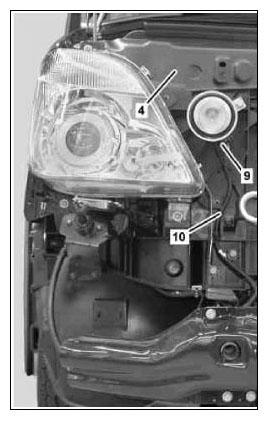

Disconnect electrical connector (9) from horn and expose electrical wiring harness (10) from front grille (4).
On engine 642 and vehicles with CODE XM0 (Model refinement).

Courtesy of MERCEDES-BENZ USA
