Subsequently Refinish Step - An88.30-D-0007-02S

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2018 Mercedes-Benz Sprinter 3500XD, 2018 Mercedes-Benz Sprinter 3500, 2018 Mercedes-Benz Sprinter 2500, 2017 Mercedes-Benz Sprinter 3500XD, and 2017 Mercedes-Benz Sprinter 3500. However, it is still accessible from the selected car via links, so may be relevant.

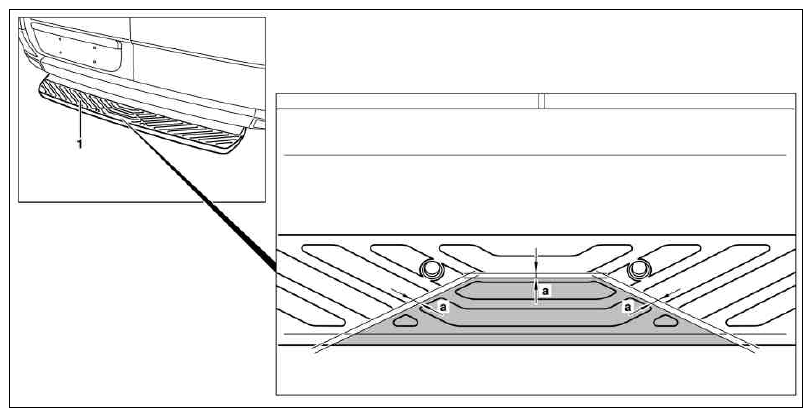

G10890574Courtesy of MERCEDES-BENZ USA
  1. Mark reference edge at outer edge of corrugation on board (1) as shown.
  2. Transfer dimension (a) on reference edge and mark.
  3. Saw out marked cutout.
  4. Deburr edges.
  5. Subsequently clip on paneling

Dimensions:

a 7 mm
