Outside Mirror, Component Description - GF88.79-D-4003H
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2018 Mercedes-Benz Sprinter 3500XD, 2018 Mercedes-Benz Sprinter 3500, 2018 Mercedes-Benz Sprinter 2500, 2017 Mercedes-Benz Sprinter 3500XD, and 2017 Mercedes-Benz Sprinter 3500. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 906
Location

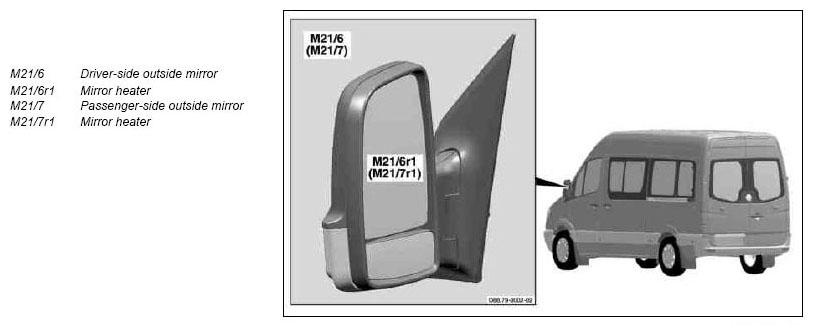

The outside mirrors are located at the front of the corresponding front door.
Task
The outside mirrors allow visual traffic monitoring to rear, display of turn signaling and display of status of blind spot assist (TWA) (with code (JA7) Blind spot assist).
Body
The following components are installed in the driver outside mirror:
- Driver outside mirror turn signal lamp (M21/6e1)
- Mirror adjustment raise/lower motor (M21/6m1)
- Mirror adjustment in/out motor (M21/6m2)
- Mirror heater

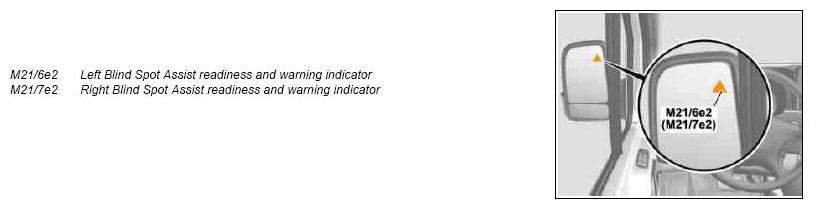

- Left blind spot assist readiness and warning indicator (with code (JA7) Blind spot assist)
The following components are installed in the passenger outside mirror:
- Passenger outside mirror turn signal lamp (M21/7e1)
- Mirror adjustment raise/lower motor (M21/7m1)
- Mirror adjustment in/out motor (M21/7m2)
- Mirror heater
- Right blind spot assist readiness and warning indicator (with code (JA7) Blind spot assist)
The components are actuated directly by the left front door control unit (N69/1).
