Outside Mirror Adjustment Switch, Component Description - GF88.79-D-4110H

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2018 Mercedes-Benz Sprinter 3500XD, 2018 Mercedes-Benz Sprinter 3500, 2018 Mercedes-Benz Sprinter 2500, 2017 Mercedes-Benz Sprinter 3500XD, and 2017 Mercedes-Benz Sprinter 3500. However, it is still accessible from the selected car via links, so may be relevant.

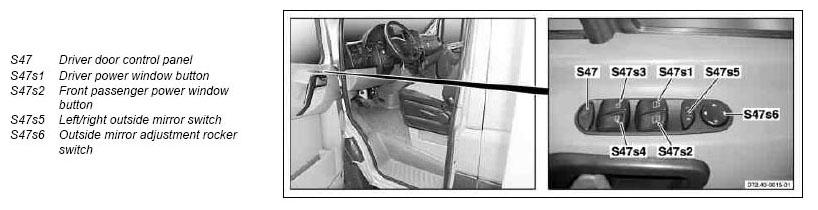

MODEL 906 with CODE (F68) Heated and electrically adjustable left and right outside mirrors

Shown with code (W32) Electric vent windows in rear passenger compartment

Courtesy of MERCEDES-BENZ USA

Location

The left/right outside mirror switch and the outside mirror adjustment rocker switch are integrated into the driver door control panel located inside on the driver door.

Task

When the left/right outside mirror switch is in the left position, the driver-side outside mirror (M21/6) is adjusted; or when in the right position, the front passenger-side outside mirror (M21/7) is adjusted. The mirror lens on the driver-side outside mirror or on the passenger-side outside mirror can then be adjusted vertically or horizontally with the outside mirror adjustment rocker switch depending on the mirror selected.
