Outside Mirror Adjustment Motor, Component Description - GF88.79-D-4111H
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2018 Mercedes-Benz Sprinter 3500XD, 2018 Mercedes-Benz Sprinter 3500, 2018 Mercedes-Benz Sprinter 2500, 2017 Mercedes-Benz Sprinter 3500XD, and 2017 Mercedes-Benz Sprinter 3500. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 906 with CODE (F68) Heated and electrically adjustable left and right outside mirrors

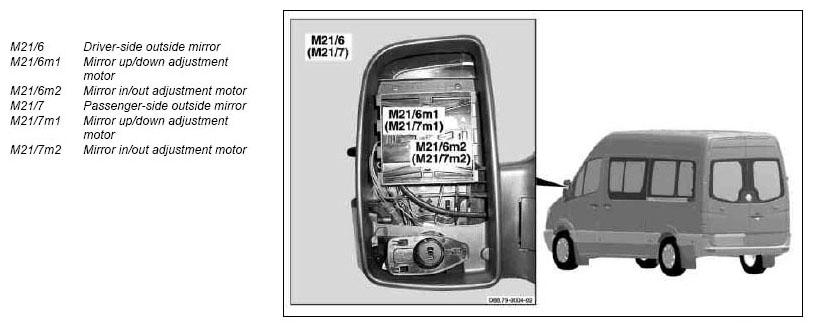

Illustrated on left side of vehicle
Location
The mirror up/down adjustment motor and the mirror in/out adjustment motor are located in the housing of the driver-side outside mirror and in the housing of the passenger-side outside mirror.
Task
The left outside mirror lens is adjusted vertically or horizontally with the mirror up/down adjustment motor and the mirror in/out adjustment motor in the driver-side outside mirror.
The right outside mirror lens is adjusted vertically and horizontally with the mirror up/down adjustment motor and the mirror in/out adjustment motor in the passenger-side outside mirror.
