| A0 |
Color code key |
152L |
| B11/17 |
Coolant temperature sensor |
123L |
| B16/12 |
Temperature sensor upstream of SCR catalytic converter |
60L |
| B16/12x1 |
Electrical connector, temperature sensor upstream of SCR catalytic converter |
60J |

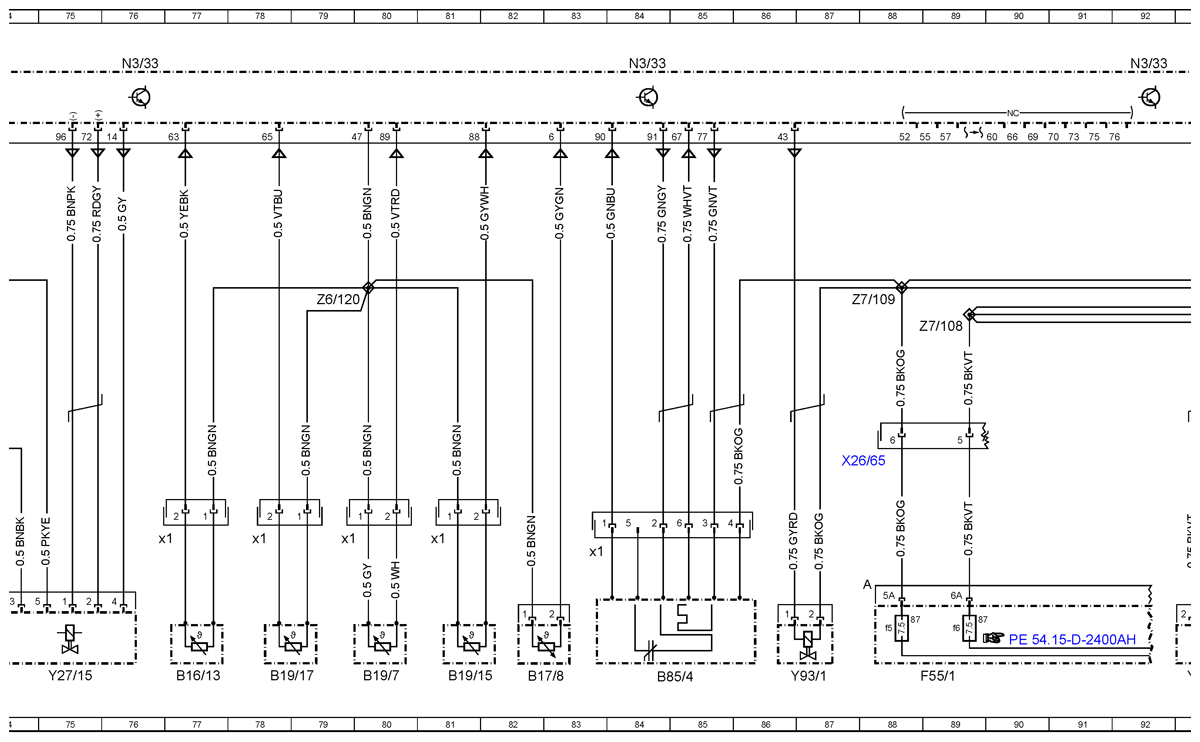

| B16/13 |
Temperature sensor upstream of turbocharger |
107L |
| B16/13x1 |
Electrical connector for temperature sensor upstream of turbocharger |
107J |
| B17/13 |
Charge air temperature sensor |
110L |

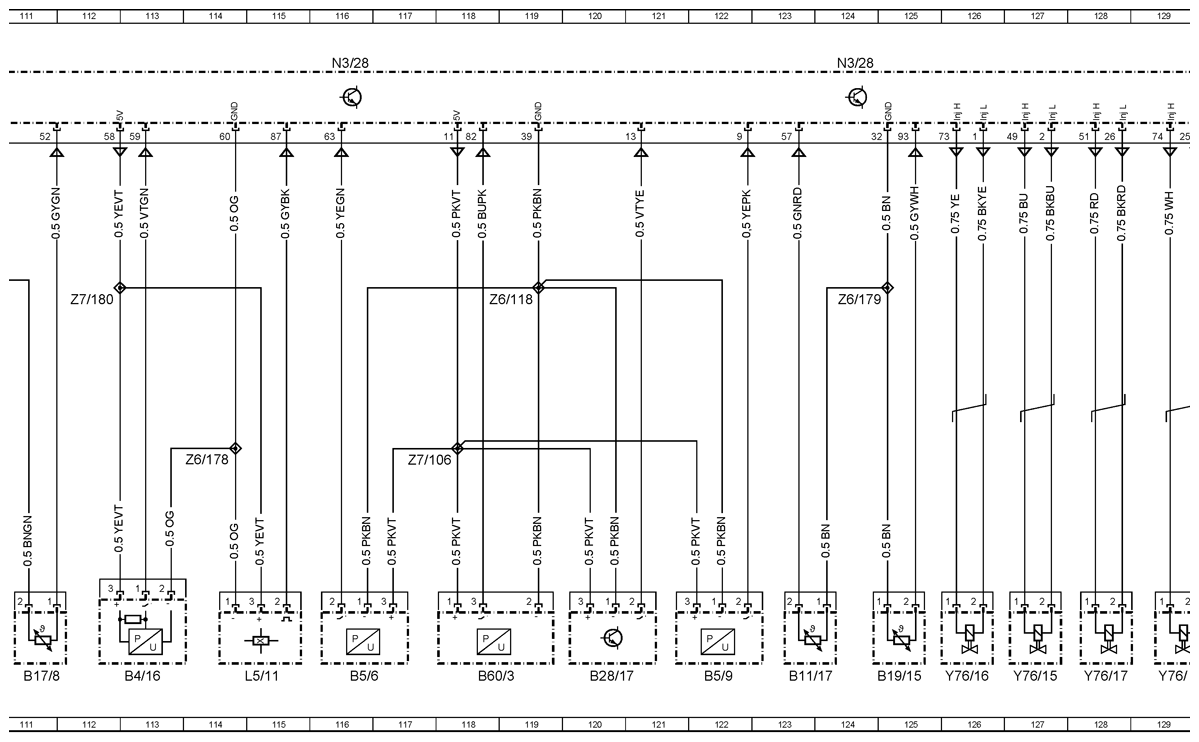

| B17/8 |
Temperature sensor upstream of charge air cooler |
111L |
| B19/15 |
Exhaust gas recirculation cooler temperature sensor |
125L |

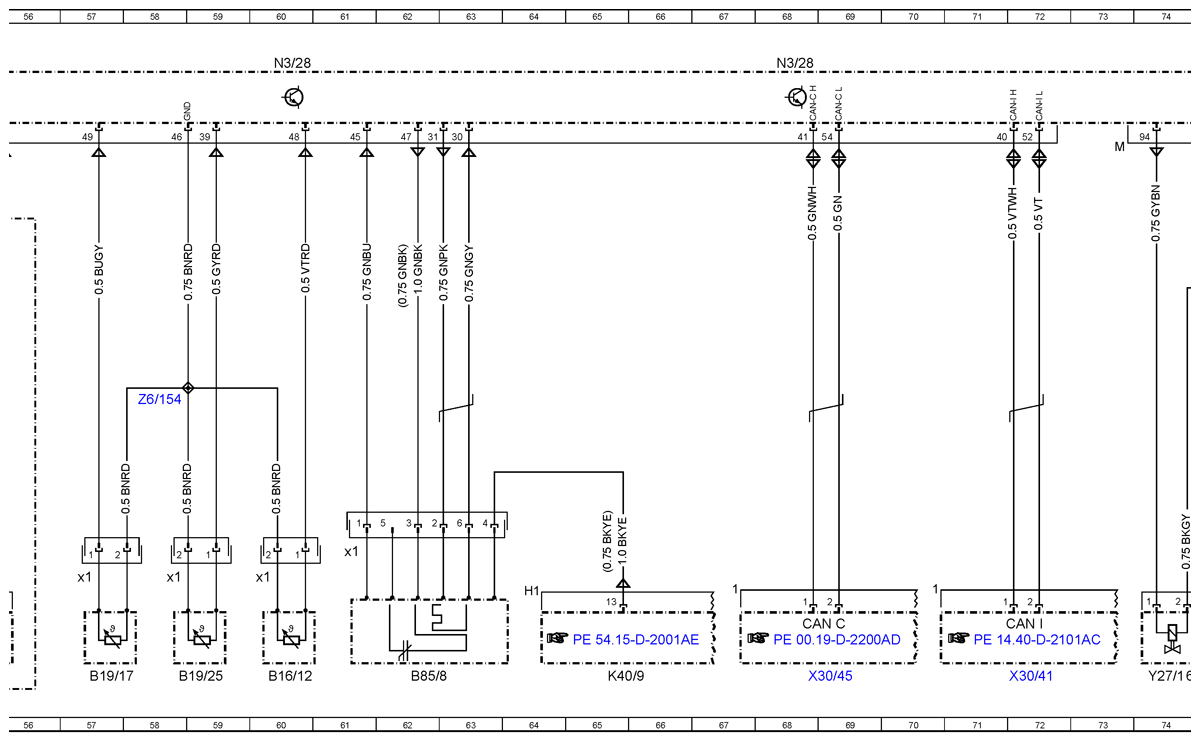

| B19/17 |
Temperature sensor upstream of diesel particulate filter |
57L |
| B19/17x1 |
Electrical connector for temperature sensor upstream of diesel particulate filter |
57J |
| B19/25 |
Temperature sensor upstream of catalytic converter |
59L |
| B19/25x1 |
Electrical connector for temperature sensor upstream of catalytic converter |
58J |
| B2/12 |
Hot film mass air flow sensor |
85L |
| B28/17 |
Intake manifold pressure sensor |
120L |
| B28/18 |
Diesel particulate filter differential pressure sensor |
47L |
| B37/3 |
Accelerator pedal module |
51L |
| B4/16 |
Rai I pressure sensor |
113L |
| B40/6 |
Engine oil level sensor |
103L |
| B40/9 |
Engine oil temperature sensor |
106L |
| B5/6 |
Boost pressure sensor |
116L |
| B5/9 |
Low-pressure turbocharger boost pressure sensor |
122L |
| B50/5 |
Fuel temperature sensor |
109L |
| B6/23 |
Rpm sensor |
105L |
| B60/3 |
Exhaust back pressure sensor |
118L |
| B79/2 |
Transmission neutral position sensor |
43L |
| B85/8 |
Oxygen sensor |
62L |
| B85/8x1 |
Oxygen sensor electrical connector |
61J |
| Code E34 |
Buffer battery for starting procedure |
30H |
| Code GD8 |
ECO Gear 360 6-speed manual transmission |
41D |
| Code GD9 |
ECO Gear 480 6-speed manual transmission |
41D |
| Code KP1 |
Fuel pump, electric, controlled |
21D |
| Code KP3 |
Fuel pump, electric, controlled, stage 2 |
21D |
| Code M46 |
Alternator 14 V/220 A |
134H |
| Code M46 |
Alternator 14 V/220 A |
131H |
| Code MJ8 |
ECO start/stop function |
131G |
| Code MSO |
Radiator fan, electric |
29F |
| F55/1 |
Fuse block (1, 9-pin) |
90L |
| F55/1f5 |
Motors terminal 87 (5) fuse 5 |
88K |
| F55/1f6 |
Motors terminal 87 (6) fuse 6 |
89K |

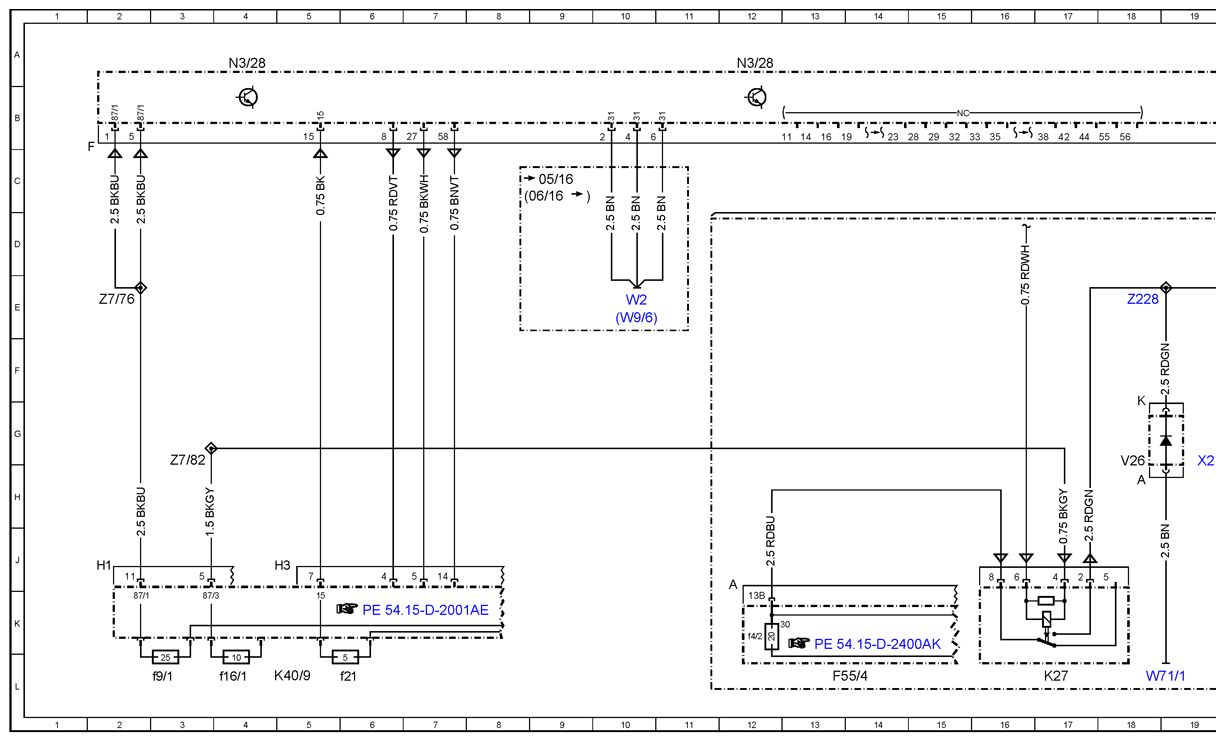

| F55/4 |
Fuse block 4 (9-pin) |
13L |
| F55/4f4/2 |
Fuel pump fuse 13 |
12K |
| F59 |
Fuse box |
149L |
| F59 |
Fuse box |
37L |
| F59.1 |
Fuse, circuit 30 preglowing relay/secondary air injection pump |
149K |
| F59.2 |
Fuse, circuit 30 air conditioning additional fan |
35K |
| F59/8 |
Fuse box |
131L |
| F59/8 |
Fuse box |
32L |
| F59/8.14 |
Fuse, circuit 30 air conditioning additional fan |
30K |
| F59/8.18 |
Alternator fuse |
131K |

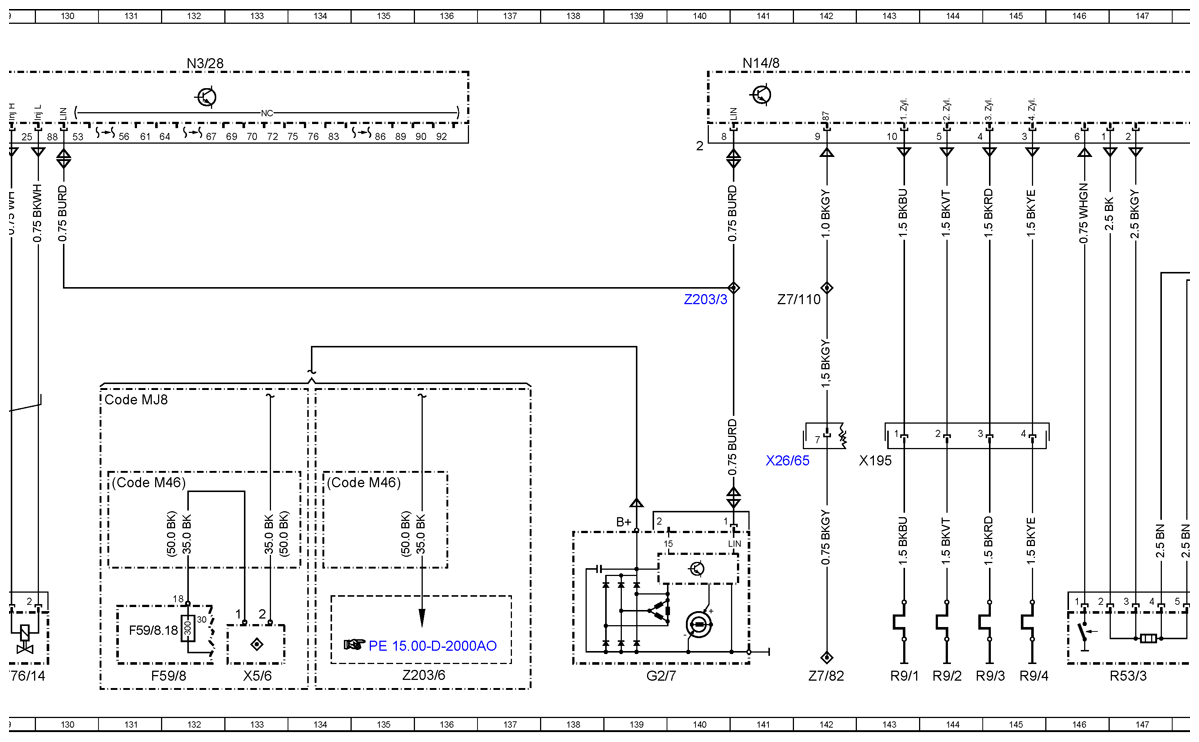

| G2/7 |
Alternator with LIN bus |
139L |
| K27 |
Fuel pump relay |
17L |

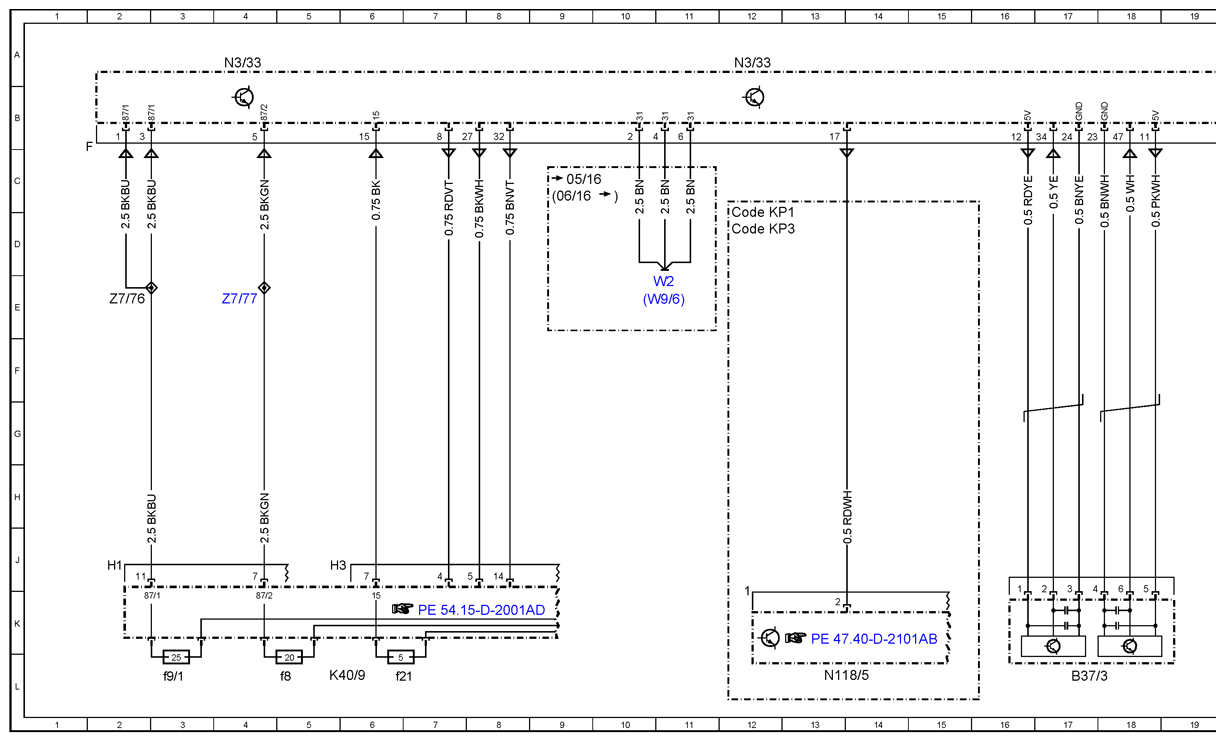

| K40/9 |
Fuse and relay module |
65L |
| K40/9 |
Fuse and relay module |
5L |
| K40/9f16/1 |
Circuit 87 (3) engine control fuse |
- |
| K40/9f21 |
Circuit 15 engine control unit fuse |
6L |
| K40/9f9/1 |
Circuit 87 (1) engine control fuse |
3L |

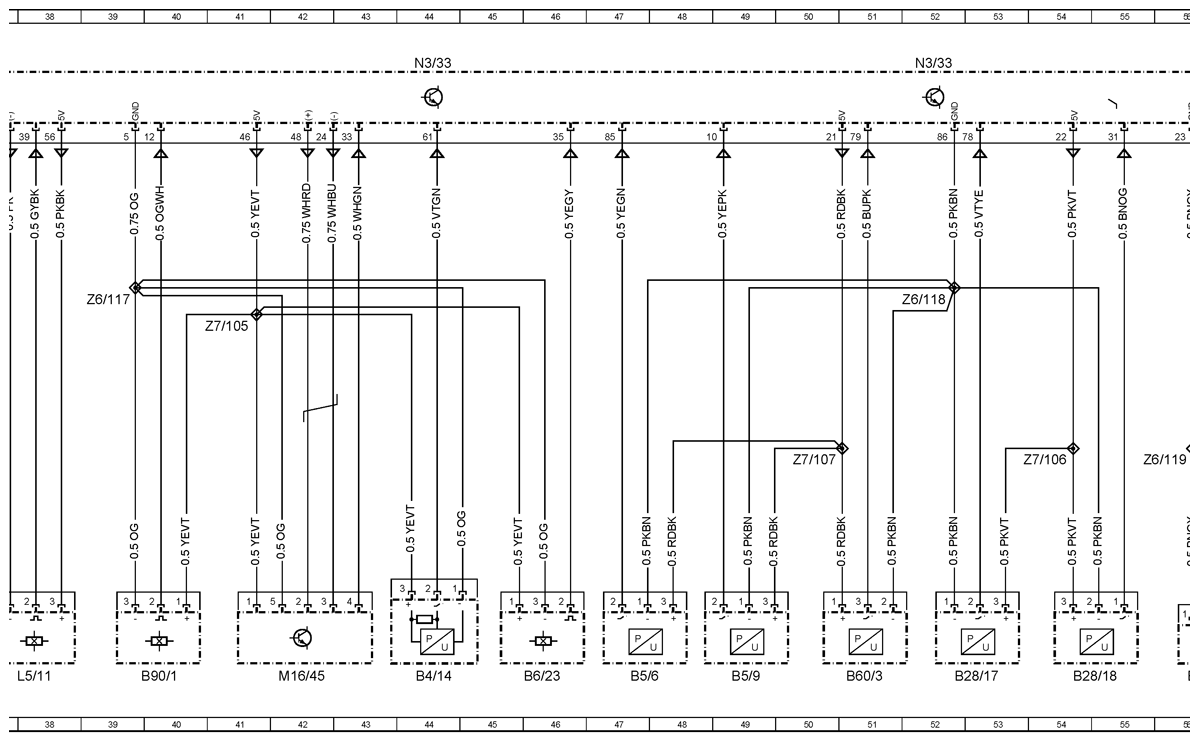

| L5/11 |
Crankshaft position sensor |
115L |
| M16/45 |
Throttle valve actuator |
98L |
| M3/5 |
Fuel pump with fill level sensor |
20L |

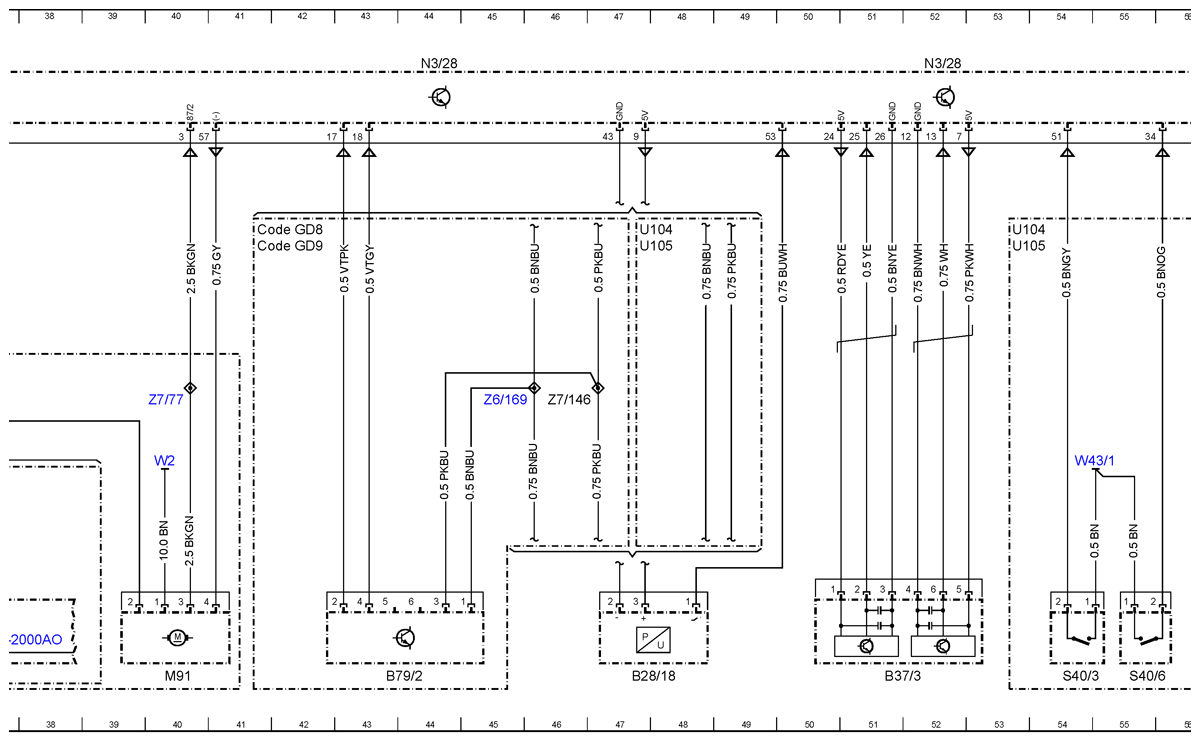

| M91 |
Electric fan |
40L |
| N10 |
SAM control unit |
27L |
| N118/5 |
Fuel pump control unit |
23L |

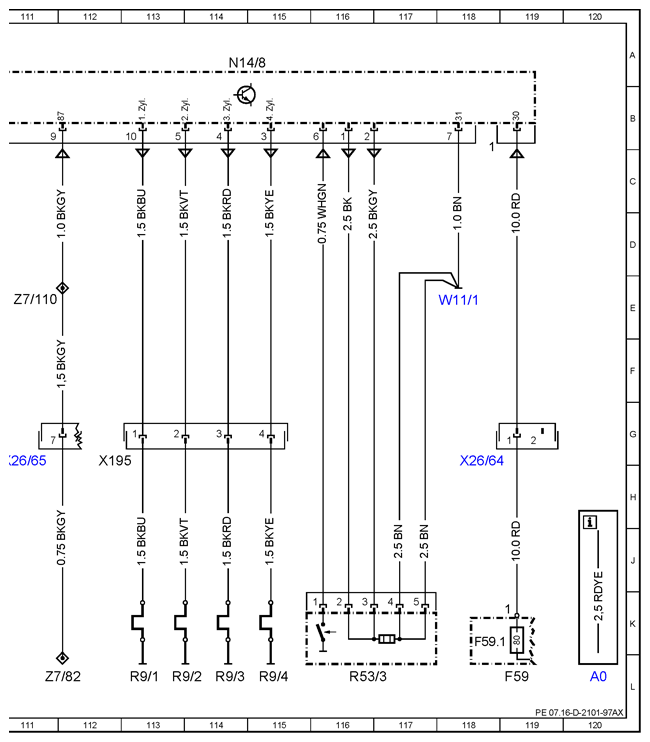

| N14/8 |
Glow output stage |
141A |
| N14/8 |
Glow output stage |
149A |
| N3/28 |
CDI control unit |
4A |
| N3/28 |
CDI control unit |
12A |
| N3/28 |
CDI control unit |
20A |
| N3/28 |
CDI control unit |
28A |
| N3/28 |
CDI control unit |
44A |
| N3/28 |
CDI control unit |
52A |
| N3/28 |
CDI control unit |
60A |
| N3/28 |
CDI control unit |
68A |
| N3/28 |
CDI control unit |
76A |
| N3/28 |
CDI control unit |
84A |
| N3/28 |
CDI control unit |
92A |
| N3/28 |
CDI control unit |
100A |
| N3/28 |
CDI control unit |
108A |
| N3/28 |
CDI control unit |
116A |
| N3/28 |
CDI control unit |
124A |
| N3/28 |
CDI control unit |
132A |
| N3/28 |
CDI control unit |
36A |
| R39/7 |
Vent line heater element |
77L |

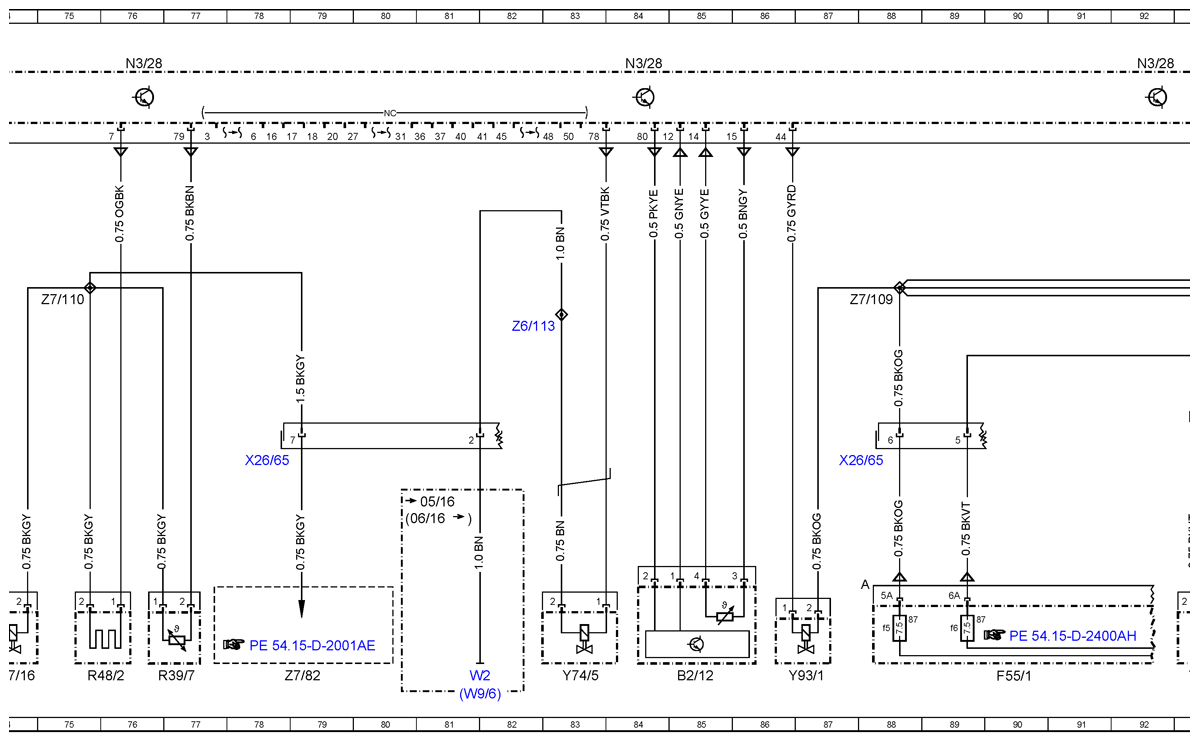

| R48/2 |
Thermostat heating element |
75L |
| R53/3 |
Fuel filter heater with condensation sensor |
147L |
| R9/1 |
Cylinder 1 glow plug |
143L |
| R9/2 |
Cylinder 2 glow plug |
144L |
| R9/3 |
Cylinder 3 glow plug |
145L |
| R9/4 |
Cylinder 4 glow plug |
145L |
| S40/3 |
Clutch pedal switch |
54L |
| S40/6 |
Clutch pedal switch |
55L |
| U104 |
Valid without code G40 (Automatic transmission) |
53D |
| U104 |
Valid without code G40 (Automatic transmission) |
47D |
| U105 |
Valid without code G42 (7G-TR0NIC PLUS) |
53D |
| U105 |
Valid without code G42 (7G-TR0NIC PLUS) |
47D |
| V26 |
Fuel pump diode |
18H |
| W11/1 |
Engine ground point |
148E |
| W2 |
Right front lamp unit ground point |
40H |
| W2 |
Right front lamp unit ground point |
81L |
| W2 |
Right front lamp unit ground point |
10E |
| W43/1 |
Left firewall ground point |
54H |
| W52/7 |
Left rear crossmember ground point |
20E |
| W71/1 |
Driver seat frame ground point 1 |
18L |
| W9/6 |
Left front lamp unit ground point |
10E |
| W9/6 |
Left front lamp unit ground point |
81L |
| X195 |
Glow plug electrical connector |
143H |
| X25/15 |
Fuel tank electrical connector |
19H |
| X26/54 |
Engine wiring harness electrical connector 2 |
149H |
| X26/65 |
Engine wiring harness electrical connector 4 |
88H |
| X26/65 |
Engine wiring harness electrical connector 4 |
78H |
| X26/65 |
Engine wiring harness electrical connector 4 |
141H |
| X30/41 |
Drive train sensor CAN potential distributor electrical connector |
72L |
| X30/45 |
Engine CAN electrical connector 2 |
69L |
| X5/6 |
Electrical connector |
133L |
| Y127/1 |
Oil spray nozzles valve |
96L |
| Y133 |
Regulated oil pressure pump valve |
95L |
| Y27/15 |
Exhaust gas recirculation positioner |
101L |
| Y27/16 |
Exhaust gas recirculation cooling solenoid valve |
74L |
| Y74/5 |
Pressure regulator valve |
83L |
| Y76/14 |
Cylinder 1 injector |
129L |
| Y76/15 |
Cylinder 2 injector |
127L |
| Y76/16 |
Cylinder 3 injector |
126L |
| Y76/17 |
Cylinder 4 injector |
128L |
| Y77/7 |
Wastegate pressure transducer |
94L |
| Y93/1 |
Boost pressure control flap pressure transducer |
87L |

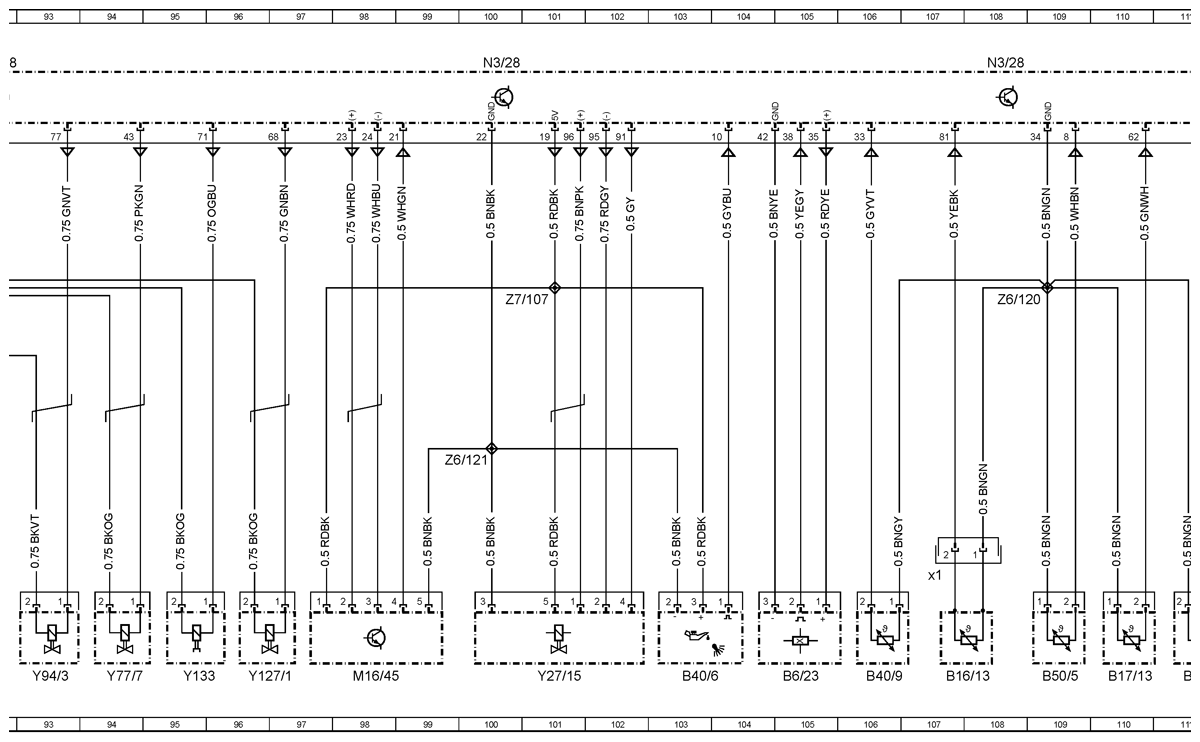

| Y94/3 |
Quantity control valve |
93L |
| Z203/3 |
Connector sleeve/LIN bus |
140E |
| Z203/6 |
Starter-alternator connector sleeve |
135L |
| Z228 |
Fuel pump diode connector sleeve |
18E |
| Z6/113 |
Ground connection connector sleeve |
82E |
| Z6/118 |
Sensor ground connection connector sleeve |
119E |
| Z6/120 |
Sensor ground connection connector sleeve |
108E |
| Z6/121 |
Sensor ground connection connector sleeve |
100G |
| Z6/154 |
Sensor ground connection connector sleeve |
58G |
| Z6/169 |
Ground connection connector sleeve |
45G |
| Z6/178 |
Sensor ground connection connector sleeve |
114G |
| Z6/179 |
Sensor ground connection connector sleeve |
124E |
| Z7/106 |
5V output connector sleeve |
117G |
| Z7/107 |
5V output connector sleeve |
101E |
| Z7/109 |
Circuit 87 connector sleeve |
88E |
| Z7/110 |
Circuit 87 connector sleeve |
75E |
| Z7/110 |
Circuit 87 connector sleeve |
142E |
| Z7/146 |
5V output connector sleeve |
46G |
| Z7/180 |
5V output connector sleeve |
112E |
| Z7/76 |
Circuit 87 connector sleeve |
2E |
| Z7/77 |
Circuit 87 connector sleeve |
40G |
| Z7/82 |
Circuit 87 connector sleeve |
3G |
| Z7/82 |
Circuit 87 connector sleeve |
79L |
| Z7/82 |
Circuit 87 connector sleeve |
142L |
