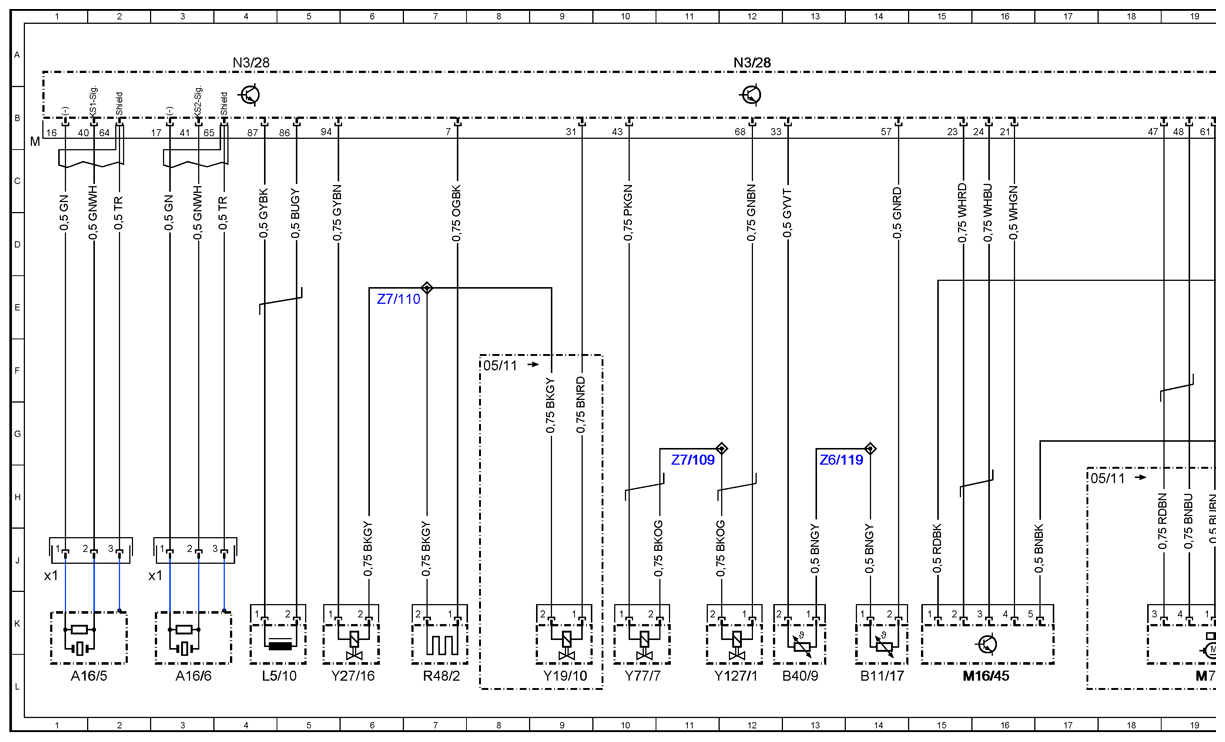

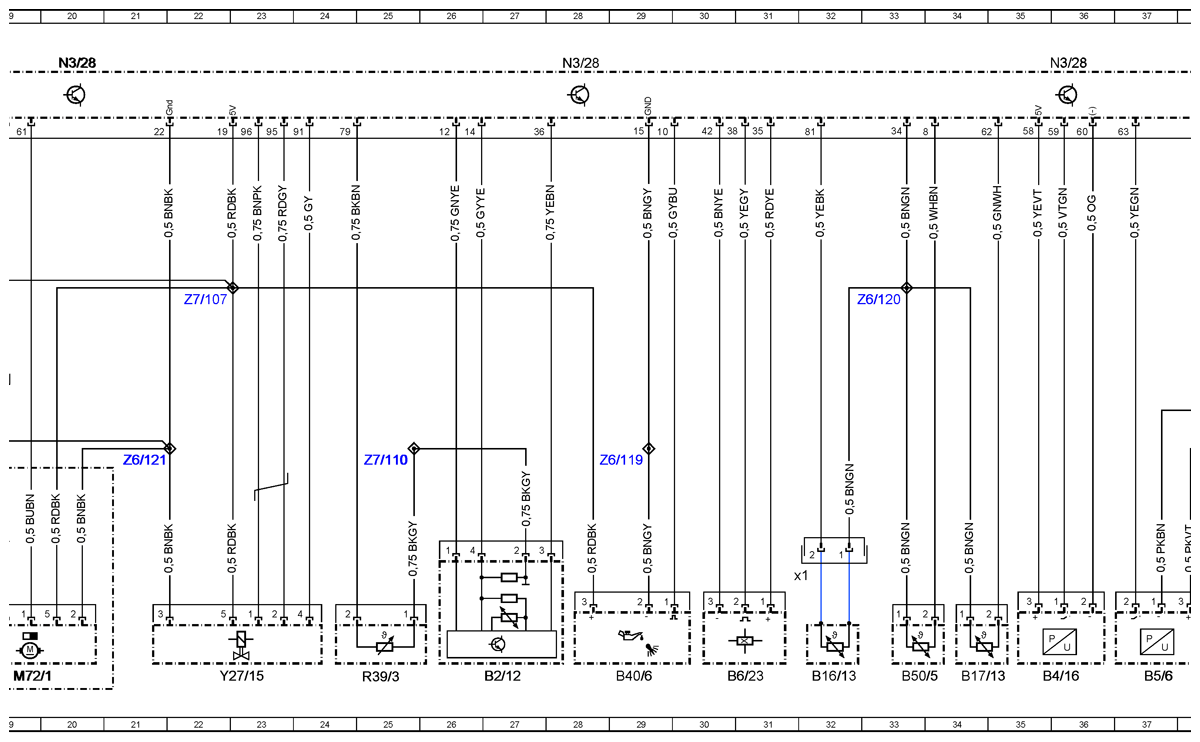

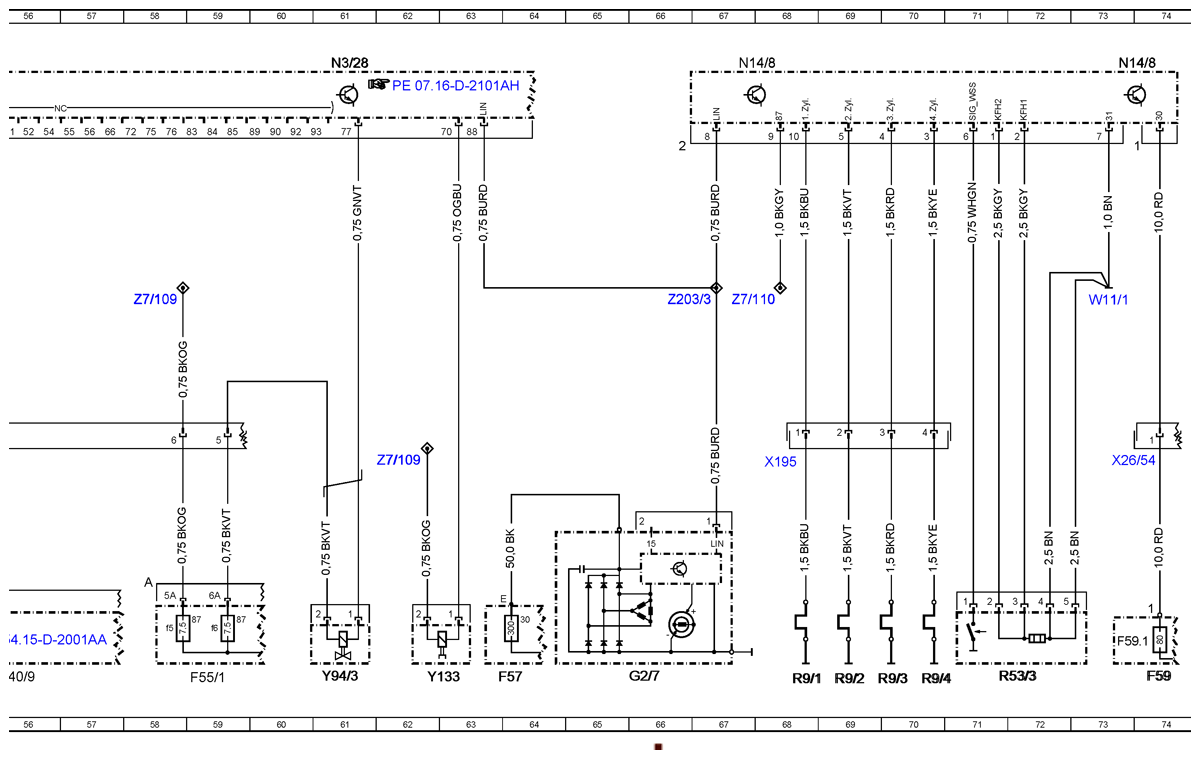

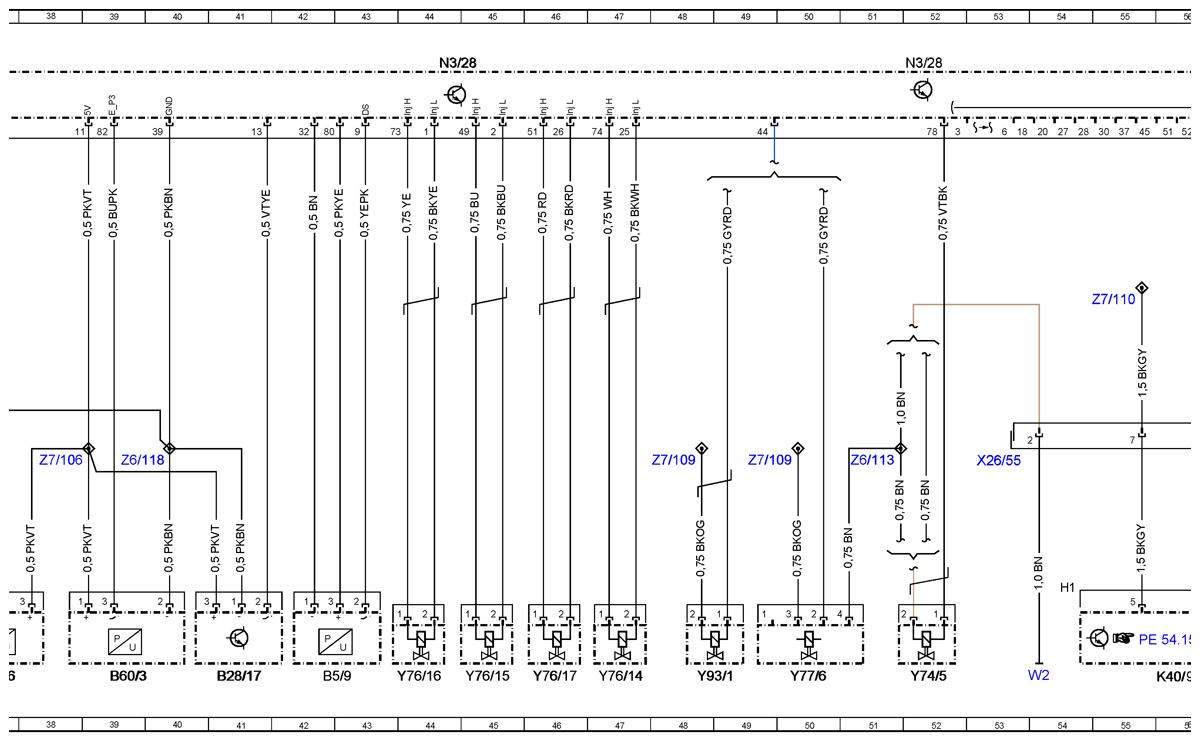

Wiring Diagram For Common Rail Diesel Injection (CDI) Control Unit - Pe07.16-D-2101-97AO
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2018 Mercedes-Benz Sprinter 3500XD, 2018 Mercedes-Benz Sprinter 3500, 2018 Mercedes-Benz Sprinter 2500, 2017 Mercedes-Benz Sprinter 3500XD, and 2017 Mercedes-Benz Sprinter 3500. However, it is still accessible from the selected car via links, so may be relevant.
| Code: | Designation: | Position: |
|---|---|---|
| A16/5 | Knock sensor 1 | 1L |
| A16/5x1 | Knock sensor connector 1 | 1J |
| A16/6 | Knock sensor 2 | 3L |
| A16/6x1 | Knock sensor connector 2 | 3J |
| B11/17 | Coolant temperature sensor | 14L |
| B16/13 | Temperature sensor upstream of turbocharger | 32L |
| B16/13x1 | Temperature sensor connector upstream of turbocharger | 32J |
| B17/13 | Charge air temperature sensor | 34L |
| B2/12 | Hot film mass air flow sensor | 27L |
| B28/17 | Intake manifold pressure sensor | 41L |
| B4/16 | Rai I pressure sensor | 36L |
| B40/6 | Engine oi I level sensor | 29L |
| B40/9 | Engine oil temperature sensor | 13L |
| B5/6 | Boost pressure sensor | 37L |
| B5/9 | Low-pressure turbocharger boost pressure sensor | 42L |
| B50/5 | Fuel temperature sensor | 33L |
| B6/23 | Camshaft sensor | 31L |
| B60/3 | Exhaust back pressure sensor | 39L |
| F55/1 | Fuse block (9 fuses) | 59L |
| F55/1f5 | Fuse 5 (7.5/10 A) motors circuit 87 (5) | 58K |
| F55/1f6 | Fuse 6 (7.5/10 A) motors circuit 87 (6) | 59K |
| F57 | Starter/alternator fuse (300 A) | 64L |
| F59 | Fuse box | 74L |
| F59.1 | Tml. 30 preglow relay/secondary air injection pump fuse (80/40 A) | 73K |
| G2/7 | Alternator with LIN bus | 66L |
| K40/9 | Fuse/relay box (SRB) | 56L |
| L5/10 | Crankshaft sensor | 4L |
| M16/45 | Throttle valve actuator | 16L |
| M72/1 | Intake port shutoff actuator | 19L |
| N14/8 | Glow output stage | 67A |
| N14/8 | Glow output stage | 73A |
| N3/28 | CDI control unit | 4A |
| N3/28 | CDI control unit | 12A |
| N3/28 | CDI control unit | 28A |
| N3/28 | CDI control unit | 20A |
| N3/28 | CDI control unit | 36A |
| N3/28 | CDI control unit | 44A |
| N3/28 | CDI control unit | 52A |
| N3/28 | CDI control unit | 61A |
| R39/3 | Vent line heater element | 25L |
| R48/2 | Thermostat heating element | 7L |
| R53/3 | Fuel filter heater with water level sensor | 72L |
| R9/1 | Cylinder 1 glow plug | 68L |
| R9/2 | Cylinder 2 glow plug | 69L |
| R9/3 | Cylinder 3 glow plug | 70L |
| R9/4 | Cylinder 4 glow plug | 70L |
| W11/1 | Engine ground point | 73E |
| W2 | Right front lamp unit ground point | 54L |
| X195 | Glow plugs connector | 68H |
| X26/54 | Engine wiring harness connector 2 | 74H |
| X26/55 | Engine wiring harness connector 1 | 53H |
| Y127/1 | Oil spray nozzles valve | 12L |
| Y133 | Regulated oil pressure pump valve | 62L |
| Y19/10 | Coolant pump switchover valve | 9L |
| Y27/15 | Exhaust gas recirculation positioner | 23L |
| Y27/16 | Exhaust gas recirculation cooling solenoid valve | 6L |
| Y74/5 | Pressure regulator valve | 52L |
| Y76/14 | Cylinder 1 injector | 47L |
| Y76/15 | Cylinder 2 injector | 45L |
| Y76/16 | Cylinder 3 injector | 44L |
| Y76/17 | Cylinder 4 injector | 46L |
| Y77/6 | Boost pressure positioner | 50L |
| Y77/7 | Waste gate pressure transducer | 10L |
| Y93/1 | Boost pressure control flap pressure transducer | 48L |
| Y94/3 | Quantity control valve | 61L |
| Z203/3 | Connector sleeve/LIN bus | 66E |
| Z6/113 | Ground connector sleeve | 51G |
| Z6/118 | Sensor ground connector sleeve | 39G |
| Z6/119 | Sensor ground connector sleeve | 13G |
| Z6/119 | Sensor ground connector sleeve | 29G |
| Z6/120 | Sensor ground connector sleeve | 33E |
| Z6/121 | Sensor ground connector sleeve | 21G |
| Z7/106 | 5V output connector sleeve | 38G |
| Z7/107 | 5V output connector sleeve | 22E |
| Z7/109 | Tml. 87 connector sleeve | 11G |
| Z7/109 | Tml. 87 connector sleeve | 49G |
| Z7/109 | Tml. 87 connector sleeve | 48G |
| Z7/109 | Tml. 87 connector sleeve | 62G |
| Z7/109 | Tml. 87 connector sleeve | 58E |
| Z7/110 | Tml. 87 connector sleeve | 25G |
| Z7/110 | Tml. 87 connector sleeve | 6E |
| Z7/110 | Tml. 87 connector sleeve | 55E |
| Z7/110 | Tml. 87 connector sleeve | 67E |
