Wiring Diagram For Common Rail Diesel Injection (CDI) Control Unit - Pe07.16-D-2101-97AG
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2018 Mercedes-Benz Sprinter 3500XD, 2018 Mercedes-Benz Sprinter 3500, 2018 Mercedes-Benz Sprinter 2500, 2017 Mercedes-Benz Sprinter 3500XD, and 2017 Mercedes-Benz Sprinter 3500. However, it is still accessible from the selected car via links, so may be relevant.

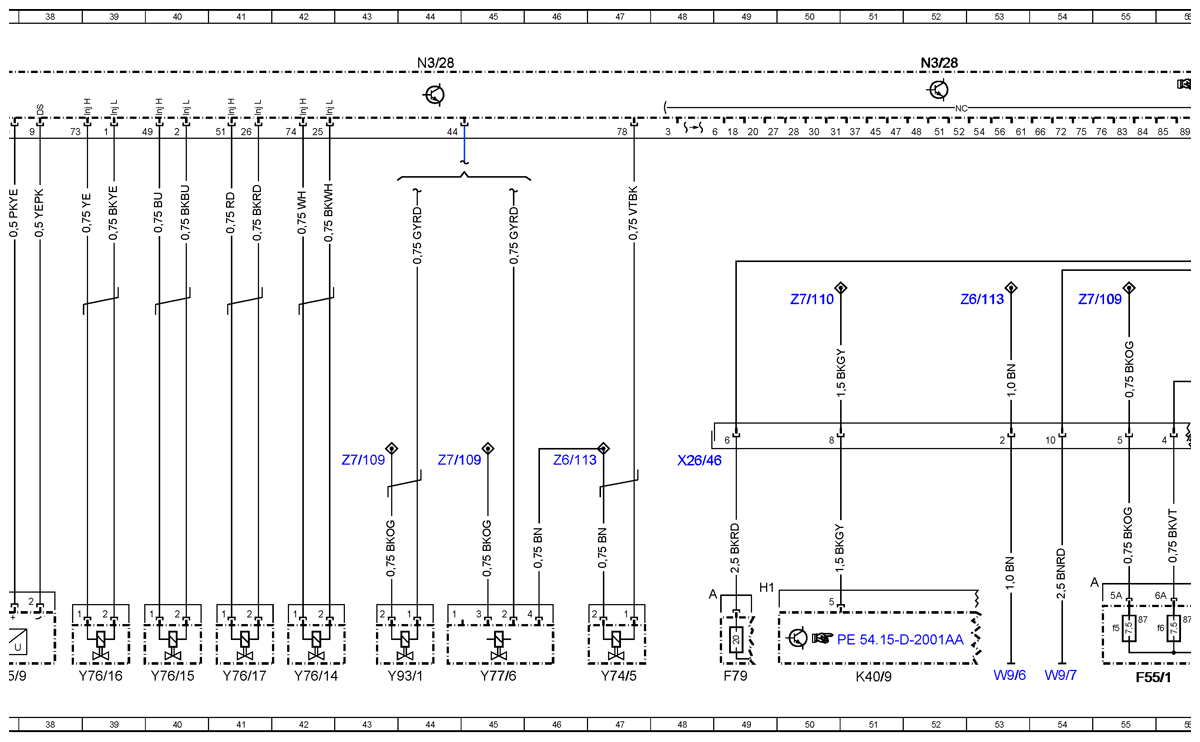

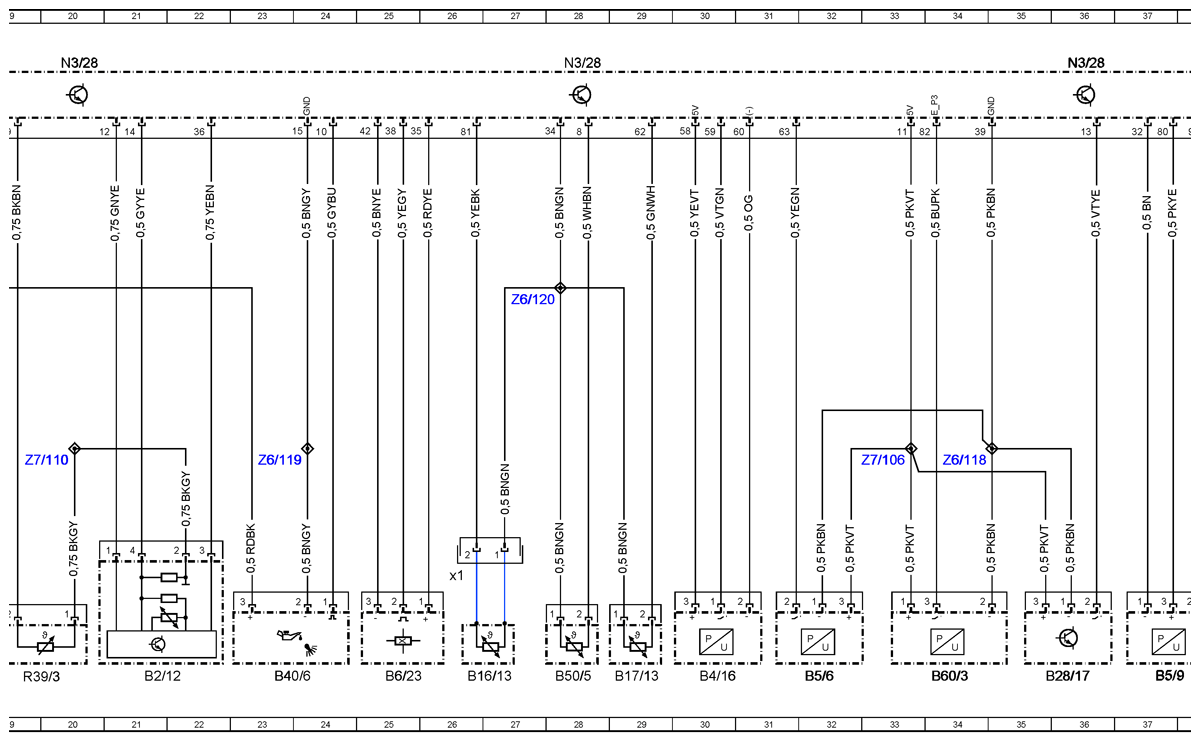

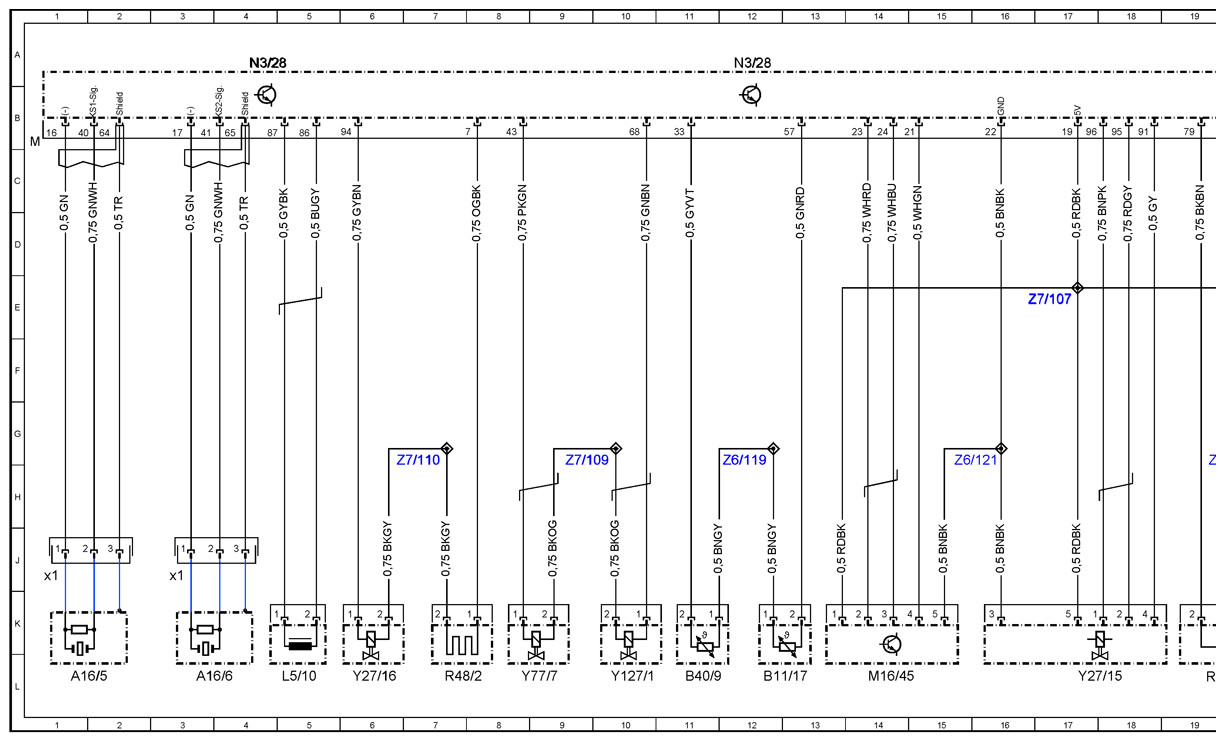

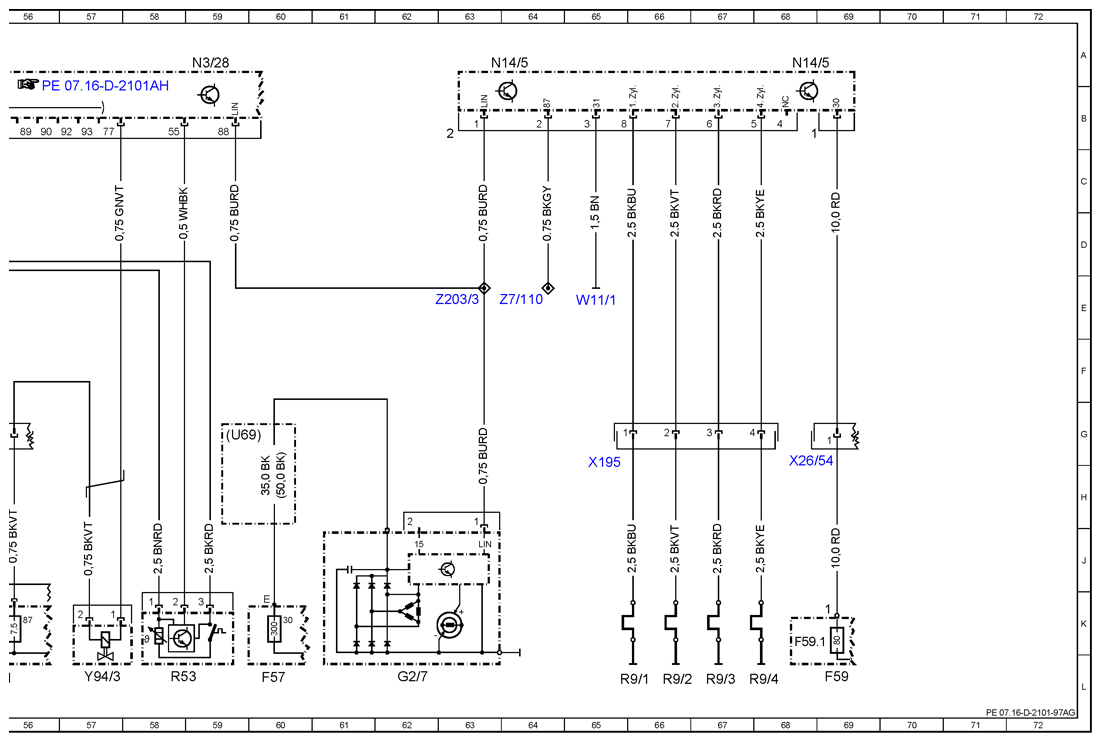

| Code: | Designation: | Position |
|---|---|---|
| A16/5 | Knock sensor 1 | 1L |
| A16/5x1 | Knock sensor connector 1 | 1J |
| A16/6 | Knock sensor 2 | 3L |
| A16/6x1 | Knock sensor connector 2 | 3J |
| B11/17 | Coolant temperature sensor | 12L |
| B16/13 | Temperature sensor upstream of turbocharger | 26L |
| B16/13x1 | Temperature sensor connector upstream of turbocharger | 26J |
| B17/13 | Charge air temperature sensor | 29L |
| B2/12 | Hot film mass air flow sensor | 21L |
| B28/17 | Intake manifold pressure sensor | 36L |
| B4/16 | Rai I pressure sensor | 30L |
| B40/6 | Engine oi I level sensor | 23L |
| B40/9 | Engine oil temperature sensor | 11L |
| B5/6 | Boost pressure sensor | 32L |
| B5/9 | Low-pressure turbocharger boost pressure sensor | 37L |
| B50/5 | Fuel temperature sensor | 28L |
| B6/23 | Camshaft sensor | 25L |
| B60/3 | Exhaust back pressure sensor | 34L |
| F55/1 | Fuse block (9 fuses) | 55L |
| F55/1f5 | Fuse 5 (7.5/10 A) motors circuit 87 (5) | 55K |
| F55/1f6 | Fuse 6 (7.5/10 A) motors circuit 87 (6) | 55K |
| F57 | Starter/alternator fuse (300 A) | 60L |
| F59 | Fuse box | 69L |
| F59.1 | Tml. 30 preglow relay/secondary air injection pump fuse (80/40 A) | 68K |
| F79 | Fuse (20 A)/fuel f i Iter heater | 49L |
| G2/7 | Alternator with LIN bus | 62L |
| K40/9 | Fuse/relay box (SRB) | 51L |
| L5/10 | Crankshaft sensor | 5L |
| M16/45 | Throttle valve actuator | 14L |
| N14/5 | Glow output stage | 63A |
| N14/5 | Glow output stage | 68A |
| N3/28 | CDI control unit | 4A |
| N3/28 | CDI control unit | 12A |
| N3/28 | CDI control unit | 20A |
| N3/28 | CDI control unit | 28A |
| N3/28 | CDI control unit | 36A |
| N3/28 | CDI control unit | 44A |
| N3/28 | CDI control unit | 52A |
| N3/28 | CDI control unit | 59A |
| R39/3 | Vent line heater element | 19L |
| R48/2 | Thermostat heating element | 7L |
| R53 | Fuel filter heater with water level sensor | 58L |
| R9/1 | Cylinder 1 glow plug | 65L |
| R9/2 | Cylinder 2 glow plug | 66L |
| R9/3 | Cylinder 3 glow plug | 67L |
| R9/4 | Cylinder 4 glow plug | 68L |
| U69 | Valid for 220 A alternator version | 59G |
| W11/1 | Engine ground point | 65E |
| W9/6 | Left front lamp unit ground point | 53L |
| W9/7 | Left front ground point 2 | 54L |
| X195 | Glow plugs connector | 65H |
| X26/46 | Engine wiring harness connector 1 | 48H |
| X26/54 | Engine wiring harness connector 2 | 68H |
| Y127/1 | OiI spray nozzles valve | 10L |
| Y27/15 | Exhaust gas recirculation positioner | 17L |
| Y27/16 | Exhaust gas recirculation cooling solenoid valve | 6L |
| Y74/5 | Pressure regulator valve | 47L |
| Y76/14 | Cylinder 1 injector | 42L |
| Y76/15 | Cylinder 2 injector | 40L |
| Y76/16 | Cylinder 3 injector | 39L |
| Y76/17 | Cylinder 4 injector | 41L |
| Y77/6 | Boost pressure positioner | 45L |
| Y77/7 | Waste gate pressure transducer | 9L |
| Y93/1 | Boost pressure control flap pressure transducer | 43L |
| Y94/3 | Quantity control valve | 57L |
| Z203/3 | Connector sleeve/LIN bus | 63E |
| Z6/113 | Ground connector sleeve | 46G |
| Z6/113 | Ground connector sleeve | 53E |
| Z6/118 | Sensor ground connector sleeve | 34G |
| Z6/119 | Sensor ground connector sleeve | 12G |
| Z6/119 | Sensor ground connector sleeve | 23G |
| Z6/120 | Sensor ground connector sleeve | 27E |
| Z6/121 | Sensor ground connector sleeve | 16G |
| Z7/106 | 5V output connector sleeve | 33G |
| Z7/107 | 5V output connector sleeve | 17E |
| Z7/109 | Tml. 87 connector sleeve | 9G |
| Z7/109 | Tml. 87 connector sleeve | 44G |
| Z7/109 | Tml. 87 connector sleeve | 43G |
| Z7/109 | Tml. 87 connector sleeve | 55E |
| Z7/110 | Tml. 87 connector sleeve | 7G |
| Z7/110 | Tml. 87 connector sleeve | 20G |
| Z7/110 | Tml. 87 connector sleeve | 50E |
| Z7/110 | Tml. 87 connector sleeve | 64E |
