Wiring Diagram For Common Rail Diesel Injection (CDI) Control Unit - Pe07.16-D-2101-97AS

ENGINE 642.898 as of 9/1/11 up to 8/31/12 in MODEL 906.1/2/6/7 with CODE MG5(Engine OM 642 DE 30 LA, 140 kW (190 hp) 3800 RPM) with CODE MH1(Low-emission engine EPA 10/CARB) with CODE ZU7(National version for Canada) with CODE ZU8(National version for USA) M connector

WIRING DIAGRAM FOR COMMON RAIL DIESEL INJECTION (CDI) CONTROL UNIT REFERENCE - ENGINE 642.898 AS OF 9/1/11 UP TO 8/31/12 IN MODEL 906.1/2/6/7 WITH CODE MG5(ENGINE OM 642 DE 30 LA, 140 KW (190 HP) 3800 RPM) WITH CODE MH1(LOW-EMISSION ENGINE EPA 10/CARB)

Code: Designation: Position:
A27/2 Viscous fan 15L
B11/19 Coolant temperature sensor 33L
B16/11 Temperature sensor upstream of turbocharger 42L
B16/11x1 Temperature sensor connector upstream of turbocharger 41K
B17/15 Charge air temperature sensor 34L
B19/18 Temperature sensor upstream of TWC [KAT] 45L
B19/18x1 Temperature sensor connector upstream of TWC [KAT] 45K
B19/19 Temperature sensor upstream of diesel particulate filter 43L
B19/19x1 Temperature sensor connector upstream of diesel particulate filter 43K
B19/21 Exhaust gas recirculation cooler temperature sensor 44L
B19/21x1 Exhaust gas recirculation cooler temperature sensor connector 44K
B2/14 Hot film mass air flow sensor 51L
B28/19 Intake manifold pressure sensor 4L
B28/20 Diesel particulate filter differential pressure sensor 2L
B4/17 Rail pressure sensor 18L
B40/8 Engine oil sensor 49L
B5/8 Boost pressure sensor 21L
B50/6 Fuel temperature sensor 35L
B6/24 Camshaft sensor 20L
B60/4 Exhaust back pressure sensor 5L
B70/1 Crankshaft sensor 37L
B90/2 Left EKAS end position measurement sensor 38L
B90/3 Right EKAS end position measurement sensor 40L
F55/1 Fuse block (9 fuses) 10L
F55/1f5 Fuse 5 (7.5/10 A) motors circuit 87 (5) 10K
F55/1f6 Fuse 6 (7.5/10 A) motors circuit 87 (6) 11K
F57 Starter/alternator fuse (300 A) 58L
F74/2 Tml. 30 glow output stage fuse (100 A) 69L
G2/7 Alternator with LIN bus 60L
M16/48 Throttle valve actuator 24L
M16/48m1 Actuator motor 23K
M16/48r1 Actual value potentiometer for throttle valve 24K
M16/48r2 Actual value potentiometer for drive 24K
M16/48r3 Actual value potentiometer (sliding contact 1) 23K
M16/48r4 Actual value potentiometer (sliding contact 2) 23K
M72/2 Intake port shutoff actuator 53L
N14/7 Glow output stage 60A
N14/7 Glow output stage 68A
N3/30 CDI control unit 4A
N3/30 CDI control unit 12A
N3/30 CDI control unit 20A
N3/30 CDI control unit 28A
N3/30 CDI control unit 36A
N3/30 CDI control unit 44A
N3/30 CDI control unit 52A
R39/4 Vent line heater element 54L
R53/4 Fuel filter heater with water level sensor 63L
R9/1 Cylinder 1 glow plug 65H
R9/2 Cylinder 2 glow plug 66H
R9/3 Cylinder 3 glow plug 66H
R9/4 Cylinder 4 glow plug 67H
R9/5 Cylinder 5 glow plug 68H
R9/6 Cylinder 6 glow plug 68H
U69 Valid for 220 A alternator version 57G
W11/1 Engine ground point 64E
W9/6 Left front lamp unit ground point 9L
X26/53 Engine wiring harness connector 2 1H
X26/61 Engine wiring harness connector 8H
Y27/17 Exhaust gas recirculation positioner 47L
Y74/6 Pressure regulator valve 12L
Y76/18 Cylinder 1 injector 26L
Y76/19 Cylinder 2 injector 27L
Y76/20 Cylinder 3 injector 28L
Y76/21 Cylinder 4 injector 29L
Y76/22 Cylinder 5 injector 30L
Y76/23 Cylinder 6 injector 31L
Y77/8 Boost pressure positioner 56L
Y94/4 Quantity control valve 13L
Z203/3 Connector sleeve / LIN bus 61E
Z6/113 Ground connector sleeve 8E
Z6/113 Ground connector sleeve 56G
Z6/130 Sensor ground connector sleeve 34E
Z6/131 Sensor ground connector sleeve 4E
Z6/132 Sensor ground connector sleeve 43G
Z6/133 Sensor ground connector sleeve 50E
Z6/134 Sensor ground connector sleeve 39G
Z6/136 Sensor ground connector sleeve 17G
Z7/120 5V output connector sleeve 3E
Z7/121 5V output connector sleeve 18E
Z7/122 5V output connector sleeve 38E
Z7/123 Sensor tml. 87 connector sleeve 10E
Z7/123 Sensor tml. 87 connector sleeve 55E
Z7/124 Sensor tml. 87 connector sleeve 13E
NOTE: Figures run end to end to complete wiring diagram.

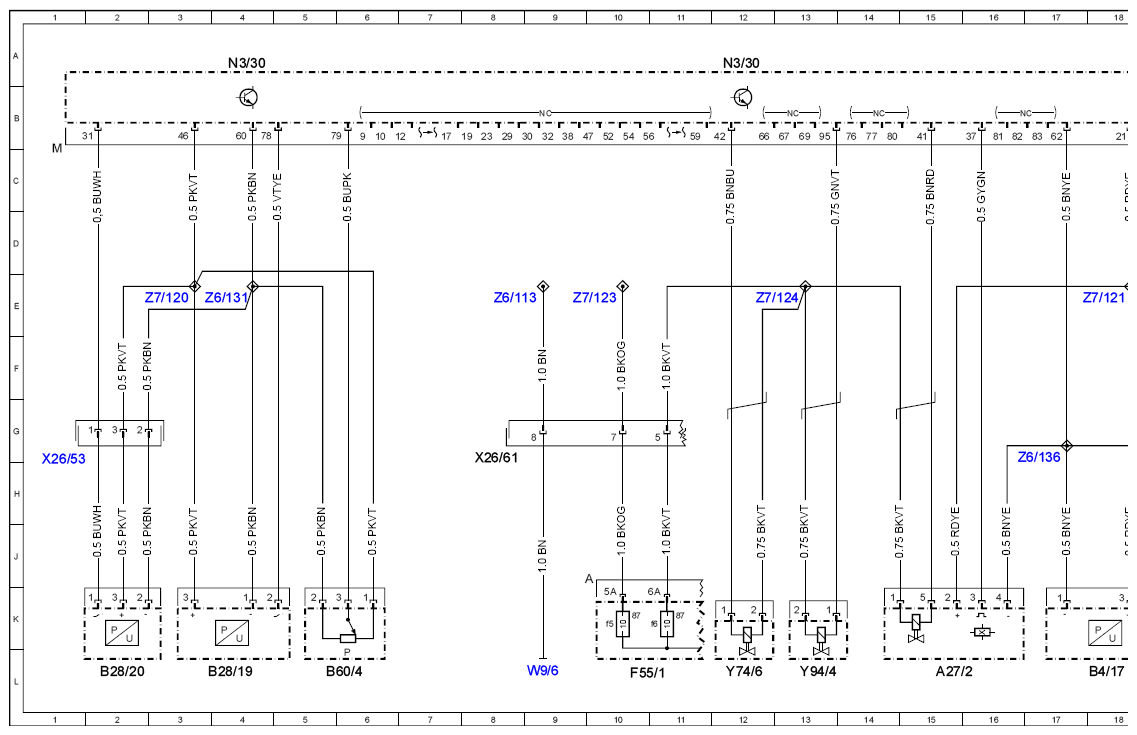

Fig 1: Common Rail Diesel Injection (CDI) Control Unit - Wiring Diagram (1 Of 5)
G08333628Courtesy of MERCEDES-BENZ USA

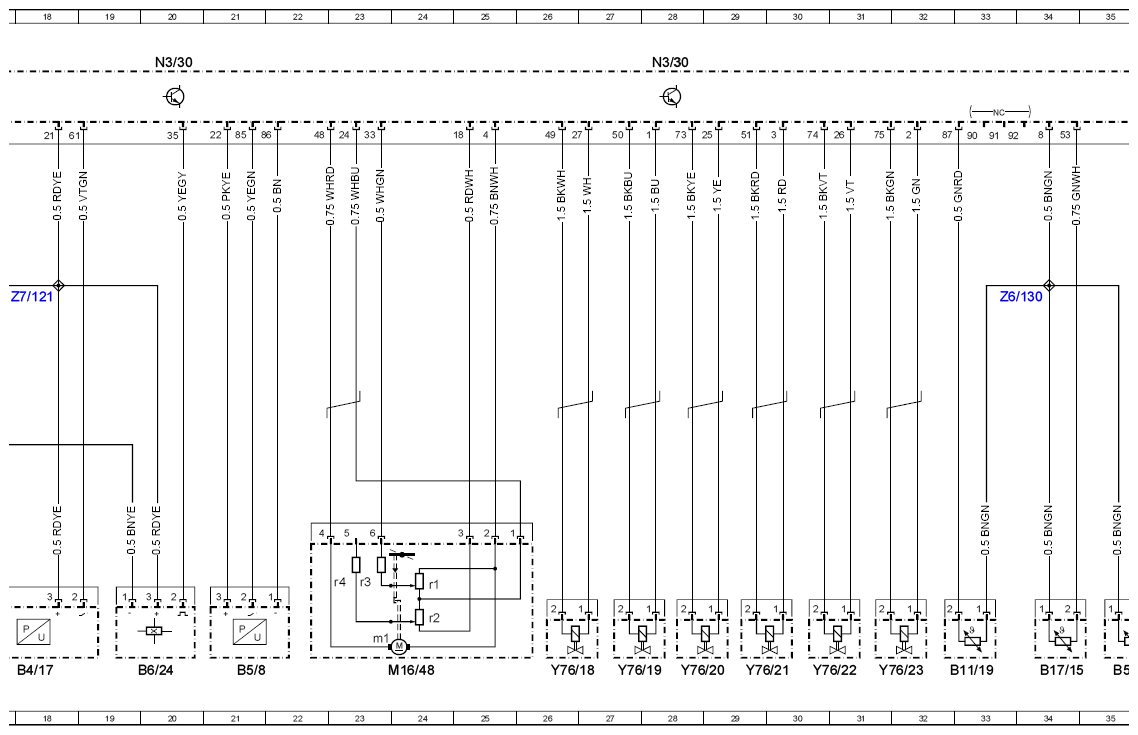

Fig 2: Common Rail Diesel Injection (CDI) Control Unit - Wiring Diagram (2 Of 5)
G08333629Courtesy of MERCEDES-BENZ USA

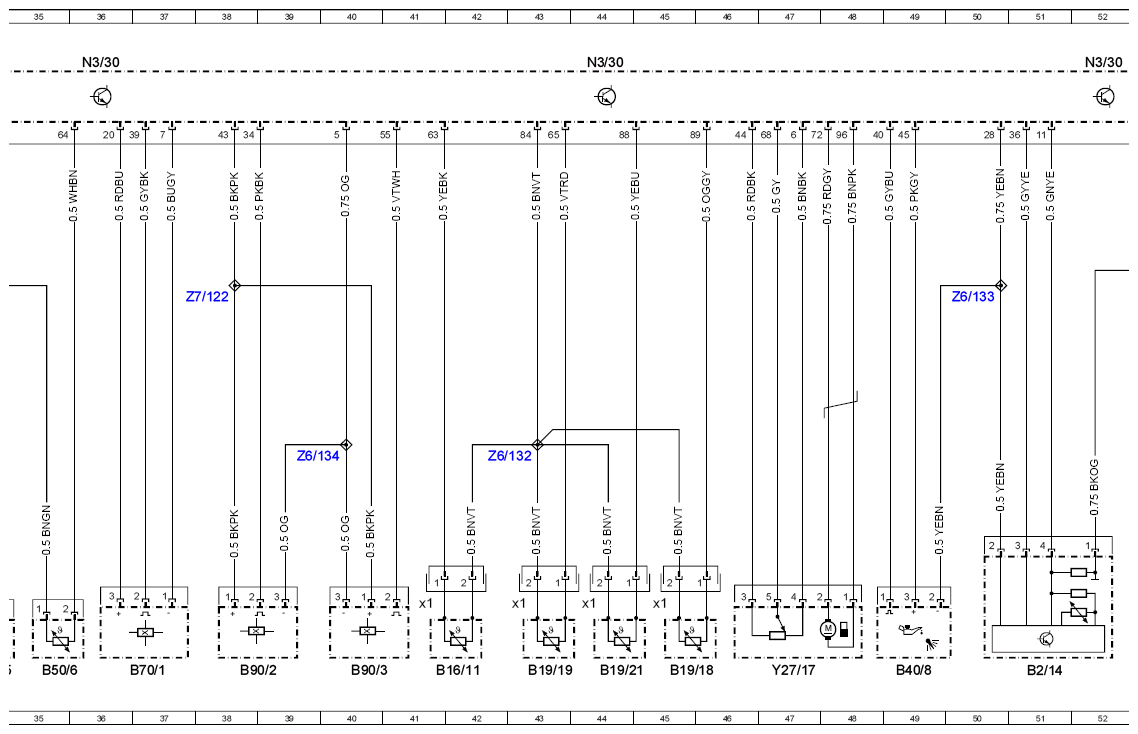

Fig 3: Common Rail Diesel Injection (CDI) Control Unit - Wiring Diagram (3 Of 5)
G08333630Courtesy of MERCEDES-BENZ USA

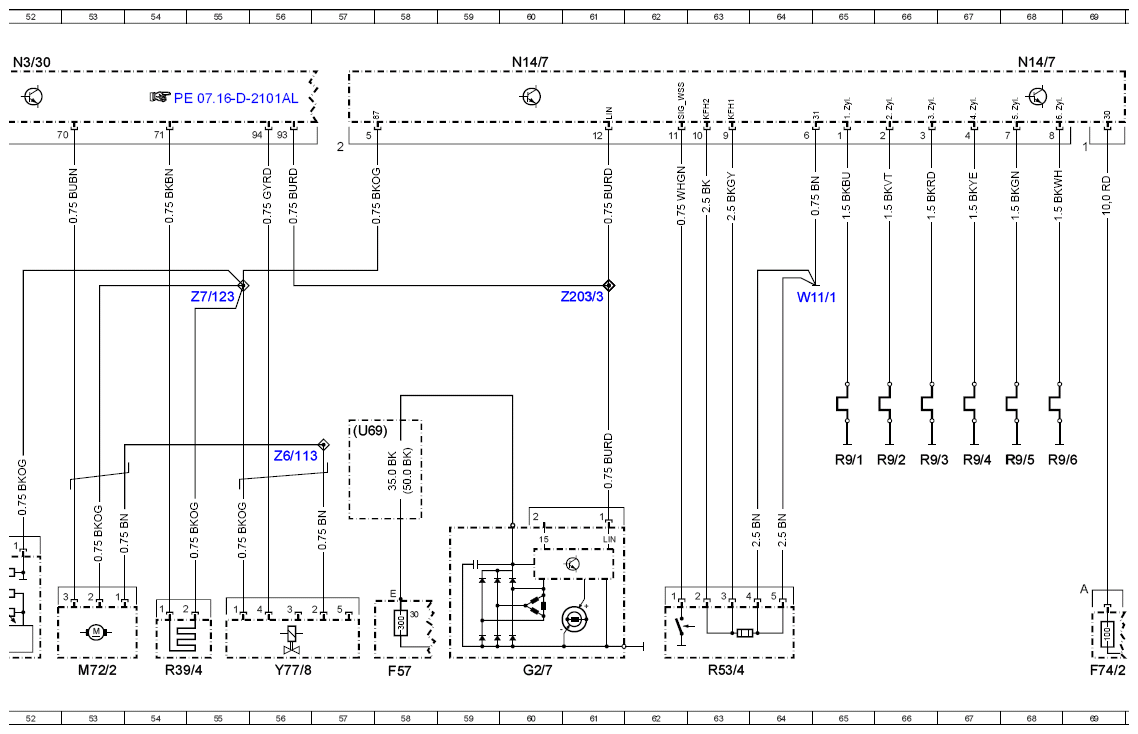

Fig 4: Common Rail Diesel Injection (CDI) Control Unit - Wiring Diagram (4 Of 5)
G08333631Courtesy of MERCEDES-BENZ USA
Fig 5: Common Rail Diesel Injection (CDI) Control Unit - Wiring Diagram (5 Of 5)
G08333632Courtesy of MERCEDES-BENZ USA
