Wiring Diagram For Common Rail Diesel Injection (CDI) Control Unit - Pe07.16-D-2101-97AR

Code: Designation: Position:
A27/2 Viscous fan 15L
B11/19 Coolant temperature sensor 33L
B16/11 Temperature sensor upstream of turbocharger 38L
B16/11x1 Temperature sensor connector upstream of turbocharger 38K
B17/15 Charge air temperature sensor 34L
B19/19 Temperature sensor upstream of diesel particulate filter 40L
B19/19x1 Temperature sensor connector upstream of diesel particulate filter 39K
B2/14 Hot film mass air flow sensor 45L
B28/19 Intake manifold pressure sensor 4L
B28/20 Diesel particulate filter differential pressure sensor 2L
B4/17 Rail pressure sensor 18L
B40/8 Engine oil sensor 43L
B5/8 Boost pressure sensor 21L
B50/6 Fuel temperature sensor 35L
B6/24 Camshaft sensor 20L
B60/4 Exhaust back pressure sensor 5L
B70/1 Crankshaft sensor 37L
F55/1 Fuse block (9 fuses) 10L
F55/1f5 Fuse 5 (7.5/10 A) motors circuit 87 (5) 9K
F55/1f6 Fuse 6 (7.5/10 A) motors circuit 87 (6) 10K
F57 Starter/alternator fuse (300 A) 51L
F74/2 Tml. 30 glow output stage fuse (100 A) 62L
G2/7 Alternator with LIN bus 53L
M16/48 Throttle valve actuator 24L
M16/48m1 Actuator motor 23K
M16/48r1 Actual value potentiometer for throttle valve 24K
M16/48r2 Actual value potentiometer for drive 24K
M16/48r3 Actual value potentiometer (sliding contact 1) 23K
M16/48r4 Actual value potentiometer (sliding contact 2) 23K
N14/7 Glow output stage 52A
N14/7 Glow output stage 60A
N3/30 CDI control unit 4A
N3/30 CDI control unit 12A
N3/30 CDI control unit 20A
N3/30 CDI control unit 28A
N3/30 CDI control unit 36A
N3/30 CDI control unit 44A
R39/4 Vent line heater element 47L
R53/4 Fuel filter heater with water level sensor 56L
R9/1 Cylinder 1 glow plug 58H
R9/2 Cylinder 2 glow plug 58H
R9/3 Cylinder 3 glow plug 59H
R9/4 Cylinder 4 glow plug 60H
R9/5 Cylinder 5 glow plug 60H
R9/6 Cylinder 6 glow plug 61H
U69 Valid for 220 A alternator version 50G
W11/1 Engine ground point 57E
W9/6 Left front lamp unit ground point 8L
X26/53 Engine wiring harness connector 2 1H
X26/61 Engine wiring harness connector 8H
Y27/17 Exhaust gas recirculation positioner 41L
Y74/6 Pressure regulator valve 12L
Y76/18 Cylinder 1 injector 26L
Y76/19 Cylinder 2 injector 27L
Y76/20 Cylinder 3 injector 28L
Y76/21 Cylinder 4 injector 29L
Y76/22 Cylinder 5 injector 30L
Y76/23 Cylinder 6 injector 31L
Y77/8 Boost pressure positioner 49L
Y94/4 Quantity control valve 13L
Z203/3 Connector sleeve / LIN bus 54E
Z6/113 Ground connector sleeve 8E
Z6/113 Ground connector sleeve 49G
Z6/130 Sensor ground connector sleeve 34E
Z6/131 Sensor ground connector sleeve 4E
Z6/132 Sensor ground connector sleeve 39G
Z6/133 Sensor ground connector sleeve 44E
Z6/136 Sensor ground connector sleeve 17G
Z7/120 5V output connector sleeve 3E
Z7/121 5V output connector sleeve 18E
Z7/123 Sensor tml. 87 connector sleeve 9E
Z7/123 Sensor tml. 87 connector sleeve 48E
Z7/124 Sensor tml. 87 connector sleeve 12E
Fig 1: Common Rail Diesel Injection (CDI) Control Unit - Wiring Diagram (1 Of 4)
G08333624Courtesy of MERCEDES-BENZ USA
Fig 2: Common Rail Diesel Injection (CDI) Control Unit - Wiring Diagram (2 Of 4)
G08333625Courtesy of MERCEDES-BENZ USA
Fig 3: Common Rail Diesel Injection (CDI) Control Unit - Wiring Diagram (3 Of 4)
G08333626Courtesy of MERCEDES-BENZ USA

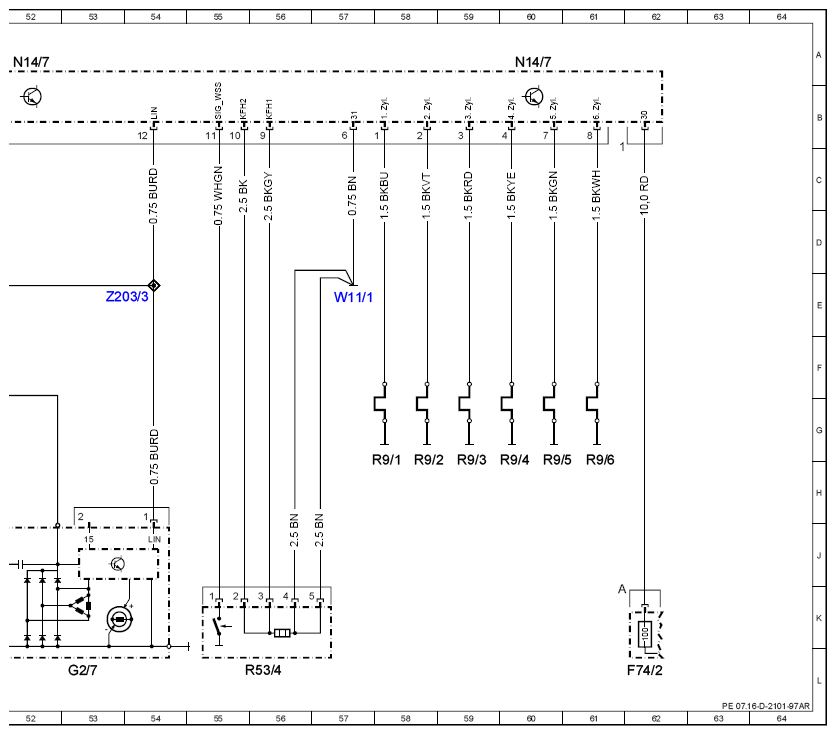

Fig 4: Common Rail Diesel Injection (CDI) Control Unit - Wiring Diagram (4 Of 4)
G08333627Courtesy of MERCEDES-BENZ USA
