Wiring Diagram For Common Rail Diesel Injection (CDI) Control Unit - Pe07.16-D-2101-97AJ

Code: Designation: Position:
B37/3 Accelerator pedal module 19L
B85/3 Oxygen sensor 24L
B85/3x1 Oxygen sensor connector 22J
F55/1 Fuse block (9 fuses) 39L
F55/1f5 Fuse 5 (7.5/10 A) motors circuit 87 (5) 38K
K40/9 Fuse/relay box (SRB) 3L
K40/9 Fuse/relay box (SRB) 27L
N118/5 Fuel pump control unit 8L
N2/14 Lowline airbag control unit 35L
N3/30 CDI control unit 4A
N3/30 CDI control unit 12A
N3/30 CDI control unit 20A
N3/30 CDI control unit 28A
N3/30 CDI control unit 35A
N83/1 DC/DC converter control unit 29L
S164 Transmission neutral position switch 11L
S2/6 Engine start/stop switch 14L
S40/3 Clutch pedal switch 21L
S40/6 Clutch pedal switch 22L
S62/41 Engine hood switch 16L
U10 Valid for engine start/stop (MSS) 12E
U10 Valid for engine start/stop (MSS) 28E
W1/3 CLS cockpit ground point 1 15H
W43/1 Left firewall ground point 21H
W9/6 Left front lamp unit ground point 10E
X162 Transmission neutral position connector 11H
X18/56 HLS/COC connector 13H
X30/27 Engine CAN bus connector 31L
Y27/13 Exhaust gas recirculation cooling solenoid valve 37L
Z7/77 Tml. 87 connector sleeve 13E
Z7/82 Tml. 87 connector sleeve 1E
Z81/5 Tml. 58d connector sleeve 14G
Fig 1: Common Rail Diesel Injection (CDI) Control Unit - Wiring Diagram (1 Of 3)
G08333607Courtesy of MERCEDES-BENZ USA

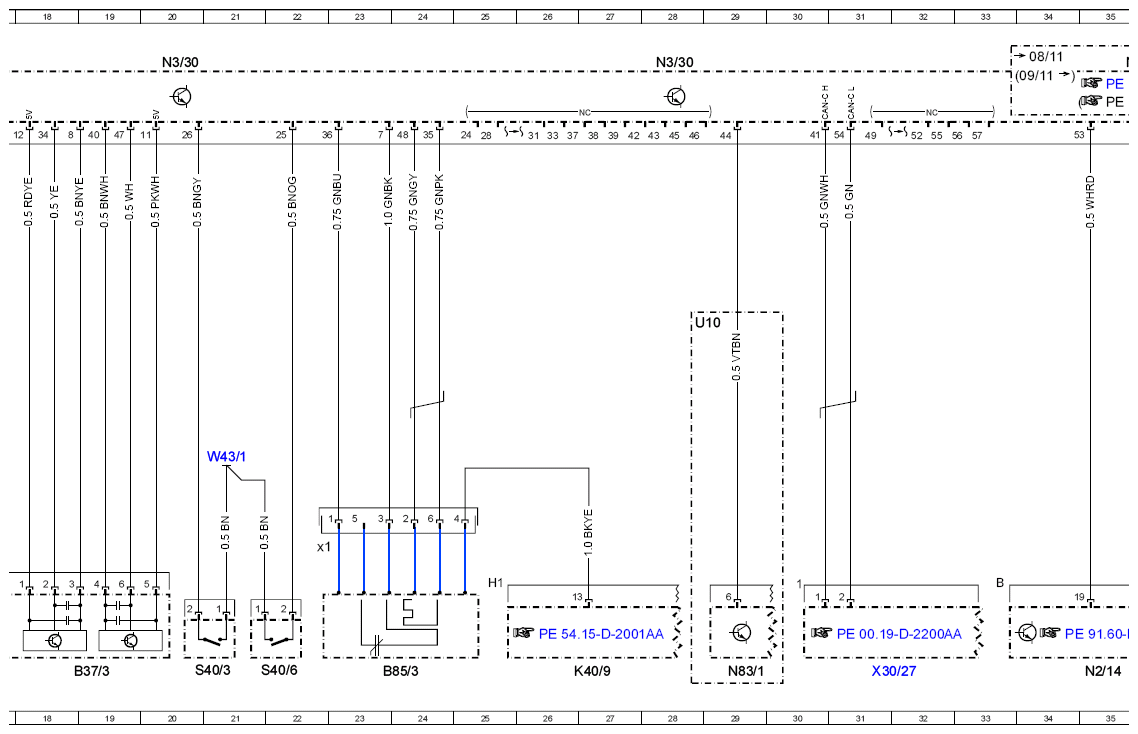

Fig 2: Common Rail Diesel Injection (CDI) Control Unit - Wiring Diagram (2 Of 3)
G08333608Courtesy of MERCEDES-BENZ USA

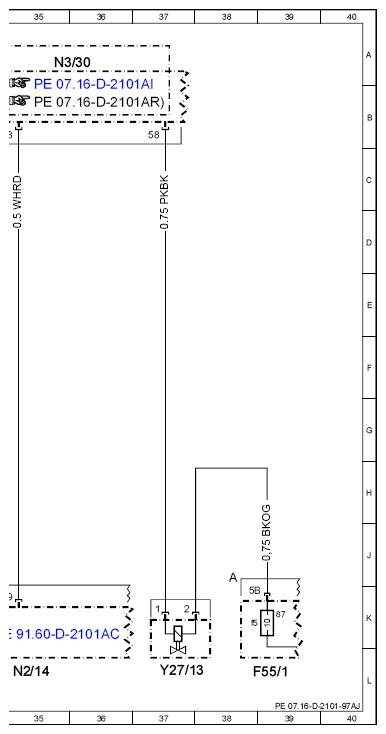

Fig 3: Common Rail Diesel Injection (CDI) Control Unit - Wiring Diagram (3 Of 3)
G08333609Courtesy of MERCEDES-BENZ USA
