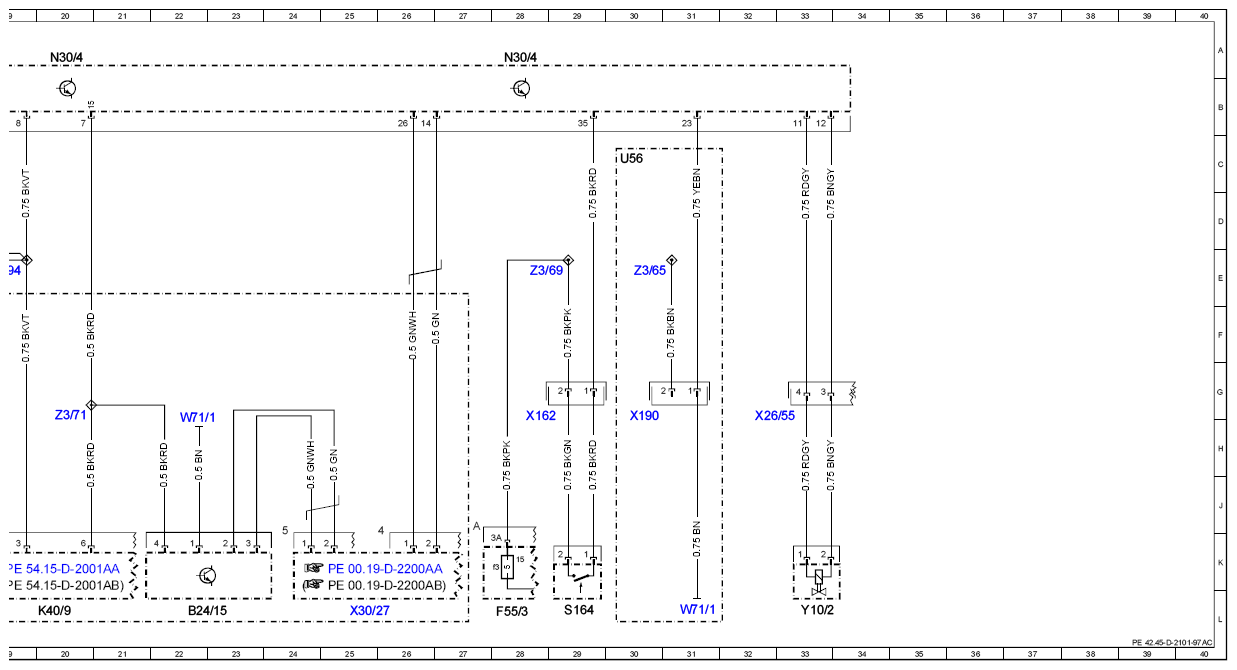

| B24/15 |
Yaw rate, lateral and longitudinal acceleration sensor |
22L |
| F55/1 |
Fuse block (9 fuses) |
2L |
| F55/1f3 |
Fuse 3 (25 A), brake system (valves) |
2K |
| F55/1f4 |
Fuse 4 (40 A), brake system (delivery pump) |
1K |
| F55/3 |
Fuse block (9 fuses) |
28L |
| F55/3f3 |
Fuse 3 (5 A), start-off assist, heater timer, backup camera, telephone |
27K |
| K40/9 |
Fuse/relay box (SRB) |
20L |
| L6/1 |
Left front rpm sensor |
5L |
| L6/2 |
Right front rpm sensor |
7L |
| L6/3 |
Left rear rpm sensor |
9L |
| L6/4 |
Right rear rpm sensor |
11L |
| N28/1 |
Trailer connection unit [AAG] control unit |
16L |

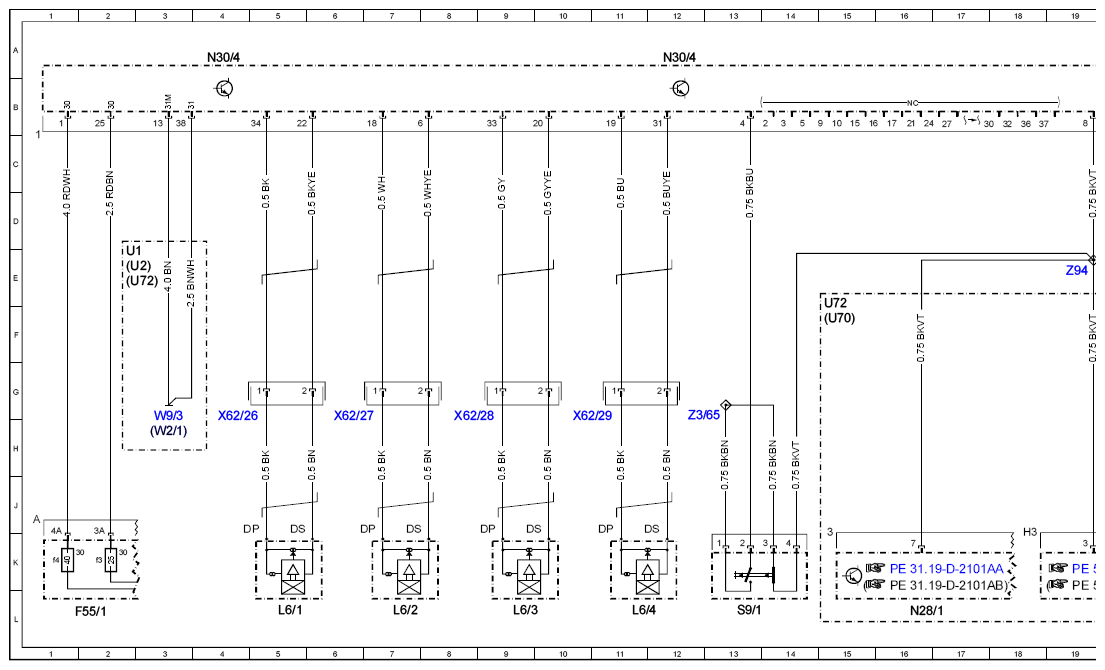

| N30/4 |
ESP control unit |
4A |
| N30/4 |
ESP control unit |
12A |
| N30/4 |
ESP control unit |
20A |
| N30/4 |
ESP control unit |
28A |
| S164 |
Transmission neutral position switch |
29L |
| S9/1 |
Stop lamp switch |
13L |
| U1 |
Valid for left-hand drive vehicles |
2E |
| U2 |
Valid for right-hand drive vehicles |
2E |
| U56 |
Valid for design as rail vehicle |
30C |
| U70 |
Valid for USA, Canada |
15F |
| U72 |
Valid for all except USA, Canada |
2E |
| U72 |
Valid for all except USA, Canada |
15F |
| W2/1 |
Right front ESP ground point, right-hand drive vehicle |
3H |
| W71/1 |
Driver seat frame ground point 1 |
22H |
| W71/1 |
Driver seat frame ground point 1 |
31L |
| W9/3 |
Left front ESP ground point |
3H |
| X162 |
Transmission neutral position connector |
28H |
| X190 |
Rail vehicle connector |
30H |
| X26/55 |
Engine wiring harness connector 1 |
33H |
| X30/27 |
Engine CAN bus connector |
25L |
| X62/26 |
Left front rpm sensor connector |
4H |
| X62/27 |
Right front rpm sensor connector |
6H |
| X62/28 |
Left rear rpm sensor connector |
8H |
| X62/29 |
Right rear rpm sensor connector |
11H |
| Y10/2 |
Power steering pump ECO valve |
33L |
| Z3/65 |
Tml. 15 connector sleeve |
12G |
| Z3/65 |
Tml. 15 connector sleeve |
30E |
| Z3/69 |
Tml. 15 connector sleeve |
28E |
| Z3/71 |
Brake system tml. 15 connector sleeve |
20G |
| Z94 |
Stop lamp switch connector sleeve |
19E |
