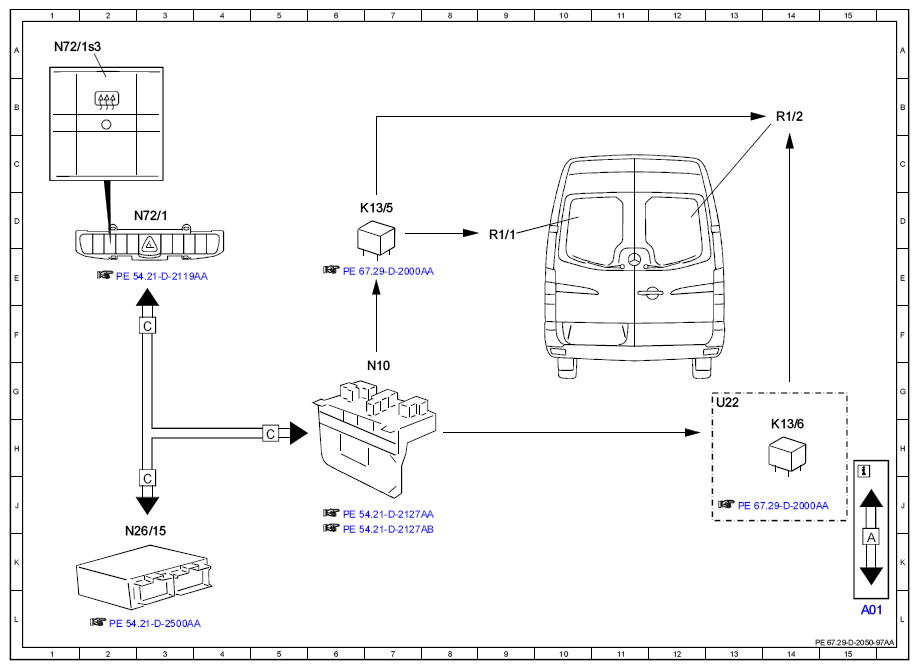

Electrical Function Schematic For Heated Rear Window - Pe67.29-D-2050-97AA
| Code: | Designation: | Position: |
|---|---|---|
| A01 | Explanation of CAN and LIN-Bus | 15L |
| K13/5 | Heated rear window relay 1 | 7D |
| K13/6 | Heated rear window with EDW relay 2 | 14H |
| N10 | SAM control unit | 7G |
| N26/15 | PSM control unit | 2K |
| N72/1 | OBF control unit | 3D |
| N72/1s3 | Rear window heater button | 1A |
| R1/1 | Left heated rear window | 9D |
| R1/2 | Right heated rear window | 14B |
| U22 | Valid for vehicles with anti-theft alarm system | 13G |
