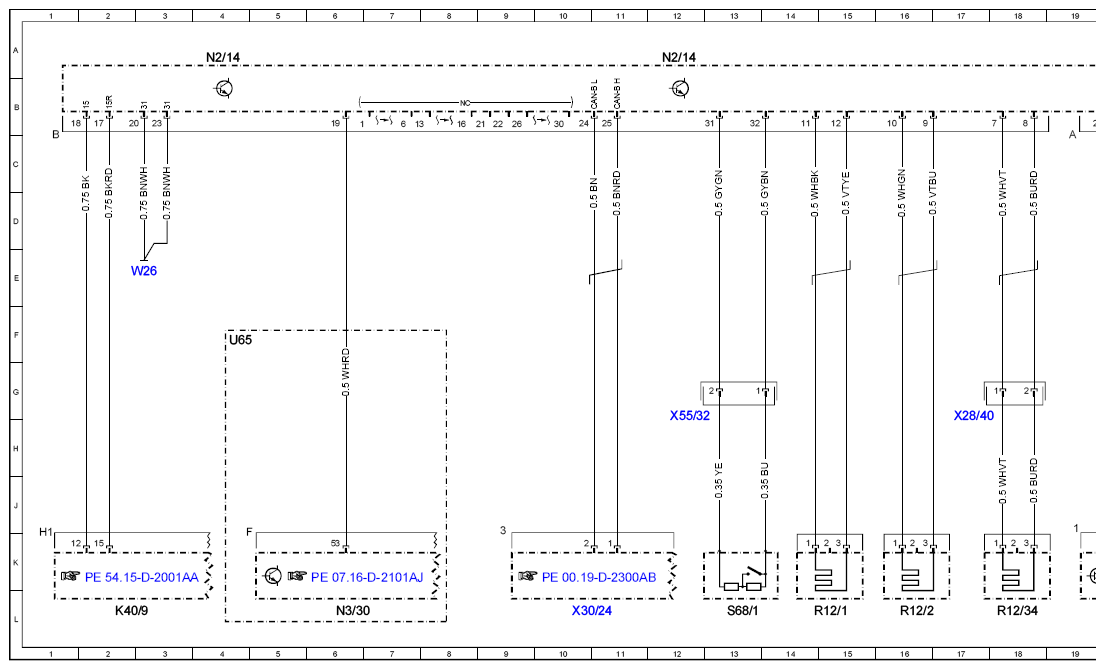

| K40/9 |
Fuse/relay box (SRB) |
2L |
| N2/14 |
Lowline airbag control unit |
4A |
| N2/14 |
Lowline airbag control unit |
12A |
| N2/14 |
Lowline airbag control unit |
20A |
| N3/30 |
CDI control unit |
6L |
| N80 |
MRM control unit |
21L |
| R12/1 |
Driver ETR [GUS] squib |
15L |
| R12/2 |
Front passenger ETR [GUS] squib |
16L |
| R12/34 |
Center front passenger emergency tensioning retractor squib |
18L |
| R12/4 |
Front passenger airbag squib |
24L |
| S68/1 |
Driver seat belt buckle switch |
13L |
| U65 |
Valid for engine 642 (140 kW) |
4F |
| W1/3 |
CLS cockpit ground point 1 |
25E |
| W26 |
Ground point (airbag) |
3E |
| X28/40 |
Center front passenger GUS connector |
17H |
| X28/46 |
Front passenger airbag connector |
24H |
| X30/24 |
Interior CAN bus connector |
10L |
| X55/32 |
Driver seat belt buckle switch connector |
12H |
