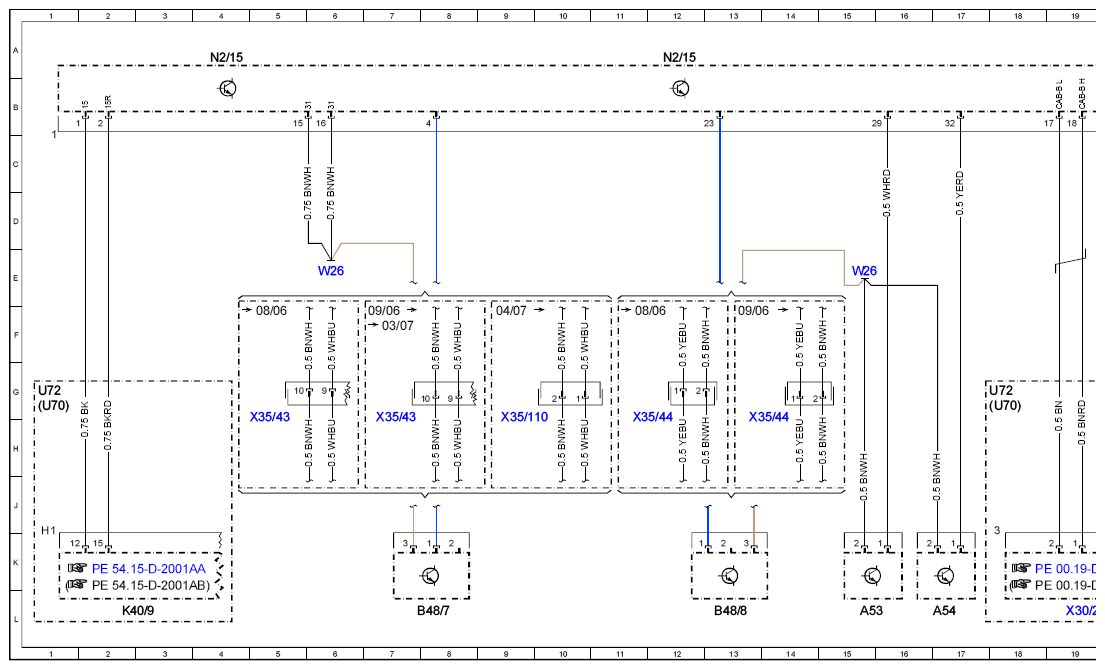

| A53 |
Driver sidebag sensor |
15L |
| A54 |
Front passenger sidebag sensor |
17L |
| B48/7 |
Airbag system driver door pressure sensor |
8L |
| B48/8 |
Airbag system front passenger door pressure sensor |
13L |
| K40/9 |
Fuse/relay box (SRB) |
2L |
| N2/15 |
Highline airbag control unit |
4A |
| N2/15 |
Highline airbag control unit |
12A |
| N2/15 |
Highline airbag control unit |
20A |
| N2/15 |
Highline airbag control unit |
28A |
| N2/15 |
Highline airbag control unit |
36A |
| N2/15 |
Highline airbag control unit |
42A |
| N80 |
MRM control unit |
40L |

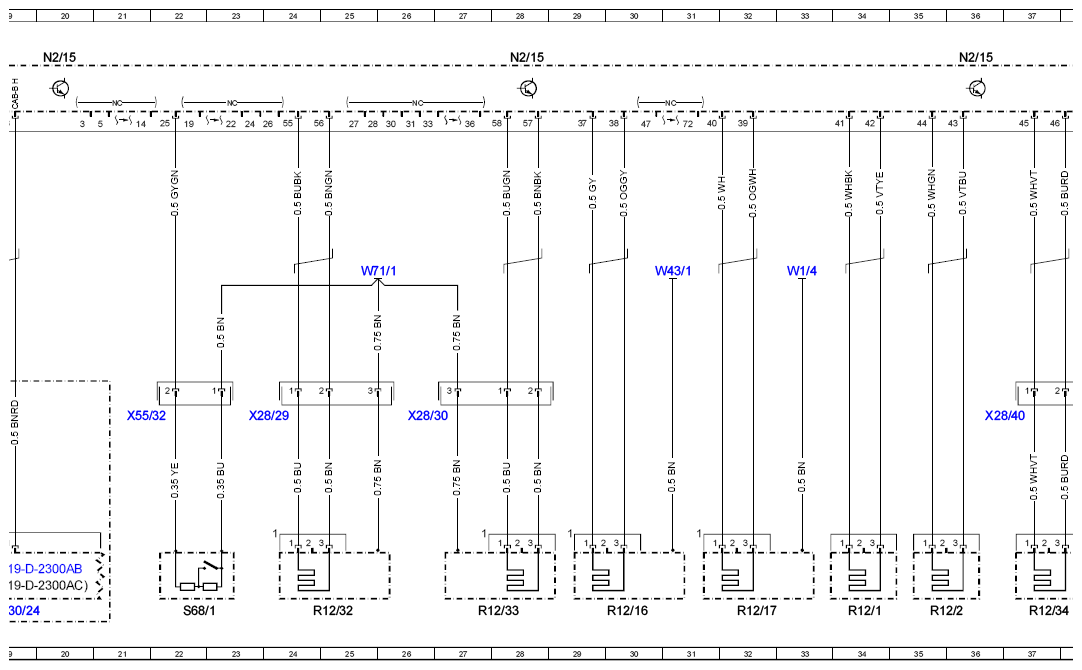

| R12/1 |
Driver ETR [GUS] squib |
34L |
| R12/16 |
Left windowbag squib |
30L |
| R12/17 |
Right windowbag squib |
32L |
| R12/2 |
Front passenger ETR [GUS] squib |
35L |
| R12/32 |
Driver thoraxbag squib |
25L |
| R12/33 |
Passenger thoraxbag squib |
27L |
| R12/34 |
Center front passenger emergency tensioning retractor squib |
37L |
| R12/4 |
Front passenger airbag squib |
43L |
| S68/1 |
Driver seat belt buckle switch |
22L |
| U70 |
Valid for USA, Canada |
1G |
| U70 |
Valid for USA, Canada |
18G |
| U70 |
Valid for USA, Canada |
38G |
| U72 |
Valid for all except USA, Canada |
1G |
| U72 |
Valid for all except USA, Canada |
18G |
| U72 |
Valid for all except USA, Canada |
38G |
| W1/3 |
CLS cockpit ground point 1 |
44E |
| W1/4 |
HLS cockpit ground point |
33E |
| W26 |
Ground point (airbag) |
6E |
| W26 |
Ground point (airbag) |
15E |
| W43/1 |
Left firewall ground point |
31E |
| W71/1 |
Driver seat frame ground point 1 |
25E |
| X28/29 |
Driver thoraxbag squib connector |
24H |
| X28/30 |
Front passenger thoraxbag squib connector |
26H |
| X28/40 |
Center front passenger GUS connector |
37H |
| X28/46 |
Front passenger airbag connector |
44H |
| X30/24 |
Interior CAN bus connector |
19L |
| X35/110 |
Driver door/MWH connector 4 |
9H |
| X35/43 |
Driver door/MWH connector 3 |
5H |
| X35/43 |
Driver door/MWH connector 3 |
7H |
| X35/44 |
Front passenger door connector |
12H |
| X35/44 |
Front passenger door connector |
14H |
| X55/32 |
Driver seat belt buckle switch connector |
21H |
