Remove/Install Driver Seat - Ar91.10-D-1010H

MODEL 906

Shown on vehicle without code ZO1 James Cook Compact Camper and without code (ZO2) James Cook Classic Camper

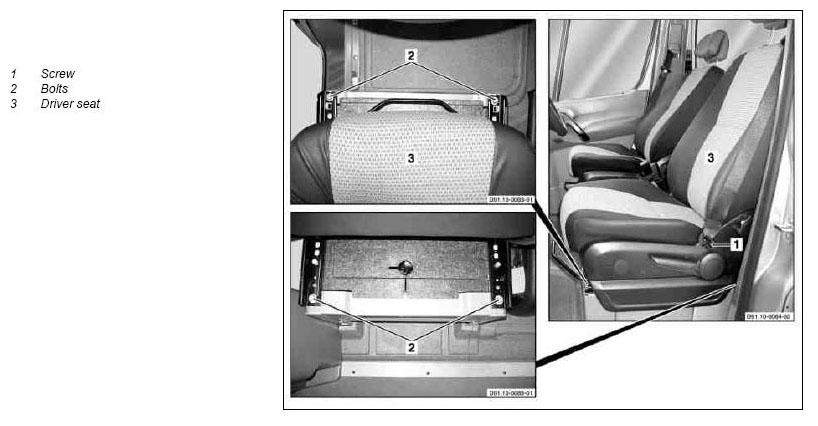

G10890608

Courtesy of MERCEDES-BENZ USA

	Remove/install
	Notes on carrying out repair work in the vehicle interior		AH68.00-N-0001-01S
1	Remove screw/bolt (1) and remove seat belt from driver seat (3)	Without code (Z01) James Cook Compact Camper and without code (Z02) James Cook Classic Camper
1			*BA91.40-N-1008-01B
2	Remove screws/bolts (2) and remove driver seat (3)	To remove the screws/bolts (2) move the driver seat (3) to the corresponding position.
2	Remove screws/bolts (2) and remove driver seat (3)		*BA91.10-N-1001-01A
3	Install in the reverse order

FRONT SEATS

Number	Designation		Model 906
BA91.10-N-1001-01A	Bolt, seat to seat frame	Nm	37

SEAT BELTS/EMERGENCY TENSIONING RETRACTORS

Number	Designation		Model 906 without code ZO1, ZO2	Model 906 with code ZO1, ZO2
BA91.40-N-1008-01B	Bolt, belt end fitting to seat	Nm	37	-
