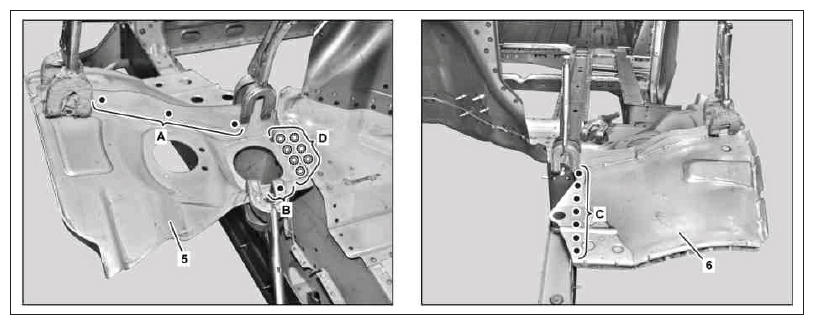

- Install suspension strut support bottom section(5) and wheel well (6), fit and fix in place.
- Suspension strut support bottom section (5) and wheel well (6)
(areas A, B and C).
- Suspension strut support bottom section (5)
(area D).

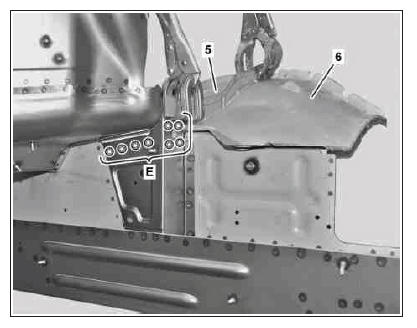

- Suspension strut support bottom section (5) and wheel well (6)
(area E).
 Courtesy of MERCEDES-BENZ USA
|
 Courtesy of MERCEDES-BENZ USA
|

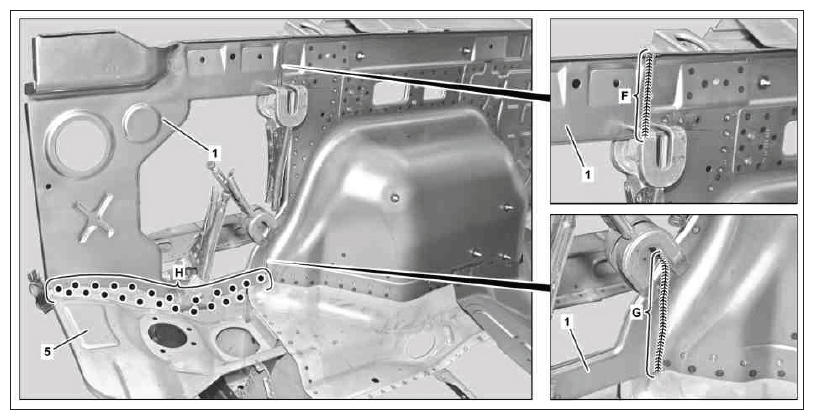

- Install firewall half (1), fit and fix in place.
- Firewall half (1)
(areas F and G).
Perform inert gas welding in intervals, allow to cool down in between, to prevent heat distortion.
- Suspension strut support bottom section(5)
(area H).
 Courtesy of MERCEDES-BENZ USA
|

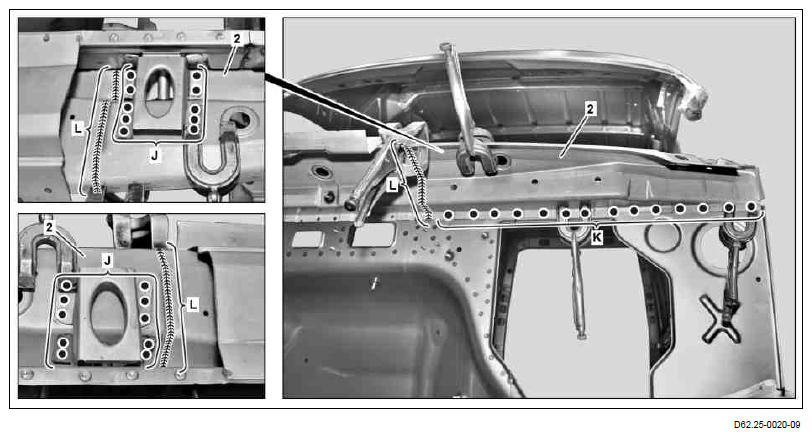

- Install lower waistrail section (2), fit and fix in place.
- Lower waistrail section (2)
(areas J and K).
- Lower waistrail section (2)
(area L).
Perform inert gas welding in intervals, allow to cool down in between, to prevent heat distortion.

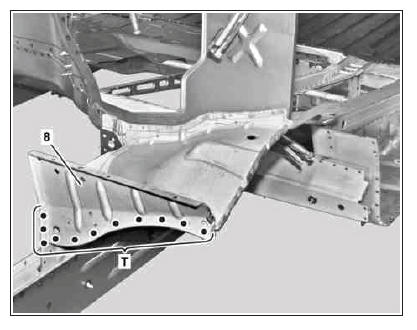

- Install wheel well front section (8), fit and fix in place.
- Wheel well front section (8)
(area T).
 Courtesy of MERCEDES-BENZ USA
|

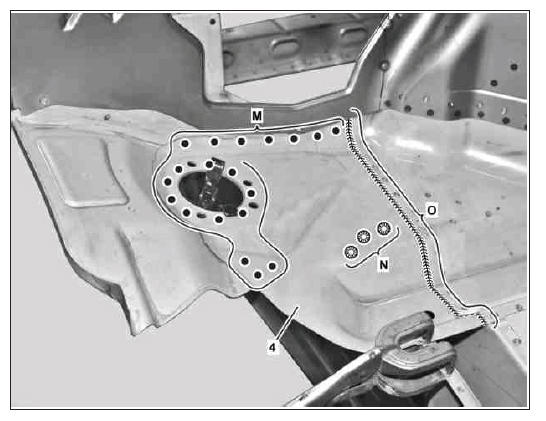

- Install suspension strut support top section (4), fit and fix in place.
- Suspension strut support top section (4)
(area M).
- Suspension strut support top section (4)
(area N).
- Suspension strut support top section (4)
(area O).
 Courtesy of MERCEDES-BENZ USA
|

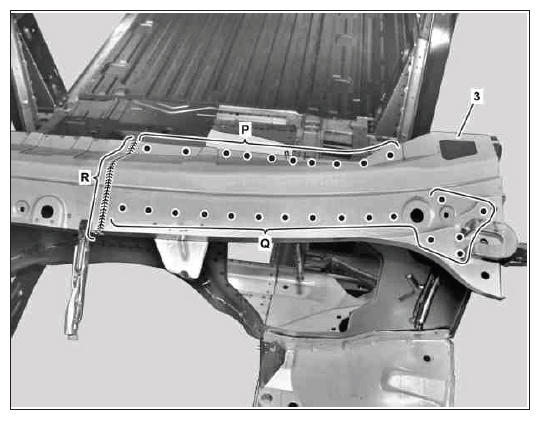

- Install waistrail panel (3), fit and fix in place.
- Waistrail paneling (3)
(areas P and Q).
- Waistrail paneling (3)
(area R).
Perform inert gas welding in intervals, allow to cool down in between, to prevent heat distortion.
- Grind insert gas weld down flat (area R).
 Courtesy of MERCEDES-BENZ USA
|

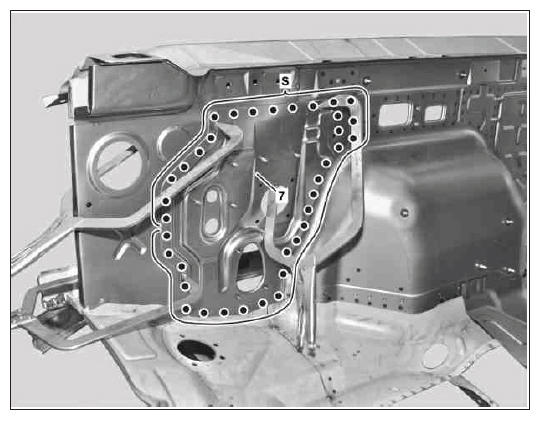

- Install end plate (7), fit and fix in place.
- End plate (7)
(area S).
 Courtesy of MERCEDES-BENZ USA
|

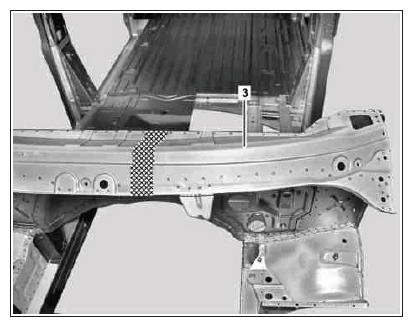

- Restore surface on waistrail paneling (3) in crosshatched area and smooth.
 Courtesy of MERCEDES-BENZ USA
|
