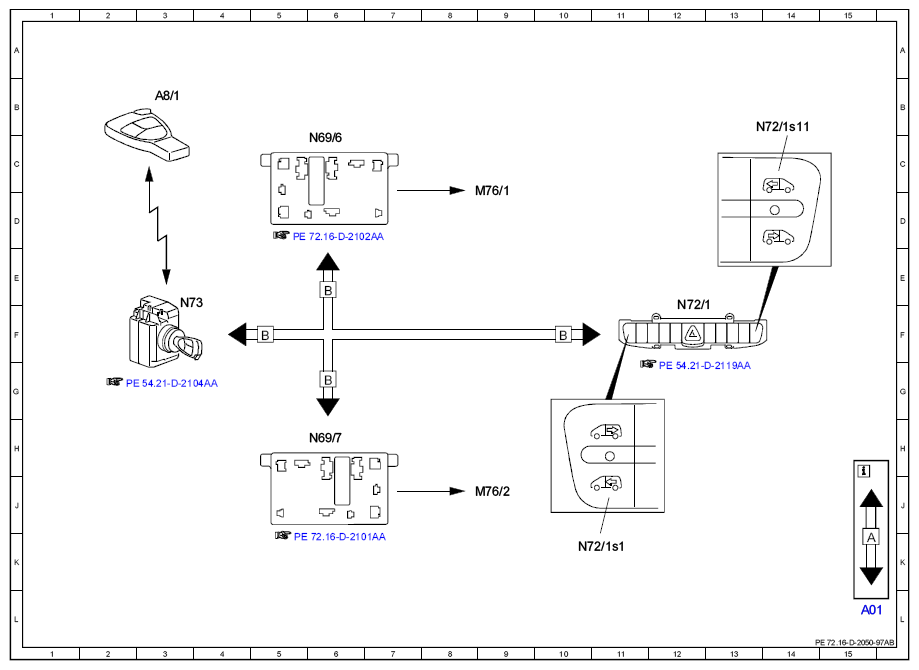

Electrical Function Schematic For Sliding Doors - Pe72.16-D-2050-97AB
| Code: | Designation: | Position: |
|---|---|---|
| A01 | Explanation of CAN and LIN-Bus | 15L |
| A8/1 | Transmitter key | 3B |
| M76/1 | Right sliding door closing assist actuator | 8D |
| M76/2 | Left sliding door closing assist actuator | 8J |
| N69/6 | Right sliding door control unit | 6C |
| N69/7 | Left sliding door control unit | 6H |
| N72/1 | OBF control unit | 12F |
| N72/1s1 | Left sliding door button | 10K |
| N72/1s11 | Right sliding door button | 14B |
| N73 | EIS [EZS] control unit | 3F |
