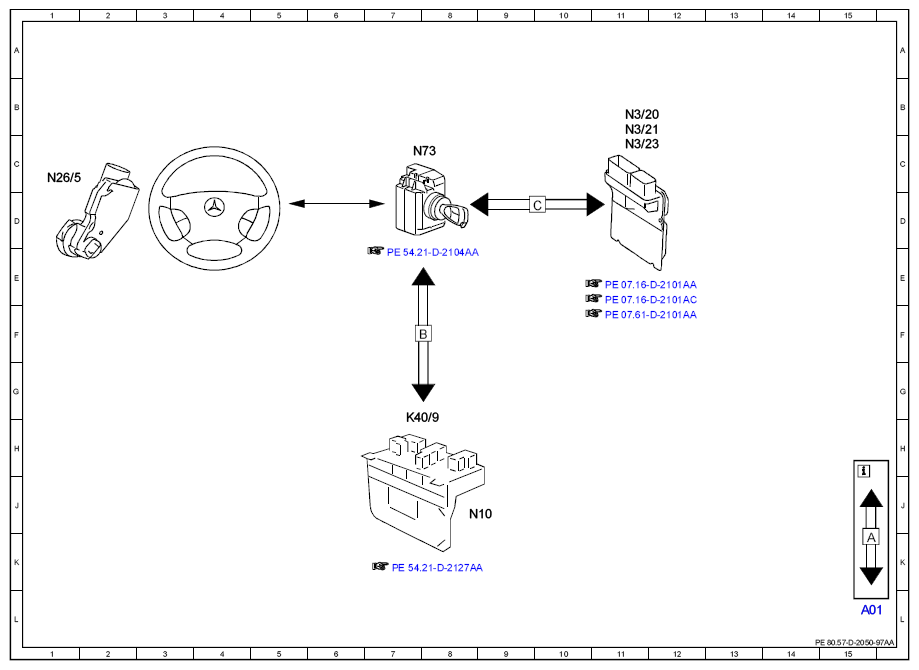

Electrical Function Schematic For Drive Authorization System (DAS) - Pe80.57-D-2050-97AA

Code:	Designation:	Position:
A01	Explanation of CAN and LIN-Bus	15L
K40/9	Fuse/relay box (SRB)	7H
N10	SAM control unit	8J
N26/5	ELV control unit	1C
N3/20	CDI control unit	11B
N3/21	CDI control unit	11B
N3/23	ME-SFI [ME] control unit	11C
N73	EIS [EZS] control unit	7C

Courtesy of MERCEDES-BENZ USA
