Fuse And Relay Box, Location/Assignment - GF54.15-D-0900AA
MODEL 906
Location

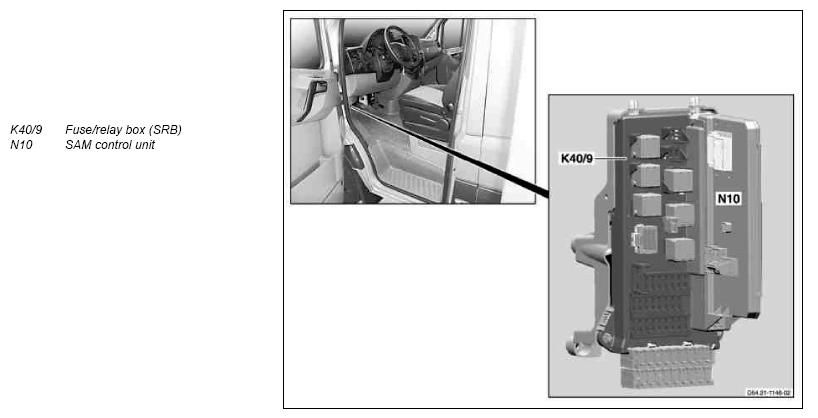

The SAM control unit is integrated into the fuse/relay box (SRB), which is positioned vertically in the left-hand footwell between the firewall and the A-pillar below the dashboard.
| Fuse and relay box assignment | MODEL 906 up to 6/30/13 without CODE ZL3 (National version for Latin America) |
GF54.15-D-0900-01AA |
| MODEL 906 as of 7/1/13 without CODE ZL3 (National version for Latin America) |
GF54.15-D-0900-01AB |
