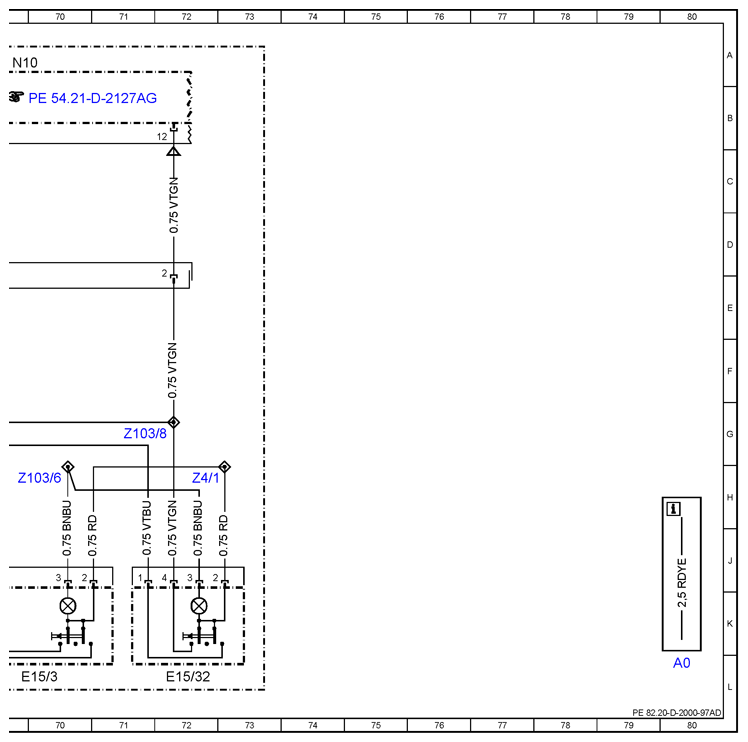

| A0 |
Color code key |
80L |
| B27/1 |
Motion detector |
34L |
| Code D56 |
Full-width partition wall at C-pillar |
51F |
| Code L63 |
Load compartment dome lamp |
58F |
| Code L71 |
Cargo area illumination via motion detector |
33F |
| Code LD4 |
Load/passenger compartment comfort illumination |
24B |
| Code ZK4 |
Mixto |
68A |

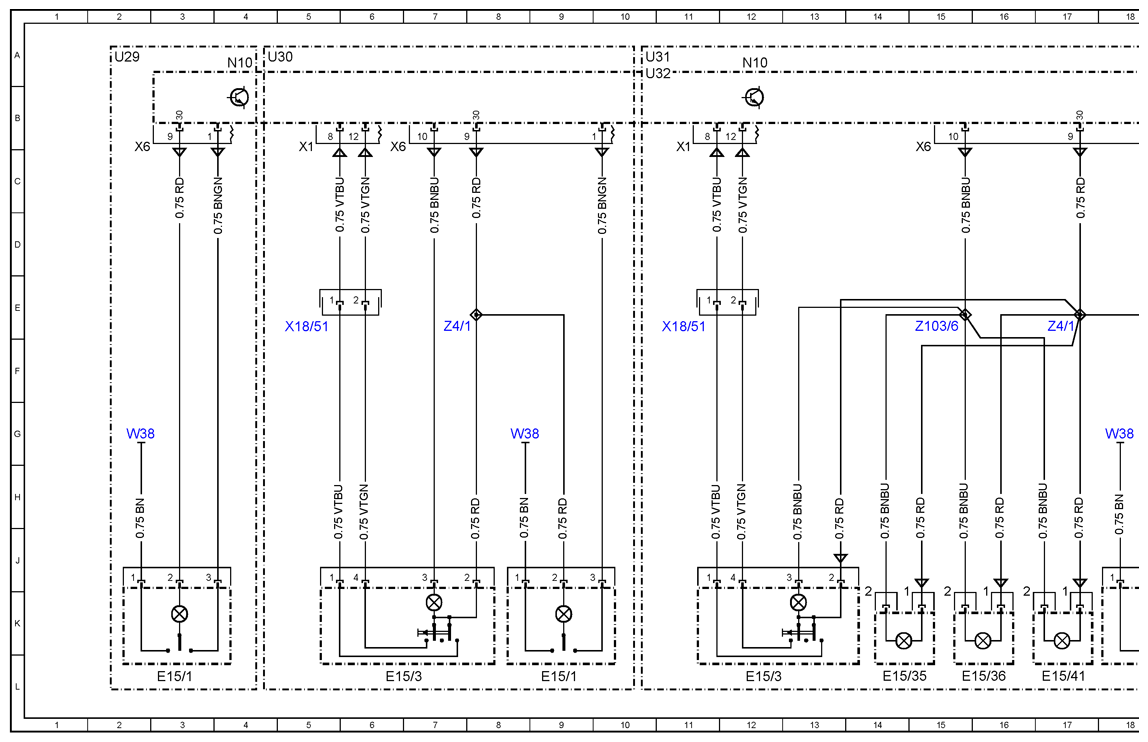

| E15/1 |
Front dome lamp with switch |
3L |
| E15/1 |
Front dome lamp with switch |
9L |
| E15/1 |
Front dome lamp with switch |
18L |
| E15/1 |
Front dome lamp with switch |
48L |
| E15/1 |
Front dome lamp with switch |
63L |

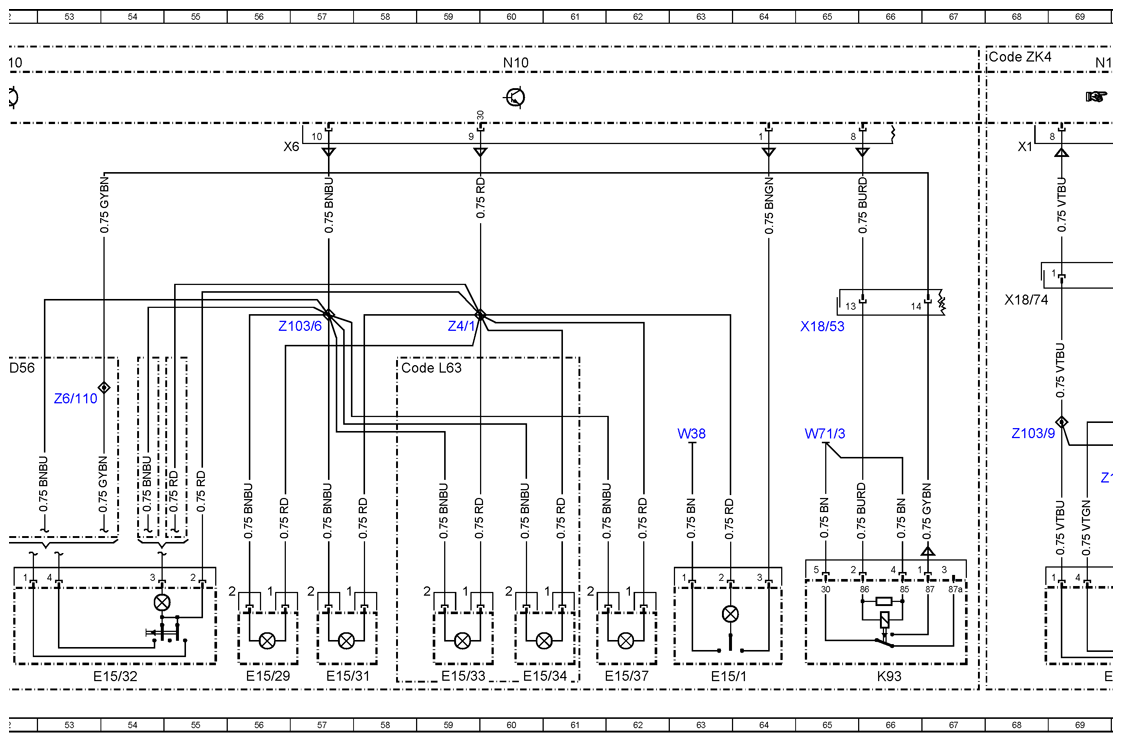

| E15/29 |
Right load compartment lamp 1 |
56L |
| E15/3 |
Rear dome lamp |
6L |
| E15/3 |
Rear dome lamp |
12L |
| E15/3 |
Rear dome lamp |
70L |
| E15/31 |
Right load compartment lamp 2 |
57L |
| E15/32 |
Rear load compartment lamp |
54L |
| E15/32 |
Rear load compartment lamp |
72L |
| E15/33 |
Dome lamp 1 |
59L |
| E15/34 |
Dome lamp 2 |
60L |
| E15/35 |
Rear dome lamp 2 |
14L |
| E15/36 |
Rear dome lamp 3 |
16L |
| E15/37 |
Left load compartment lamp |
62L |

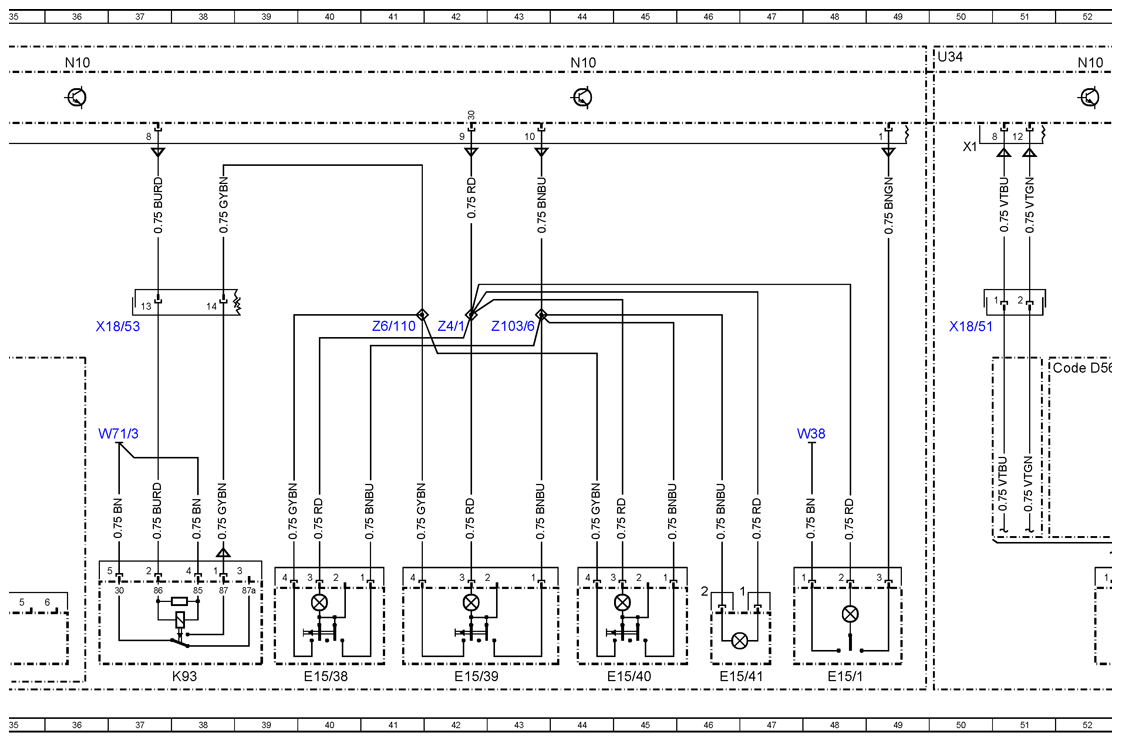

| E15/38 |
Rear dome lamp with switch |
40L |
| E15/39 |
Rear dome lamp 2 with switch |
42L |
| E15/40 |
Rear dome lamp 3 with switch |
45L |
| E15/41 |
Rear dome lamp 4 |
17L |
| E15/41 |
Rear dome lamp 4 |
46L |
| F55/2 |
Fuse block 2 (9-pin) |
31L |
| F55/2f8 |
Motion detector/comfort illumination fuse 17 |
29K |
| K93 |
Illumination relay |
21L |
| K93 |
Illumination relay |
38L |
| K93 |
Illumination relay |
66L |
| N10 |
SAM control unit |
4A |
| N10 |
SAM control unit |
12A |
| N10 |
SAM control unit |
20A |
| N10 |
SAM control unit |
28A |
| N10 |
SAM control unit |
36A |
| N10 |
SAM control unit |
44A |
| N10 |
SAM control unit |
52A |
| N10 |
SAM control unit |
60A |
| N10 |
SAM control unit |
69A |

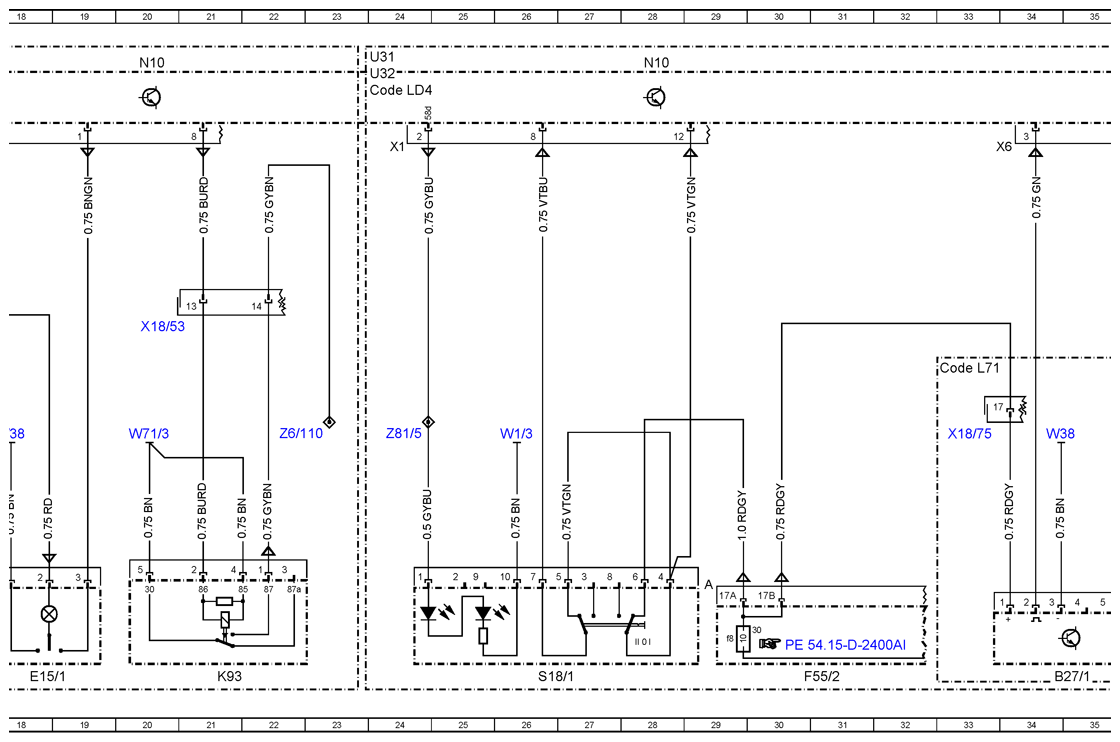

| S18/1 |
Rear dome lamp switch |
26L |
| U29 |
Valid for short cab version |
2A |
| U30 |
Valid for long cab version |
4A |
| U31 |
Valid for panel van version with headliner |
10A |
| U31 |
Valid for panel van version with headliner |
24A |
| U32 |
Valid for MPV version |
10A |
| U32 |
Valid for MPV version |
24A |
| U34 |
Valid for panel van version without headliner |
50A |
| W1/3 |
CLS cockpit ground point 1 |
26G |
| W38 |
Roof ground point |
2G |
| W38 |
Roof ground point |
8G |
| W38 |
Roof ground point |
18G |
| W38 |
Roof ground point |
34G |
| W38 |
Roof ground point |
48G |
| W38 |
Roof ground point |
63G |
| W71/3 |
Driver seat frame ground point 3 |
20G |
| W71/3 |
Driver seat frame ground point 3 |
37G |
| W71/3 |
Driver seat frame ground point 3 |
65G |
| X18/51 |
Cockpit and roof electrical connector 2 |
5E |
| X18/51 |
Cockpit and roof electrical connector 2 |
11E |
| X18/51 |
Cockpit and roof electrical connector 2 |
50E |
| X18/53 |
MWH [HLS]/roof electrical connector 2 |
20E |
| X18/53 |
MWH [HLS]/roof electrical connector 2 |
37E |
| X18/53 |
MWH [HLS]/roof electrical connector 2 |
65E |
| X18/74 |
Cockpit and roof electrical connector 4 |
68E |
| X18/75 |
Cockpit and roof electrical connector 5 |
33G |
| Z103/6 |
Interior lights connector sleeve |
15E |
| Z103/6 |
Interior lights connector sleeve |
70H |
| Z103/6 |
Interior lights connector sleeve |
43E |
| Z103/6 |
Interior lights connector sleeve |
57E |
| Z103/8 |
Interior lights ON connector sleeve |
71G |
| Z103/9 |
Interior lights/contact switch (door) connector sleeve |
68G |
| Z4/1 |
Dome lamp circuit 30 connector sleeve |
7E |
| Z4/1 |
Dome lamp circuit 30 connector sleeve |
17E |
| Z4/1 |
Dome lamp circuit 30 connector sleeve |
72H |
| Z4/1 |
Dome lamp circuit 30 connector sleeve |
42E |
| Z4/1 |
Dome lamp circuit 30 connector sleeve |
59E |
| Z6/110 |
Interior lights ground connection connector sleeve |
22G |
| Z6/110 |
Interior lights ground connection connector sleeve |
53G |
| Z6/110 |
Interior lights ground connection connector sleeve |
41E |
| Z81/5 |
Circuit 58d connector sleeve |
24G |
