| A0 |
Color code key |
64L |
| Code CV1 |
Winter service vehicle preinstallation |
48F |
| Code E40 |
Trailer socket (7-pin) |
27E |
| Code E43 |
Trailer socket (13-pin) |
23E |
| Code E57 |
Electrical system for trailer socket |
25E |
| Code E57 |
Electrical system for trailer socket |
29E |
| Code ED5 |
Parameterizable special module |
39E |
| Code ED5 |
Parameterizable special module |
44E |
| Code ED5 |
Parameterizable special module |
48E |
| Code EK1 |
Terminal strip for electrical connection |
1E |
| Code KP1 |
Fuel pump, electric, controlled |
16E |
| Code KP3 |
Fuel pump, electric, controlled, stage 2 |
16E |
| Code M53 |
Constant rpm control |
39F |
| Code M53 |
Constant rpm control |
44F |
| Code MT4 |
Variable electronic rpm regulator |
39F |
| Code MT4 |
Variable electronic rpm regulator |
44G |
| Code MW1 |
Engine run-on control (MWS) |
44F |
| Code N05 |
Countershaft power take-off (2c) without flange |
44F |
| Code N07 |
Countershaft power take-off (2b) with flange |
44F |
| Code RY2 |
Tire pressure monitor |
35E |
| Code YM1 |
FleetBoard vehicle computer |
44G |
| Code ZM1 |
Low frame chassis preinstallation |
29E |
| Code ZU7 |
Canada national version |
31E |
| Code ZU7 |
Canada national version |
1G |
| Code ZU7 |
Canada national version |
39F |
| Code ZU8 |
USA national version |
1G |
| Code ZU8 |
USA national version |
31E |
| Code ZU8 |
USA national version |
39F |

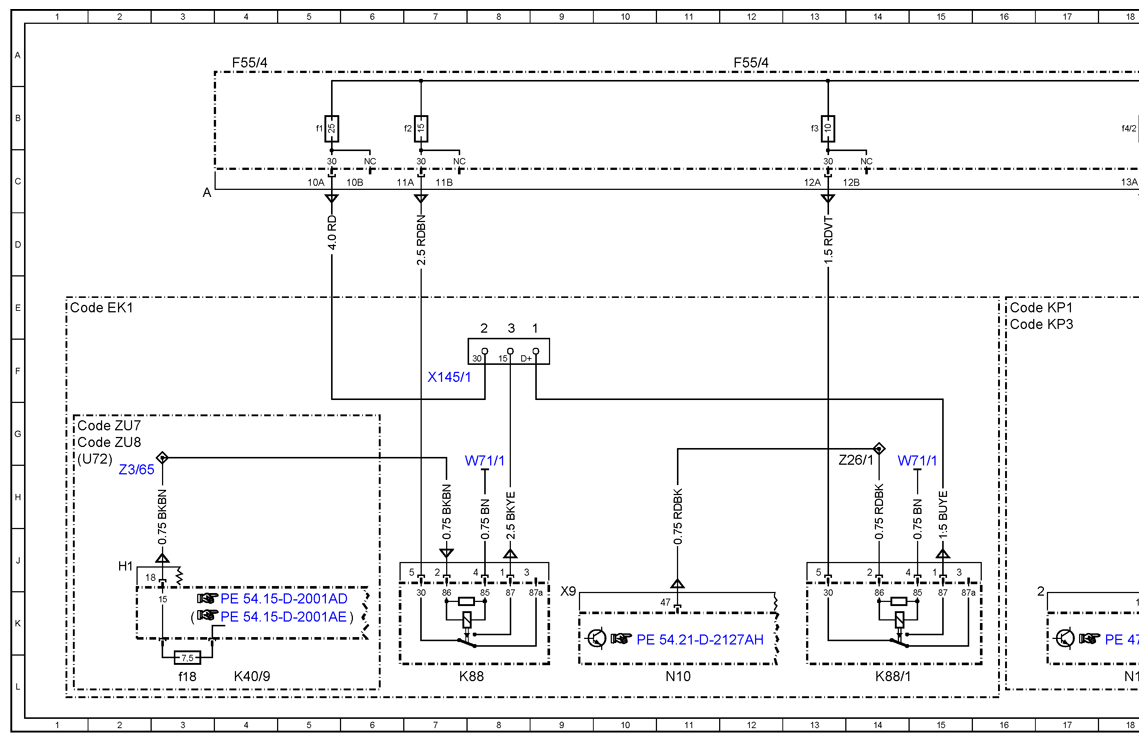

| F55/4 |
Fuse block 4 (9-pin) |
4A |
| F55/4 |
Fuse block 4 (9-pin) |
12A |
| F55/4 |
Fuse block 4 (9-pin) |
53A |
| F55/4 |
Fuse block 4 (9-pin) |
20A |
| F55/4 |
Fuse block 4 (9-pin) |
28A |
| F55/4 |
Fuse block 4 (9-pin) |
36A |
| F55/4 |
Fuse block 4 (9-pin) |
45A |
| F55/4f1 |
Circuit 30 body manufacturer fuse 10 |
5B |
| F55/4f2 |
Circuit 15 body manufacturer fuse 11 |
7B |
| F55/4f3 |
Circuit D+ body manufacturer fuse 12 |
13B |

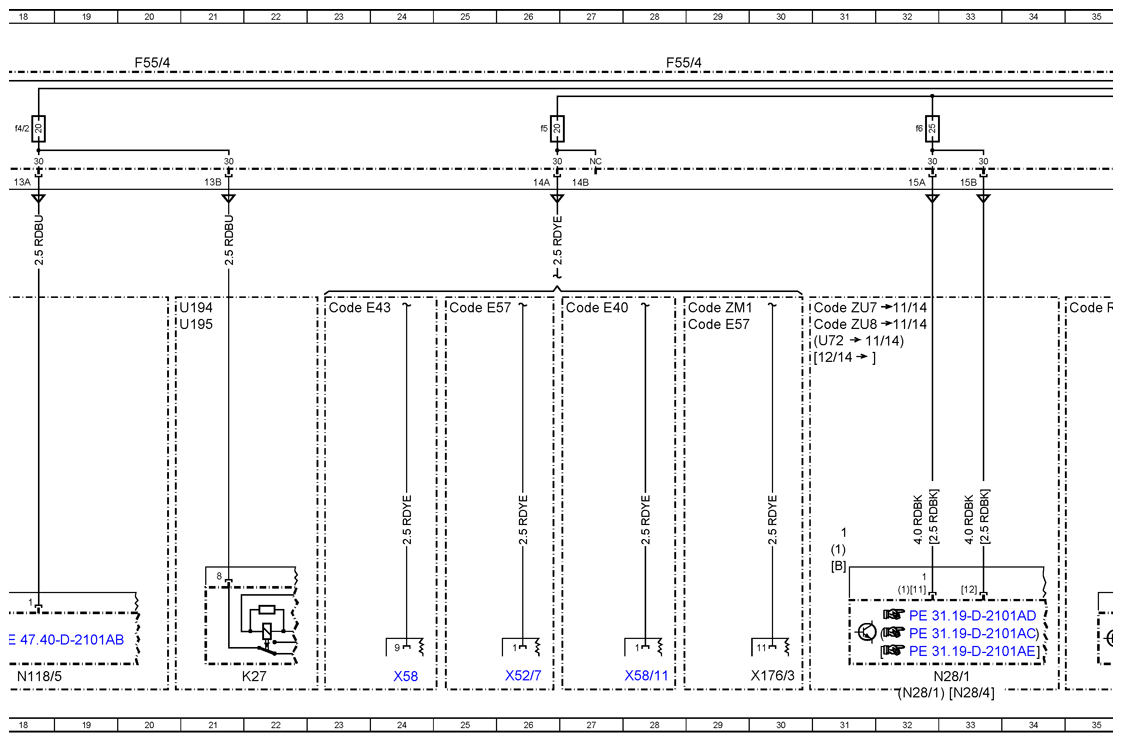

| F55/4f4/2 |
Fuel pump fuse 13 |
18B |
| F55/4f5 |
Trailer socket fuse 14 |
26B |
| F55/4f6 |
AAG fuse 15 |
32B |
| F55/4f7 |
Tire pressure monitor, PARKTRONIC fuse 16 |
36B |

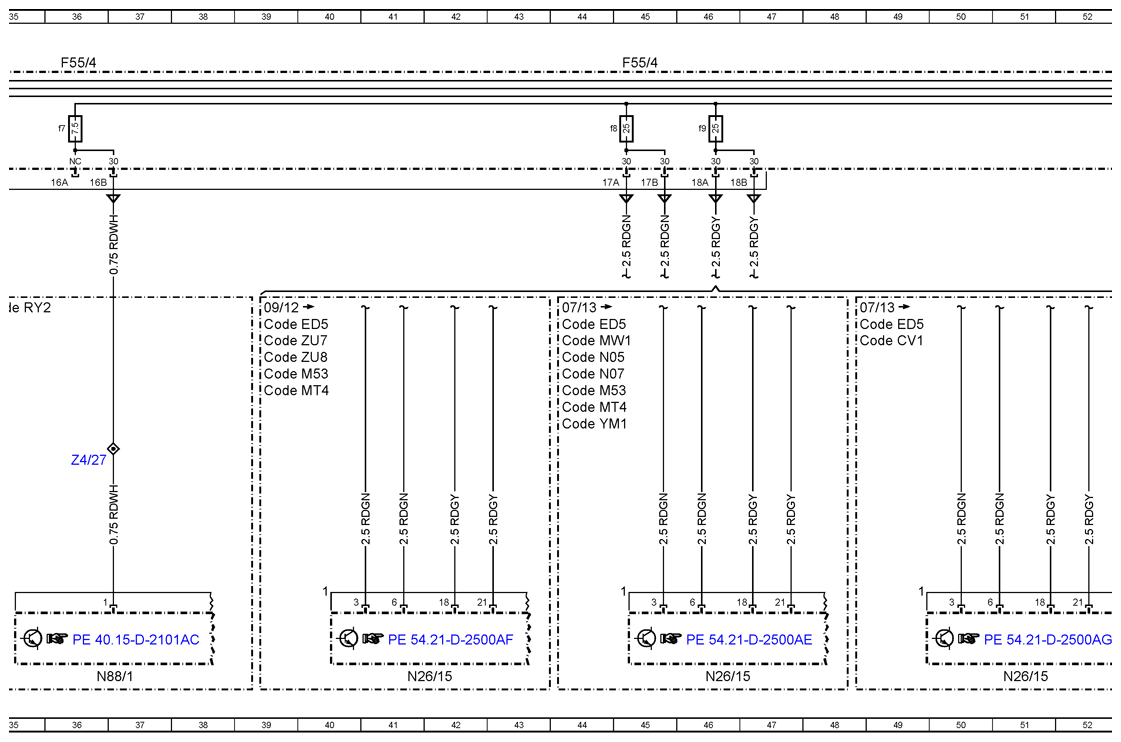

| F55/4f8 |
Parameterizable special module (PSM) fuse 17 |
44B |
| F55/4f9 |
Parameterizable special module (PSM) fuse 18 |
46B |
| K27 |
Fuel pump relay |
22L |
| K40/9 |
Fuse and relay module |
4L |
| K40/9f18 |
Circuit 15 fuse |
3L |
| K88 |
Body manufacturer circuit 15 relay |
7L |
| K88/1 |
Body manufacturer circuit D+ relay |
14L |
| N10 |
SAM control unit |
11L |
| N118/5 |
Fuel pump control unit |
18L |
| N26/15 |
Parameterizable special module (PSM) control unit |
41L |
| N26/15 |
Parameterizable special module (PSM) control unit |
46L |
| N26/15 |
Parameterizable special module (PSM) control unit |
51L |
| N28/1 |
Trailer connection unit [AAG] control unit |
33L |
| N28/1 |
Trailer connection unit [AAG] control unit |
32L |
| N28/4 |
Trailer recognition control unit |
33L |
| N88/1 |
Tire pressure monitor (RDK) control unit |
36L |
| U194 |
Val id without code KP1 (Fuel pump, electric, controlled) |
20E |
| U195 |
Valid without code KP3 (Fuel pump, electric, controlled, stage 2) |
20E |
| U72 |
Valid for all except USA, Canada |
31F |
| U72 |
Valid for all except USA, Canada |
1G |
| W71/1 |
Driver seat frame ground point 1 |
8H |
| W71/1 |
Driver seat frame ground point 1 |
14H |
| X145/1 |
Body manufacturer electrical connector |
7F |
| X176/3 |
Low frame electrical connector 3 |
30L |
| X52/7 |
Trailer socket electrical connector |
26L |
| X58 |
Trailer socket (13-pin) |
24L |
| X58/11 |
Electrical connector for trailer socket (10-pin) |
28L |
| Z26/1 |
Circuit D+ connector sleeve |
14G |
| Z3/65 |
Tml. 15 connector sleeve |
2H |
| Z4/27 |
Tire pressure monitor (TPM [RDK]) circuit 30 connector sleeve |
36G |

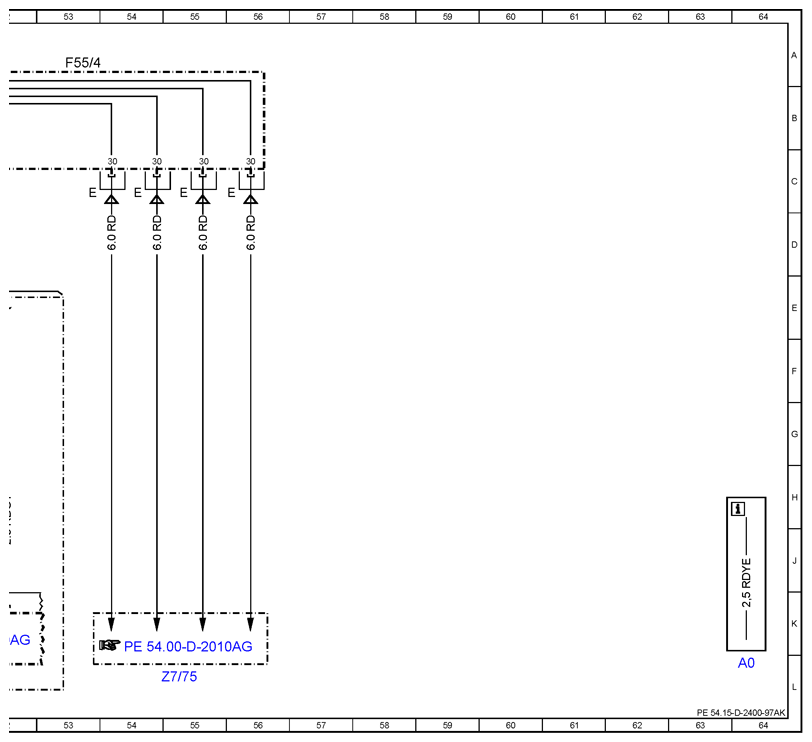

| Z7/75 |
Tml. 30 connector sleeve |
55L |
