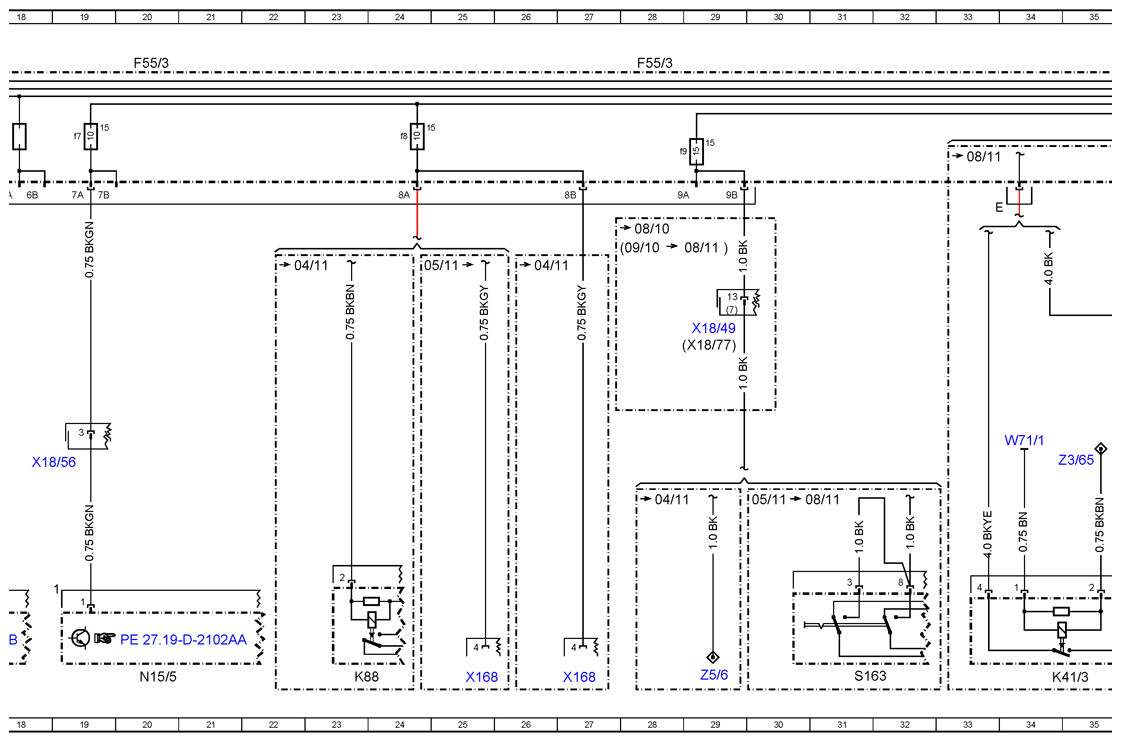

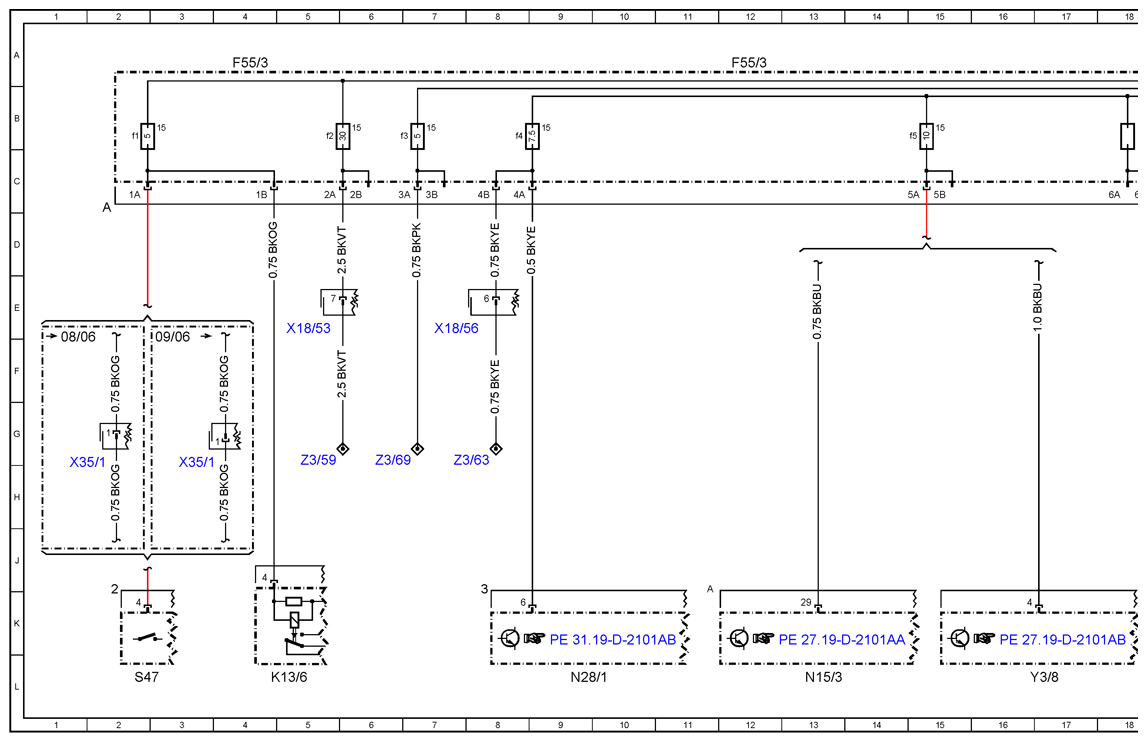

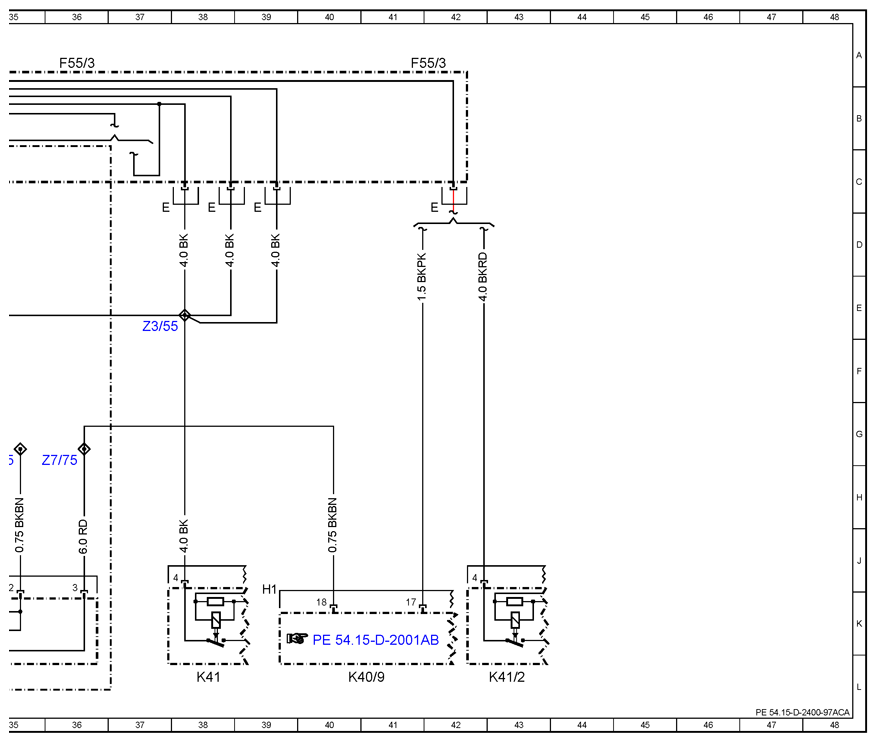

| F55/3 |
Fuse block (9 fuses) |
4A |
| F55/3 |
Fuse block (9 fuses) |
12A |
| F55/3 |
Fuse block (9 fuses) |
20A |
| F55/3 |
Fuse block (9 fuses) |
28A |
| F55/3 |
Fuse block (9 fuses) |
36A |
| F55/3 |
Fuse block (9 fuses) |
41A |
| F55/3f1 |
Fuse 1 (5 A), mirror adjustment, heated rear window relay |
2B |
| F55/3f2 |
Fuse 2 (30 A), rear wiper |
5B |
| F55/3f3 |
Fuse 3 (5 A), start-off assist, heater timer, backup camera, telephone |
6B |
| F55/3f4 |
Fuse 4 (7.5 A), AAG, tachograph, ADR |
8B |
| F55/3f5 |
Fuse 5 (10 A), EGS tml. 87 |
15B |
| F55/3f7 |
Fuse 7 (10 A), ESM [EWM] |
19B |
| F55/3f8 |
Fuse 8 (10 A), three-way dump truck/cargo lift gate tml. 15 |
24B |
| F55/3f9 |
Fuse 9 (15 A), multitone horn/roof fan |
28C |
| K13/6 |
Heated rear window with EDW relay 2 |
5L |
| K40/9 |
Fuse/relay box (SRB) |
40L |
| K41 |
Tml. 15 relief relay |
38L |
| K41/2 |
Tml. 15R relief relay |
43L |
| K41/3 |
Tml. 15 relief relay 2 |
34L |
| K88 |
Body manufacturer tml. 15 relay |
23L |
| N15/3 |
ETC [EGS] control unit |
13L |
| N15/5 |
EWM control unit |
20L |
| N28/1 |
Trailer connection unit [AAG] control unit |
9L |
| S163 |
Roof ventilator switch |
31L |
| S47 |
Driver door control panel |
2L |
| W71/1 |
Driver seat frame ground point 1 |
34G |
| X168 |
Cargo lift gate connector |
25L |
| X168 |
Cargo lift gate connector |
27L |
| X18/49 |
HLS/COC connector 2 |
29E |
| X18/53 |
HLS/roof connector 2 |
5E |
| X18/56 |
HLS/COC connector |
19H |
| X18/56 |
HLS/COC connector |
7E |
| X18/77 |
HLS/COC connector 6 |
29F |
| X35/1 |
Driver door/MWH connector 1 |
2H |
| X35/1 |
Driver door/MWH connector 1 |
3H |
| Y3/8 |
Electric control unit |
17L |
| Z3/55 |
Tml. 15 connector sleeve |
37E |
| Z3/59 |
Rear-end door wiper motor tml. 15 connector sleeve |
5G |
| Z3/63 |
ADR tml. 15 connector sleeve |
8G |
| Z3/65 |
Tml. 15 connector sleeve |
35G |
| Z3/69 |
Tml. 15 connector sleeve |
6G |
| Z5/6 |
Roof ventilator connector sleeve |
29L |
| Z7/75 |
Tml. 30 connector sleeve |
36G |
