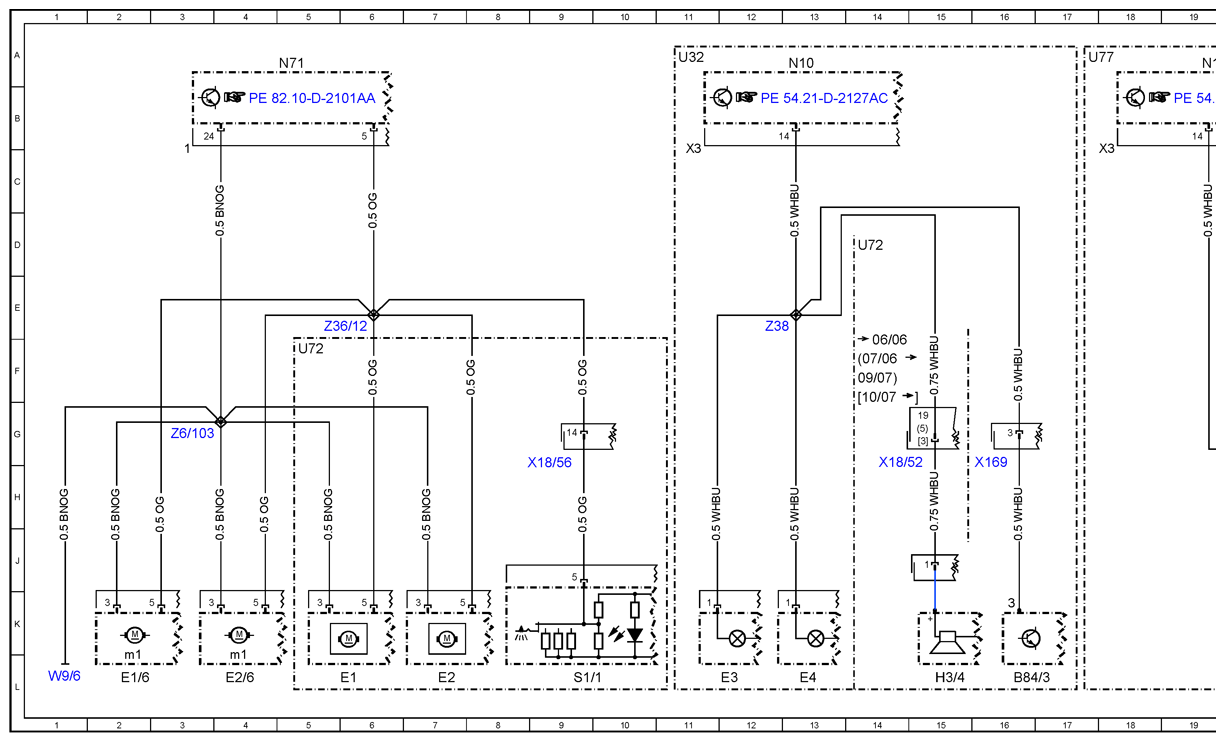

| B84/3 |
Backup camera |
16L |
| E1 |
Left lamp unit |
6L |
| E1/6 |
Left XENON lamp unit |
2L |
| E1/6m1 |
Headlamp range adjustment motor |
2L |
| E2 |
Right lamp unit |
7L |
| E2/6 |
Right XENON lamp unit |
4L |
| E2/6m1 |
Headlamp range adjustment motor |
4L |
| E3 |
Left tail lamp |
12L |
| E3 |
Left tail lamp |
23L |
| E4 |
Right tail lamp |
13L |
| E4 |
Right tail lamp |
24L |
| H3/4 |
Backup warning horn |
15L |

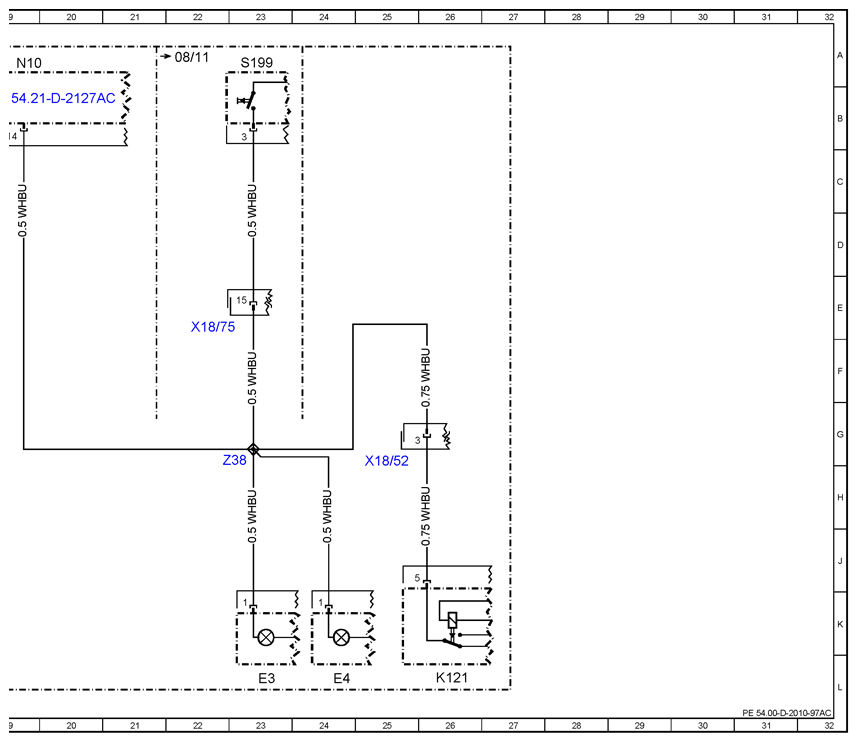

| K121 |
Backup warning OFF relay |
26L |
| N10 |
SAM control unit |
13A |
| N10 |
SAM control unit |
19A |
| N71 |
LWR control unit |
5A |
| S1/1 |
Headlamp range controller |
9L |
| S199 |
Backup warning OFF button |
23A |
| U32 |
Val id for MPV version |
IIA |
| U72 |
Valid for all except USA, Canada |
5F |
| U72 |
Valid for all except USA, Canada |
14D |
| U77 |
Valid for backup warning system |
17A |
| W9/6 |
Left front lamp unit ground point |
1L |
| X169 |
Backup camera connector |
16H |
| X18/52 |
HLS/roof connector |
14H |
| X18/52 |
HLS/roof connector |
25H |
| X18/56 |
HLS/COC connector |
9H |
| X18/75 |
COC/roof connector 5 |
22E |
| Z36/12 |
HRA [LWR] control bus connector sleeve |
6E |
| Z38 |
Backup lamp connector sleeve |
12E |
| Z38 |
Backup lamp connector sleeve |
23G |
| Z6/103 |
LWR ground connector sleeve |
3G |
