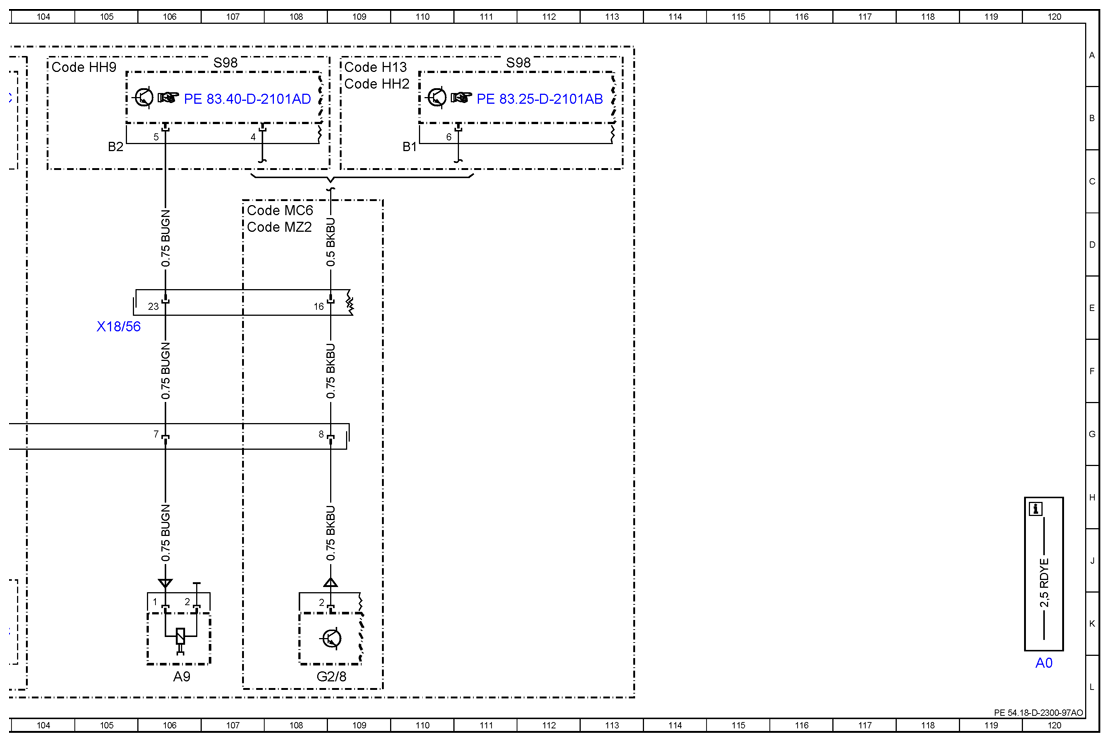

| AO |
Color code key |
120L |

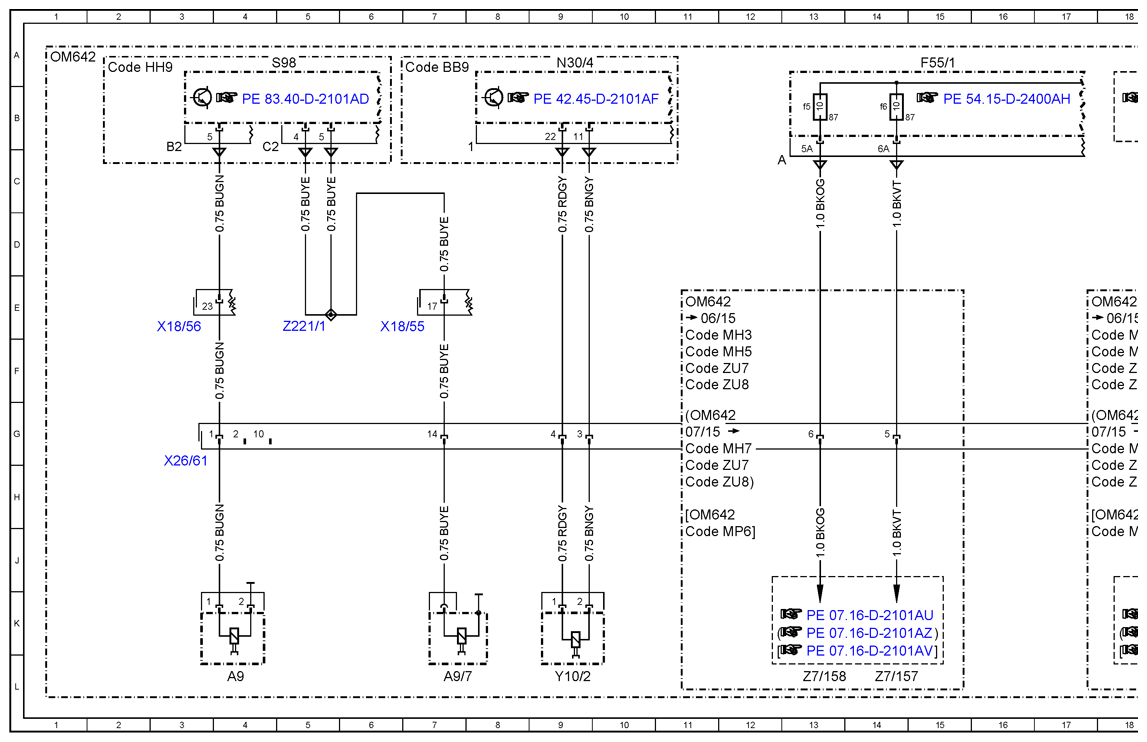

| A9 |
Refrigerant compressor |
4L |
| A9 |
Refrigerant compressor |
87L |
| A9 |
Refrigerant compressor |
106L |
| A9 |
Refrigerant compressor |
35L |

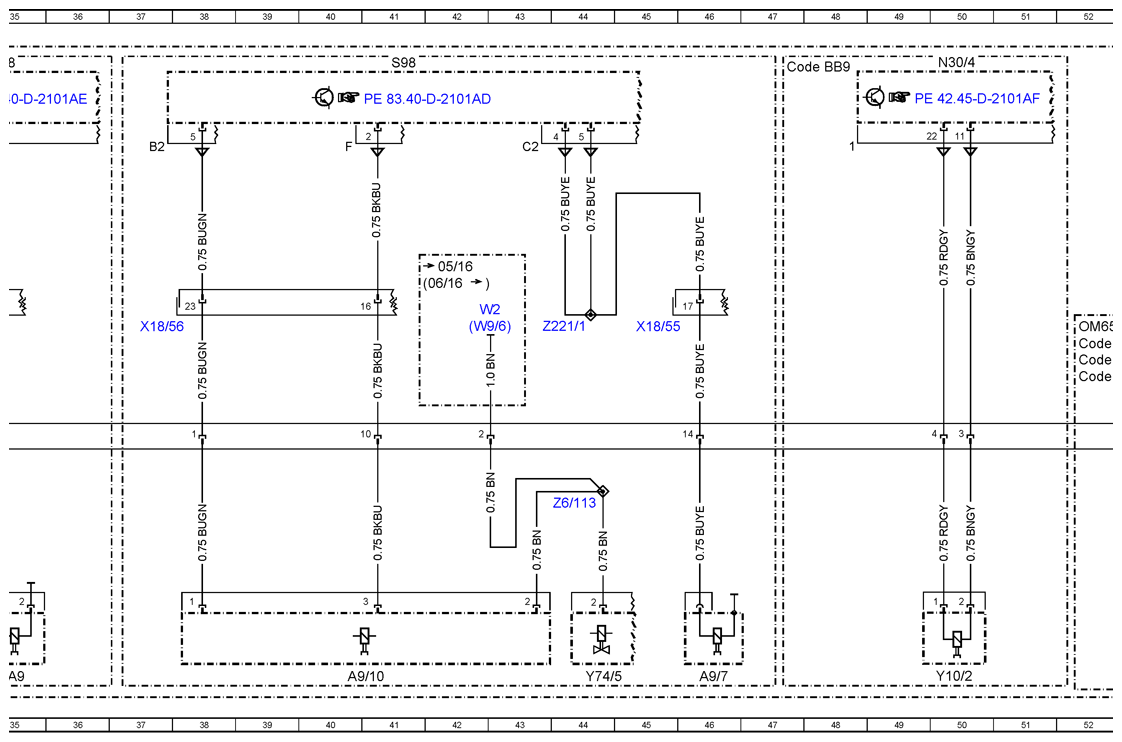

| A9/10 |
Refrigerant compressor with magnetic clutch |
40L |
| A9/7 |
2nd refrigerant compressor |
7L |
| A9/7 |
2nd refrigerant compressor |
90L |
| A9/7 |
2nd refrigerant compressor |
46L |

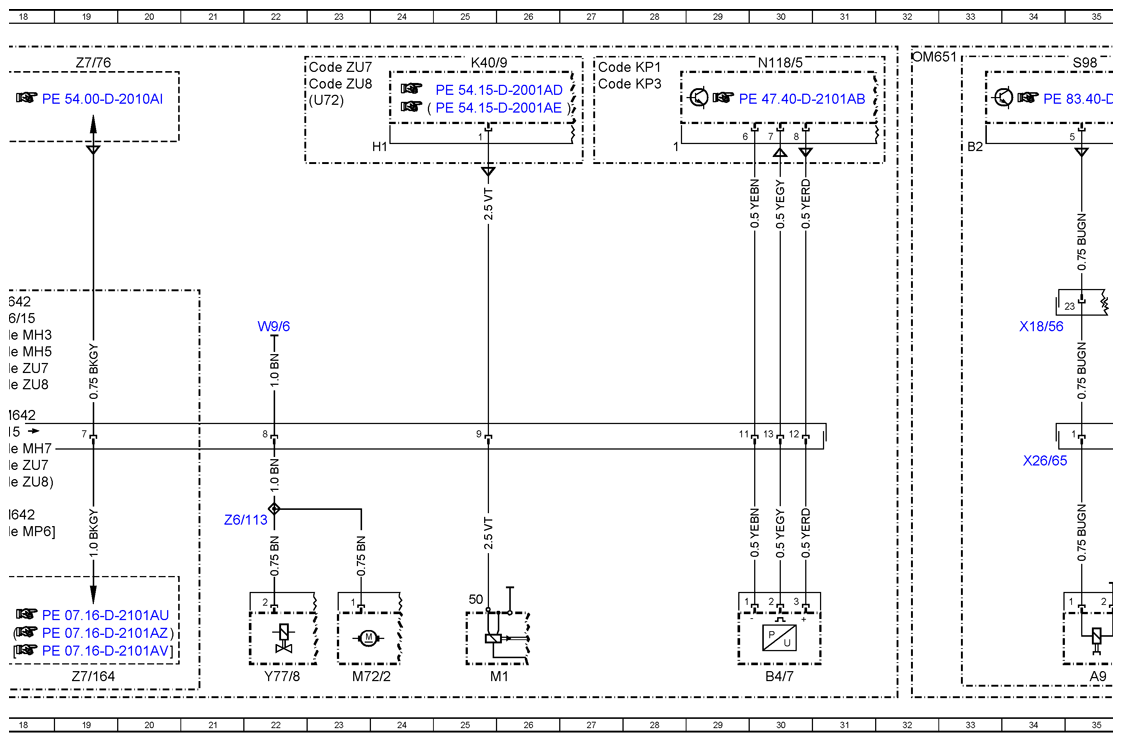

| B4/7 |
Low-pressure fuel sensor |
30L |
| B4/7 |
Low-pressure fuel sensor |
75L |
| Code BB9 |
|
7A |
| Code BB9 |
|
47A |
| Code H13 |
Additional heat exchanger in passenger/load compartment |
109A |
| Code HH2 |
Electric auxiliary air heater |
109B |
| Code HH9 |
Semi-automatic air conditioning, TEMPMATIC |
2A |
| Code HH9 |
Semi-automatic air conditioning, TEMPMATIC |
85A |
| Code HH9 |
Semi-automatic air conditioning, TEMPMATIC |
104A |
| Code KP1 |
Fuel pump, electric, controlled |
27A |
| Code KP1 |
Fuel pump, electric, controlled |
72A |
| Code KP3 |
Fuel pump, electric, controlled, stage 2 |
27B |
| Code KP3 |
Fuel pump, electric, controlled, stage 2 |
72B |
| Code MA4 |
Low-emission vehicle Euro 5b+ Gr. III |
58B |
| Code MA4 |
Low-emission vehicle Euro 5b+ Gr. III |
58H |
| Code MA6 |
Low-emission vehicle, Euro 6 Gr. III |
58C |
| Code MA6 |
Low-emission vehicle, Euro 6 Gr. III |
58K |
| Code MB6 |
Low-emission vehicle, Euro 6 Gr. 1 |
58C |
| Code MB6 |
Low-emission vehicle, Euro 6 Gr. 1 |
58K |
| Code MC6 |
Engine M271 E 18 ML 115 kW (156 hp) 5000 rpm |
107D |
| Code MH3 |
Low-emission engine EPA 13/CARB |
11F |
| Code MH3 |
Low-emission engine EPA 13/CARB |
17F |
| Code MH5 |
Low-emission engine EPA 14/CARB |
11F |
| Code MH5 |
Low-emission engine EPA 14/CARB |
17F |
| Code MH5 |
Low-emission engine EPA 14/CARB |
52F |
| Code MH5 |
Low-emission engine EPA 14/CARB |
63B |
| Code MH5 |
Low-emission engine EPA 14/CARB |
63H |
| Code MH7 |
Low-emission engine EPA 16/CARB |
11G |
| Code MH7 |
Low-emission engine EPA 16/CARB |
17G |
| Code MP6 |
Euro VI engine version |
11J |
| Code MP6 |
Euro VI engine version |
17J |
| Code MP6 |
Euro VI engine version |
58B |
| Code MP6 |
Euro VI engine version |
58J |
| Code MZ2 |
Natural gas engine M271 |
99A |
| Code MZ2 |
Natural gas engine M271 |
107D |
| Code ZU7 |
Canada national version |
11F |
| Code ZU7 |
Canada national version |
11H |
| Code ZU7 |
Canada national version |
23A |
| Code ZU7 |
Canada national version |
17F |
| Code ZU7 |
Canada national version |
17H |
| Code ZU7 |
Canada national version |
52F |
| Code ZU7 |
Canada national version |
63B |
| Code ZU7 |
Canada national version |
63J |
| Code ZU8 |
USA national version |
11F |
| Code ZU8 |
USA national version |
11H |
| Code ZU8 |
USA national version |
23B |
| Code ZU8 |
USA national version |
17F |
| Code ZU8 |
USA national version |
17H |
| Code ZU8 |
USA national version |
52F |
| Code ZU8 |
USA national version |
63B |
| Code ZU8 |
USA national version |
63J |

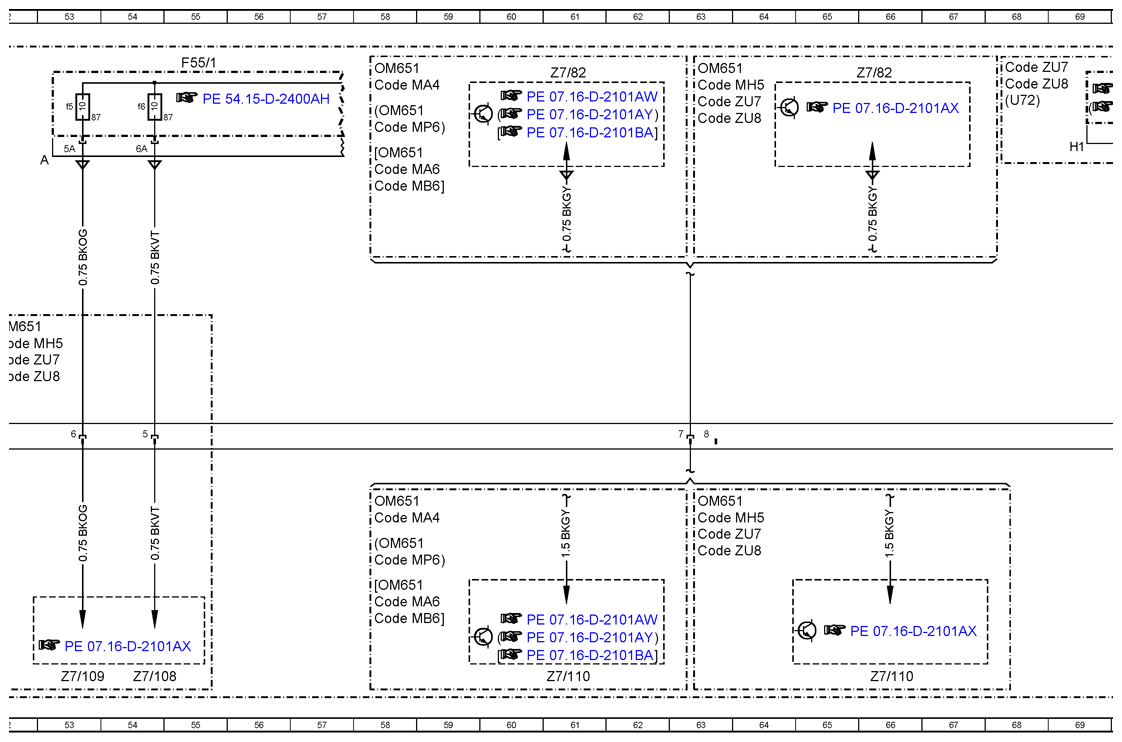

| F55/1 |
Fuse block (1, 9-pin) |
15A |
| F55/1 |
Fuse block (1, 9-pin) |
55A |
| F55/1f5 |
Motors terminal 87 (5) fuse 5 |
13B |
| F55/1f5 |
Motors terminal 87 (5) fuse 5 |
53B |
| F55/1f6 |
Motors terminal 87 (6) fuse 6 |
14B |
| F55/1f6 |
Motors terminal 87 (6) fuse 6 |
54B |
| G2/8 |
Alternator |
108L |

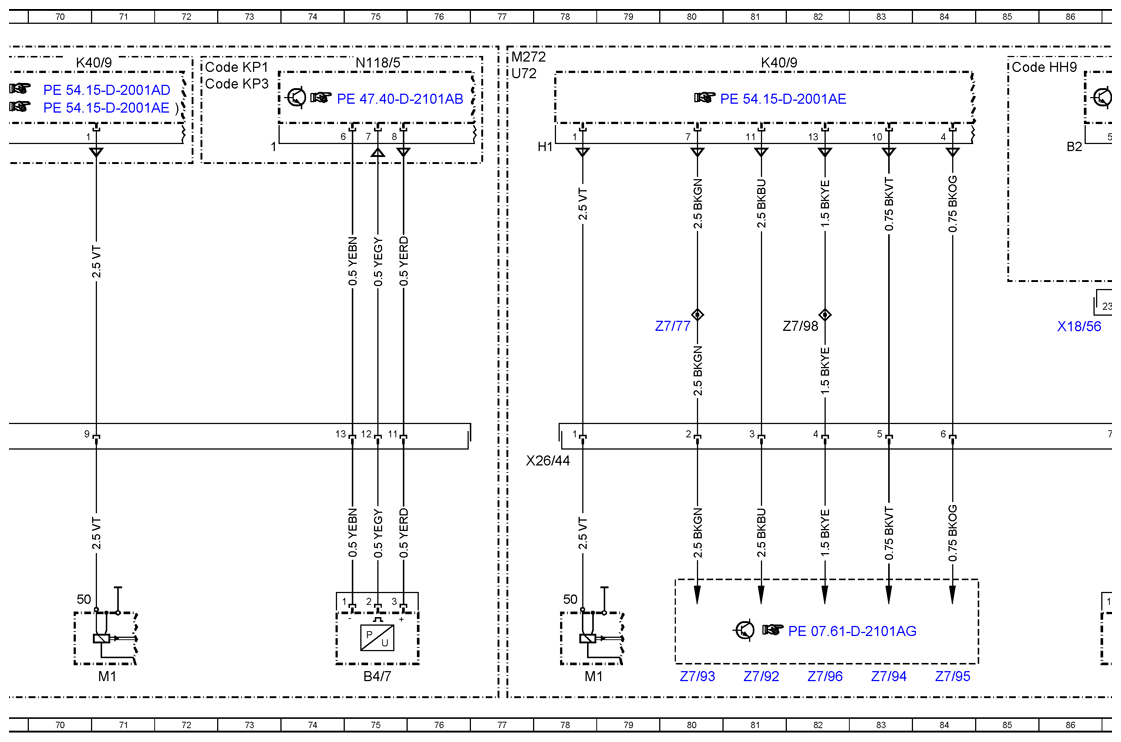

| K40/9 |
Fuse and relay module |
25A |
| K40/9 |
Fuse and relay module |
70A |
| K40/9 |
Fuse and relay module |
81A |
| K40/9 |
Fuse and relay module |
94A |
| M1 |
Starter |
25L |
| M1 |
Starter |
71L |
| M1 |
Starter |
78L |
| M1 |
Starter |
94L |
| M72/2 |
Intake port shutoff actuator |
23L |
| N118/5 |
Fuel pump control unit |
30A |
| N118/5 |
Fuel pump control unit |
75A |
| N30/4 |
ESP® control unit |
9A |
| N30/4 |
ESP® control unit |
50A |
| S98 |
AC control and operating unit |
5A |
| S98 |
AC control and operating unit |
88A |
| S98 |
AC control and operating unit |
107A |
| S98 |
AC control and operating unit |
111A |
| S98 |
AC control and operating unit |
41A |
| S98 |
AC control and operating unit |
35A |
| U72 |
Valid for all except USA, Canada |
77A |
| U72 |
Valid for all except USA, Canada |
92A |
| U72 |
Valid for all except USA, Canada |
68B |
| U72 |
Valid for all except USA, Canada |
23B |
| W2 |
Right front lamp unit ground point |
42E |
| W9/6 |
Left front lamp unit ground point |
22E |
| W9/6 |
Left front lamp unit ground point |
42E |
| X18/55 |
MWH [HLS]/cockpit electrical connector 3 |
7E |
| X18/55 |
MWH [HLS]/cockpit electrical connector 3 |
90E |
| X18/55 |
MWH [HLS]/cockpit electrical connector 3 |
45E |
| X18/56 |
MWH [HLS]/cockpit electrical connector |
3E |
| X18/56 |
MWH [HLS]/cockpit electrical connector |
86E |
| X18/56 |
MWH [HLS]/cockpit electrical connector |
105E |
| X18/56 |
MWH [HLS]/cockpit electrical connector |
37E |
| X18/56 |
MWH [HLS]/cockpit electrical connector |
34E |

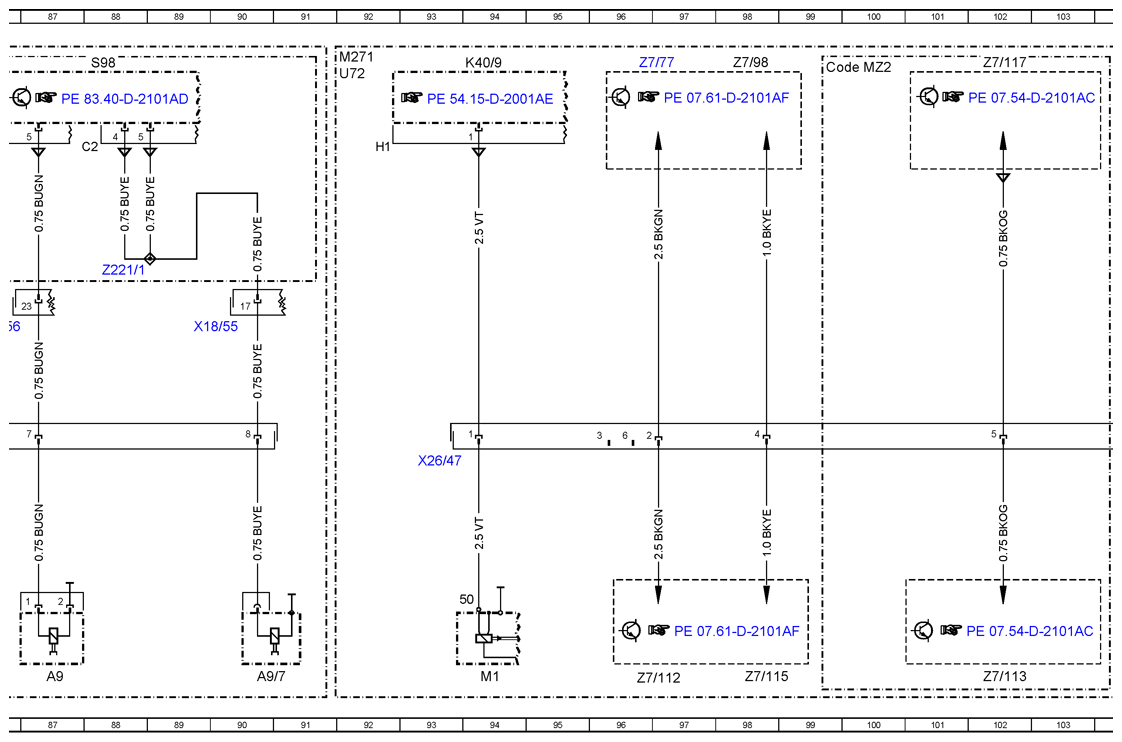

| X26/44 |
Engine wiring harness electrical connector |
78H |
| X26/47 |
Engine wiring harness electrical connector |
93H |
| X26/61 |
Engine wiring harness electrical connector |
3H |
| X26/65 |
Engine wiring harness electrical connector 4 |
34H |
| Y10/2 |
Power steering pump ECO valve |
9L |
| Y10/2 |
Power steering pump ECO valve |
50L |
| Y74/5 |
Pressure regulator valve |
44L |
| Y77/8 |
Boost pressure positioner |
22L |
| Z221/1 |
2nd refrigerant compressor connector sleeve |
5E |
| Z221/1 |
2nd refrigerant compressor connector sleeve |
88D |
| Z221/1 |
2nd refrigerant compressor connector sleeve |
44E |
| Z6/113 |
Ground connection connector sleeve |
44H |
| Z6/113 |
Ground connection connector sleeve |
22H |
| Z7/108 |
Circuit 87 connector sleeve |
54L |
| Z7/109 |
Circuit 87 connector sleeve |
53L |
| Z7/110 |
Circuit 87 connector sleeve |
61L |
| Z7/110 |
Circuit 87 connector sleeve |
66L |
| Z7/112 |
Circuit 87 connector sleeve, ignition coils |
96L |
| Z7/113 |
Circuit 87 connector sleeve, injection valves |
102L |
| Z7/115 |
Circuit 87 connector sleeve, sensors |
98L |
| Z7/117 |
Circuit 87 connector sleeve |
102A |
| Z7/157 |
Circuit 87 (1) connector sleeve |
14L |
| Z7/158 |
Circuit 87 (2) connector sleeve |
13L |
| Z7/164 |
Circuit 87 (3) connector sleeve |
19L |
| Z7/76 |
Circuit 87 connector sleeve |
19A |
| Z7/77 |
Circuit 87 connector sleeve |
80E |
| Z7/77 |
Circuit 87 connector sleeve |
96A |
| Z7/82 |
Circuit 87 connector sleeve |
61A |
| Z7/82 |
Circuit 87 connector sleeve |
66A |
| Z7/92 |
Circuit 87 connector sleeve |
81L |
| Z7/93 |
Circuit 87 connector sleeve |
80L |
| Z7/94 |
Circuit 87 connector sleeve |
83L |
| Z7/95 |
Circuit 87 connector sleeve |
84L |
| Z7/96 |
Circuit 87 connector sleeve |
82L |
| Z7/98 |
Circuit 87 connector sleeve |
82E |
| Z7/98 |
Circuit 87 connector sleeve |
98A |
