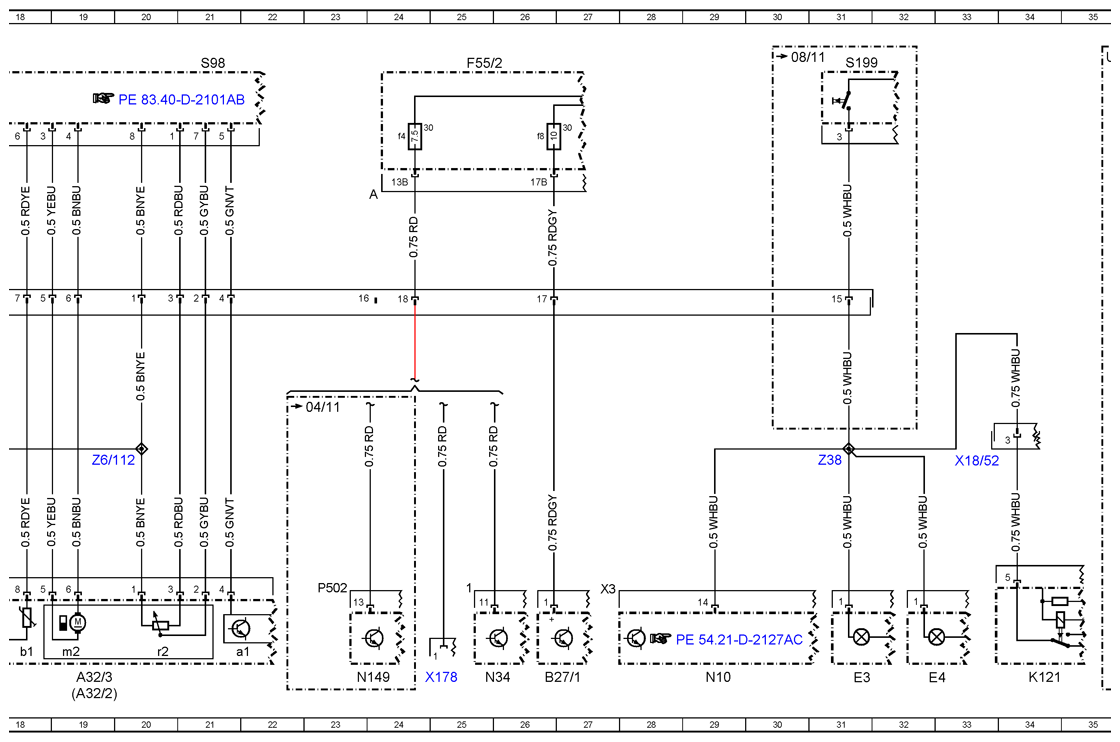

| A32/2 |
Rear automatic air conditioning recirculation unit |
19L |
| A32/2y1 |
Refrigerant shutoff valve |
17L |
| A32/3 |
Rear heavy duty automatic air conditioning recirculation unit |
19L |
| A32/3a1 |
Blower regulator |
21L |
| A32/3b1 |
Evaporator temperature sensor |
18L |
| A32/3m2 |
Blending air flap actuator motor |
19L |
| A32/3r2 |
Blend air flap potentiometer |
20L |
| A96 |
Backup camera monitor |
43L |
| B12/6 |
Roof refrigerant pressure sensor |
15L |
| B27/1 |
Motion sensor |
26L |
| B84/3 |
Backup camera |
40L |
| E15/3 |
Rear dome lamp |
8L |
| E15/32 |
Rear load compartment lamp |
10L |
| E3 |
Left taillamp |
31L |
| E4 |
Right taillamp |
32L |
| E42/1 |
Left front rotating beacon |
5L |
| E42/2 |
Right rear rotating beacon |
2L |
| F55/2 |
Fuse block (9 fuses) |
25A |
| F55/2f4 |
Fuse 13 (7.5 A), warm air heater timer/FleetBoard |
24B |
| F55/2f8 |
Fuse 17 (7.5/10 A), motion detector/comfort illumination |
26B |
| K121 |
Backup warning OFF relay |
34L |
| K9/5 |
Roof additional fan relay |
14L |
| N10 |
SAM control unit |
10A |
| N10 |
SAM control unit |
29L |
| N149 |
FleetBoard control unit |
23L |
| N34 |
Heater timer |
25L |
| N87/6 |
Radio/radio with navigation NG |
38A |

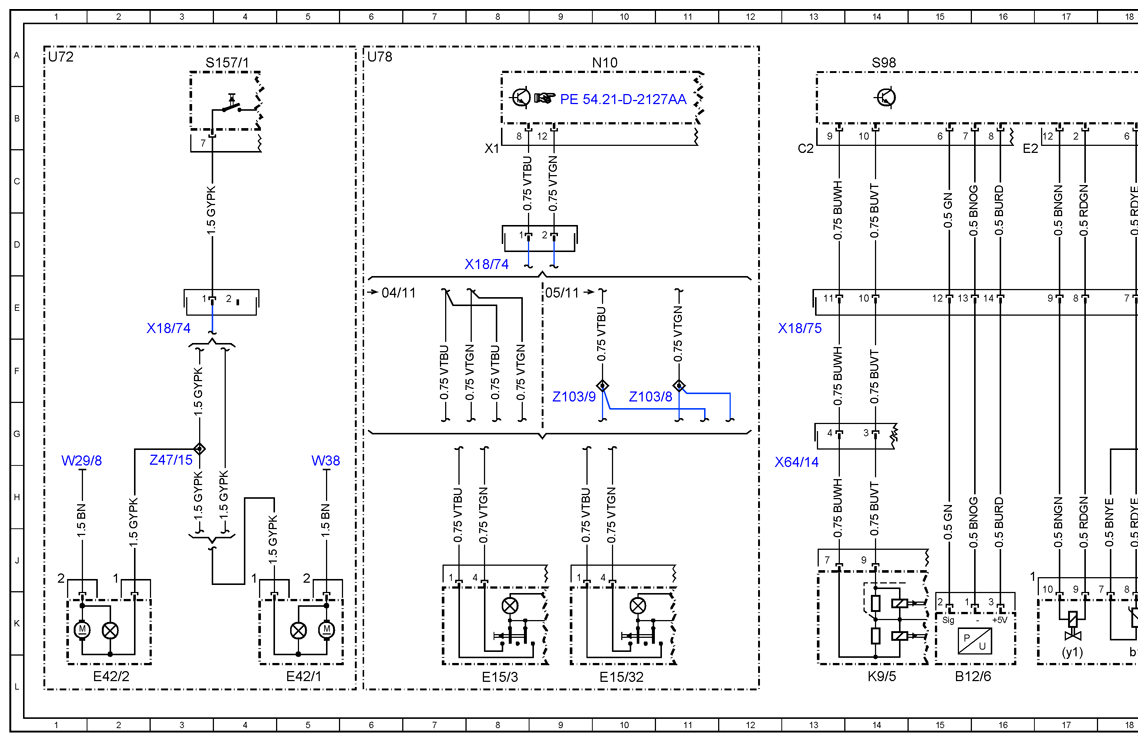

| S157/1 |
Rotating beacon switch |
4A |
| S199 |
Backup warning OFF button |
31A |
| S98 |
AAC [KLA] control and operating unit |
14A |
| S98 |
AAC [KLA] control and operating unit |
21A |
| U72 |
Valid for all except USA, Canada |
1A |
| U72 |
Valid for all except USA, Canada |
35A |
| U78 |
Val id for Mixto |
6A |
| W1/3 |
CLS cockpit ground point 1 |
44A |
| W29/8 |
Left D-pillar ground point |
1H |
| W29/8 |
Left D-pillar ground point |
37L |
| W38 |
Roof ground point |
5H |
| X169 |
Backup camera connector |
38H |
| X170 |
Backup camera monitor connector |
42H |
| X178 |
Front roof connector |
25L |
| X18/52 |
HLS/roof connector |
33H |
| X18/74 |
COC/roof connector 4 |
8D |
| X18/74 |
COC/roof connector 4 |
3E |
| X18/75 |
COC/roof connector 5 |
13E |
| X18/76 |
COC/roof connector 6 |
36F |
| X64/14 |
Roof double auxiliary fan connector |
13H |
| Z103/8 |
Interior lights ON connector sleeve |
10F |
| Z103/9 |
Door contact interior lights connector sleeve |
9F |
| Z28/84 |
Radio additional fan connector sleeve |
36D |
| Z38 |
Backup lamp connector sleeve |
31G |
| Z47/15 |
Rotating beacon connector sleeve |
3G |
| Z6/112 |
Temperature sensor ground connector sleeve |
19G |

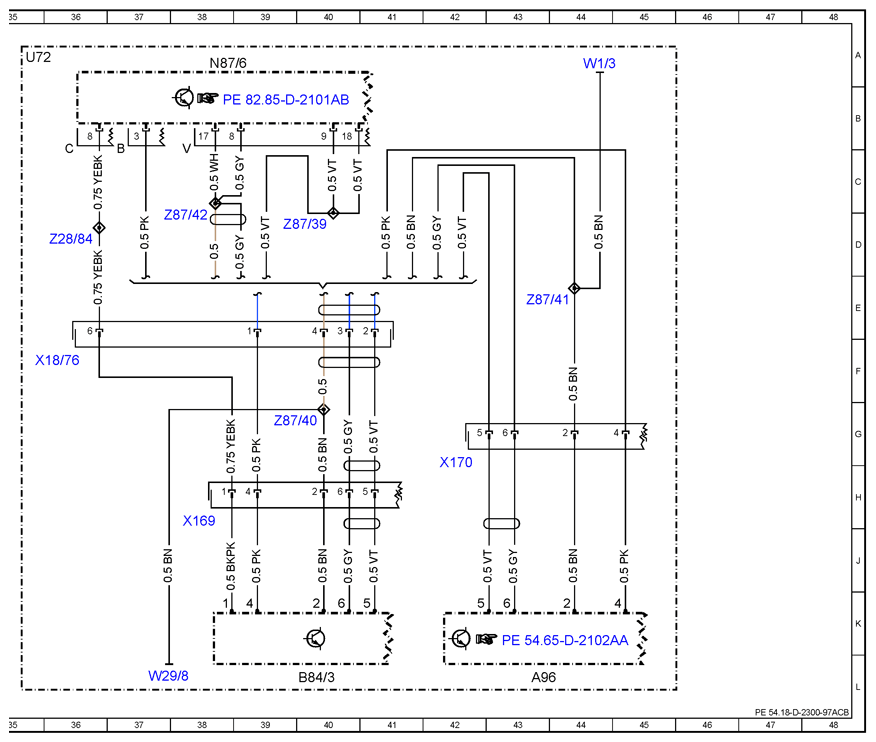

| Z87/39 |
Backup camera microphone connector sleeve |
40D |
| Z87/40 |
Backup camera microphone connector sleeve |
39G |
| Z87/41 |
Backup monitor microphone connector sleeve |
43E |
| Z87/42 |
Backup camera microphone connector sleeve |
38D |
