Seam Sealing Following Repair, Rear End Damage - Ar97.10-D-4000-02H
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1003-01A | White sealing compound, 310 ml, DBL 6069.20 | A 001 989 63 20 |
| BR00.45-Z-1041-01A | Seam sealant, sprayable 310 ml | A 002 989 84 20 |

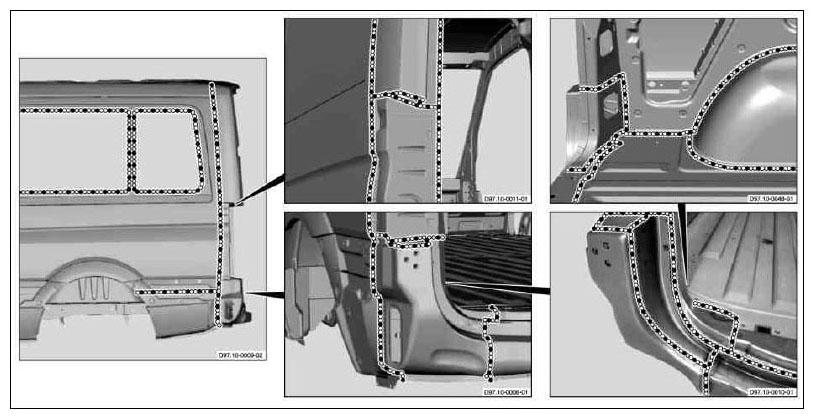

Area of side wall paneling and outer and inner left rear bottom section

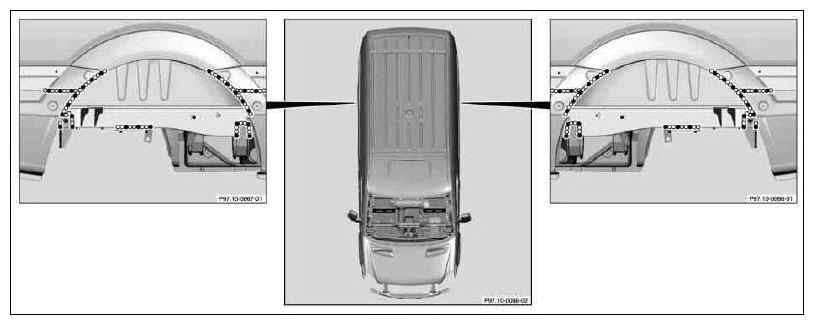

Right and left outer rear wheel well area

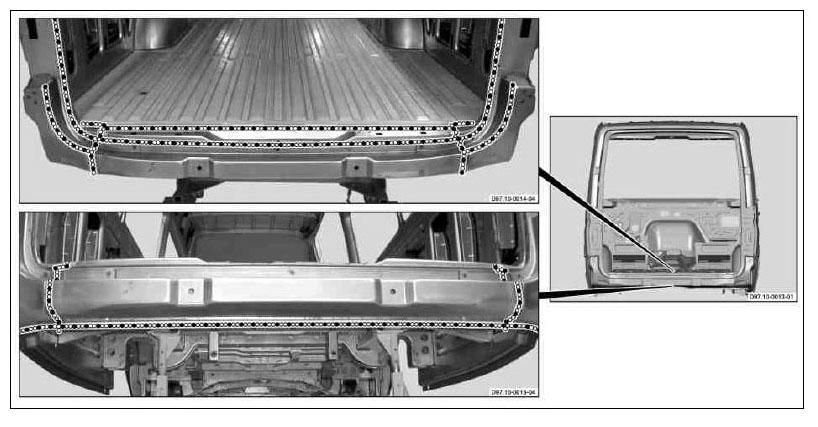

Area of end crossmember outer section on left and right side wall paneling

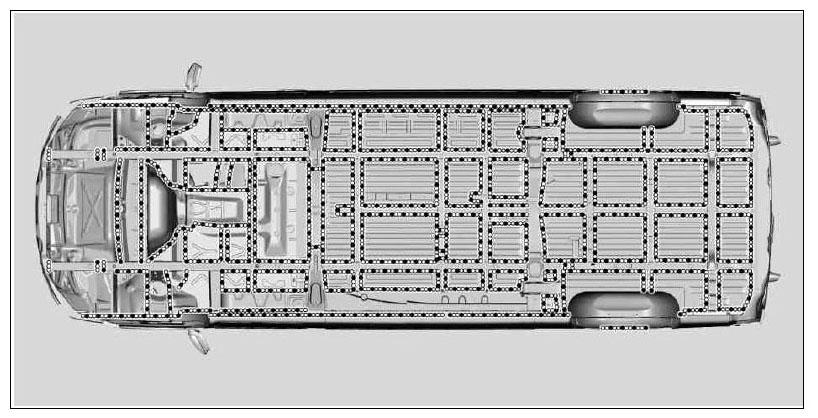

Overall underfloor area
- Seal spot welds with seam sealant in areas to be repaired Seal seam sealing material
Insert plastic plugs and grommets with sealing compound. Keep sealant out of threads on weld nuts and threaded bolts by masking or covering with cardboard sleeves. Also keep drain openings and contact surfaces for axle attachments, windows and detachable parts free of sealant.
It is necessary to seal accessible spot weld flanges on both sides. If accessible from one side, only seal corresponding surface.
Observe standard sealing!
