Seam Sealing Following Repair, Front End Damage - Ar97.10-D-4000-01H
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1003-01A | White sealing compound, 310 ml, DBL 6069.20 | A 001 989 63 20 |
| BR00.45-Z-1041-01A | Seam sealant, sprayable 310 ml | A 002 989 84 20 |

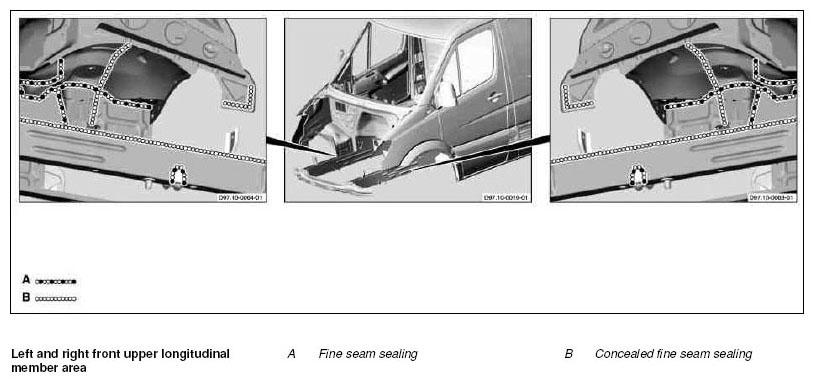

Left and right front upper longitudinal member area

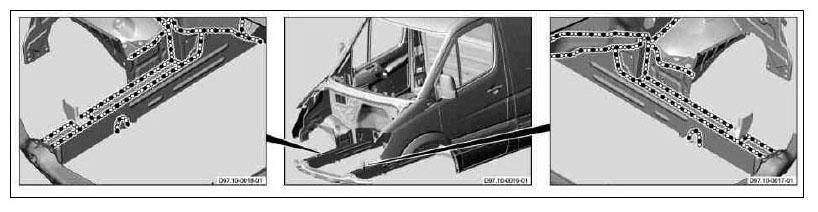

Left and right front side longitudinal member area

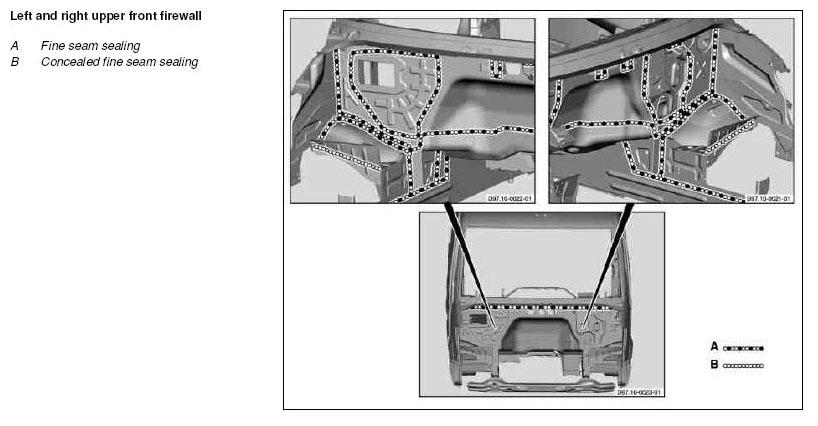

Left and right upper front firewall

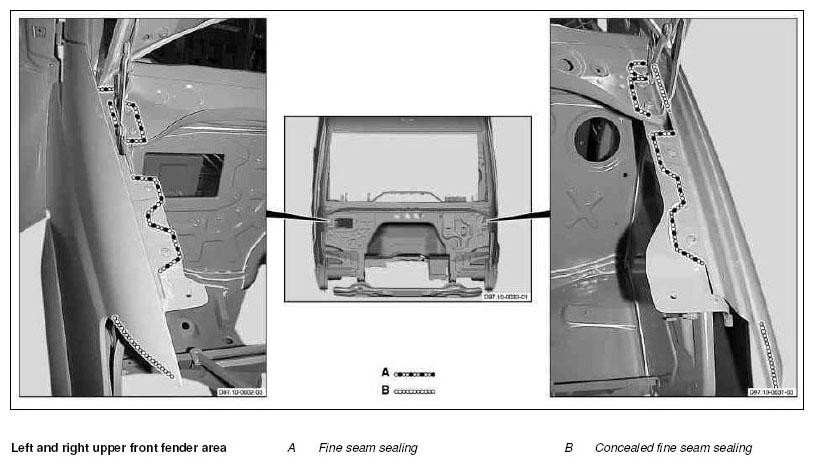

Left and right upper front fender area

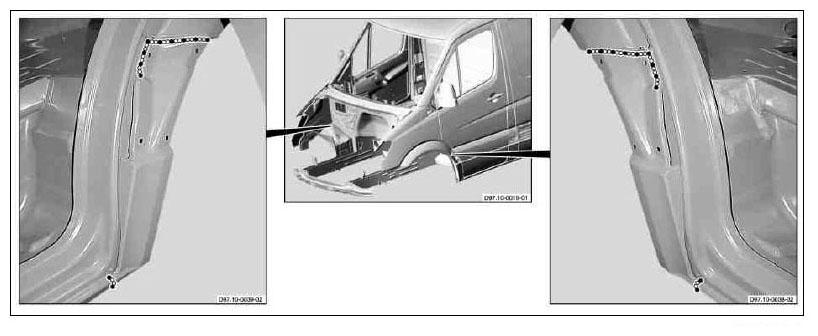

Front upper fender area on right and left A-pillar
Area below molding on left and right front fender

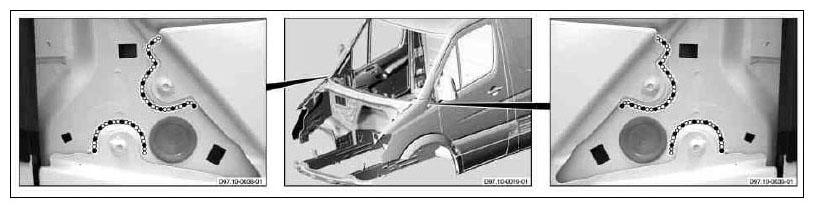

Front footwell area

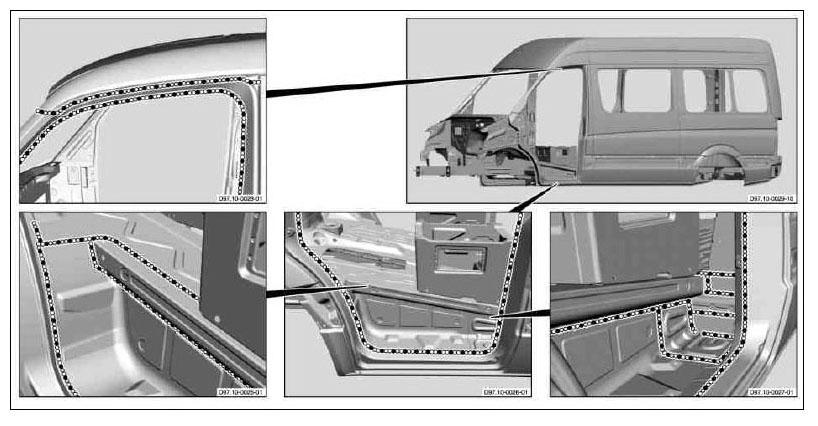

Upper door entry area on roof and left bottom

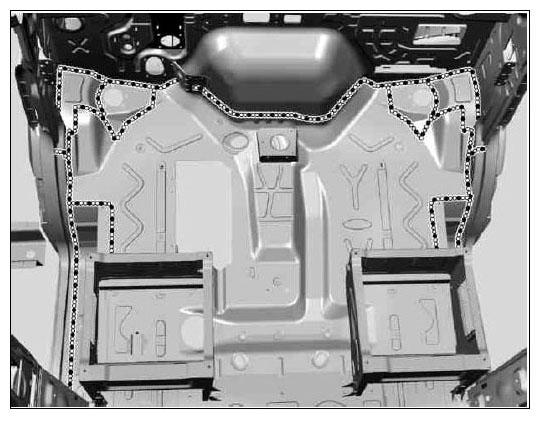

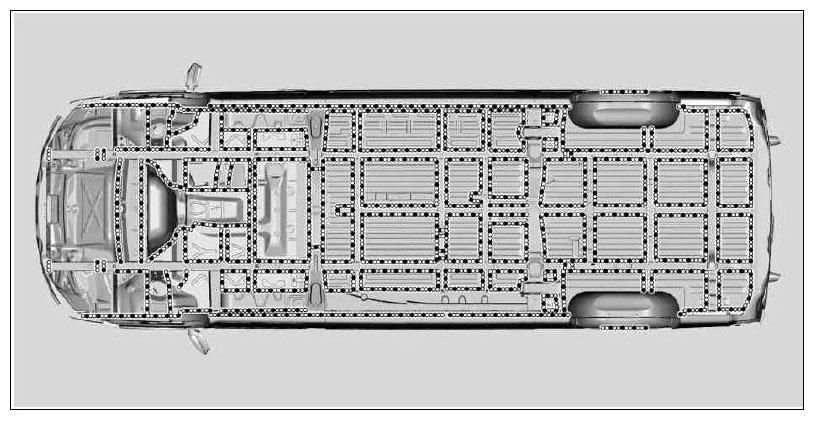

Overall underfloor area
- Seal spot welds with seam sealant in areas to be repaired Seal seam sealing material
Insert plastic plugs and grommets with sealing compound. Keep sealant out of threads on weld nuts and threaded bolts by masking or covering with cardboard sleeves. Also keep drain openings and contact surfaces for axle attachments, windows and detachable parts free of sealant.
It is necessary to seal accessible spot weld flanges on both sides. If accessible from one side, only seal corresponding surface.
Observe standard sealing!
