Install Rear Wall Partial Section - Ar64.10-D-5747-03HA

The work described in this document is shown on model 906.2.

1. Install rear wall (1), fit and fix in place with vise grip pliers.

   Vice grip pliers (standard)

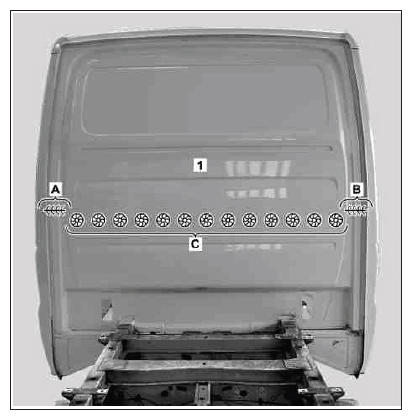

2. Rear wall (1) (areas A and B).

   Inert gas welder

3. Rear wall (1) (area C).

   Inert gas welder

   Courtesy of MERCEDES-BENZ USA

   Courtesy of MERCEDES-BENZ USA

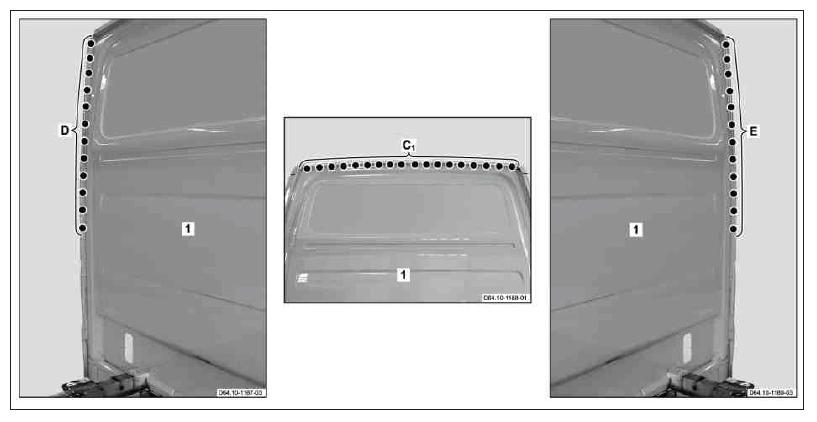

4. Rear wall (1) (areas C₁ , D and E).

   Multifunction device (spot welding)

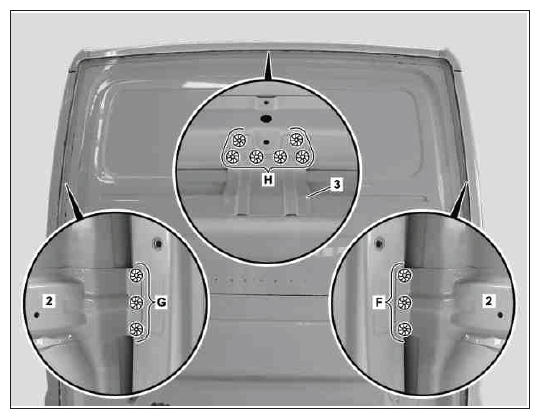

5. Upper crossmember (2) and connection element (3) (areas F, G and H).

   Inert gas welder

   Courtesy of MERCEDES-BENZ USA

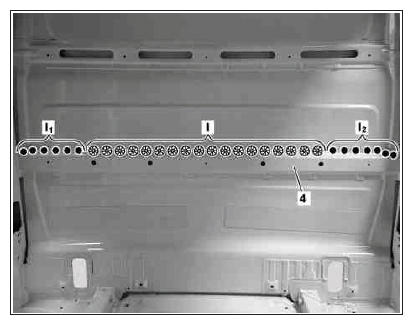

6. Lower crossmember (4) (areas I₁ and I₂ ).

   Multifunction device (spot welding)

7. Lower crossmember (4) (area I).

   Inert gas welder

Courtesy of MERCEDES-BENZ USA
