Install Rear Wall - Ar64.10-D-5746-03HA

Courtesy of MERCEDES-BENZ USA

The work described in this document is shown on model 906.2 without window cutout.

1. Install rear wall (1), fit and fix in place with vise grip pliers.

   Vice grip pliers (standard)

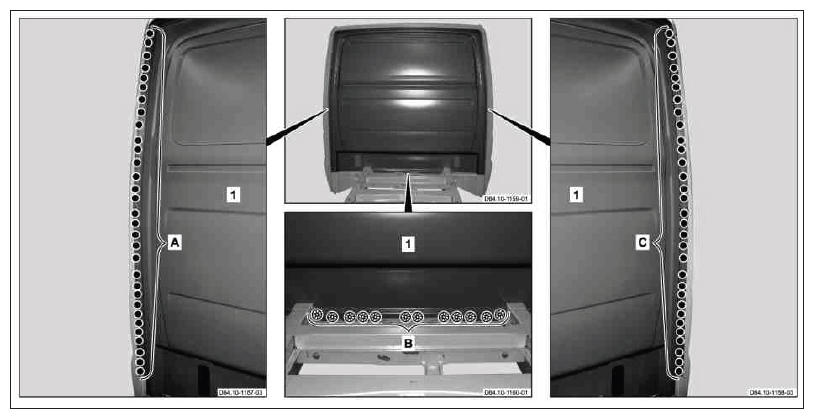

2. Rear wall (1) (areas A and C).

   Multifunction device (spot welding)

3. Rear wall (1) (area B).

   Inert gas welder

   Courtesy of MERCEDES-BENZ USA

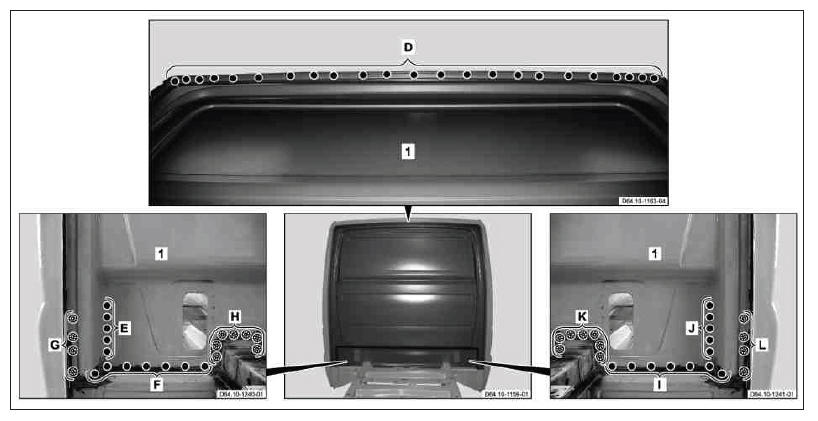

4. Rear wall (1) (areas D, E, F, I and J).

   Multifunction device (spot welding)

5. Rear wall (1) (areas G, H, K and L).

   Inert gas welder

   Courtesy of MERCEDES-BENZ USA

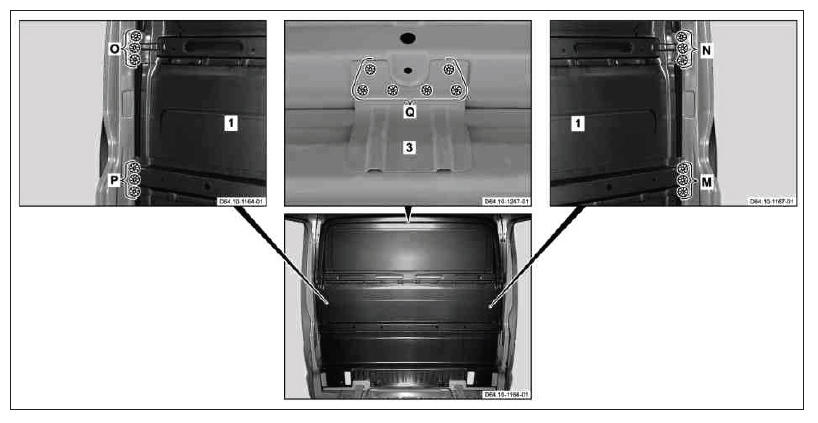

6. Upper crossmember, lower crossmember on rear wall (1) and reinforcement (3) (areas M, N, O, P and Q).

   Inert gas welder
