Weld In Outer Part Of End CROSSMEMBER - Ar64.20-D-1110-03H

G10889050Courtesy of MERCEDES-BENZ USA

IMPORTANT The following operation steps are shown on model 906.633.

  1. Install, align and fix end crossmember external part (1) in place.

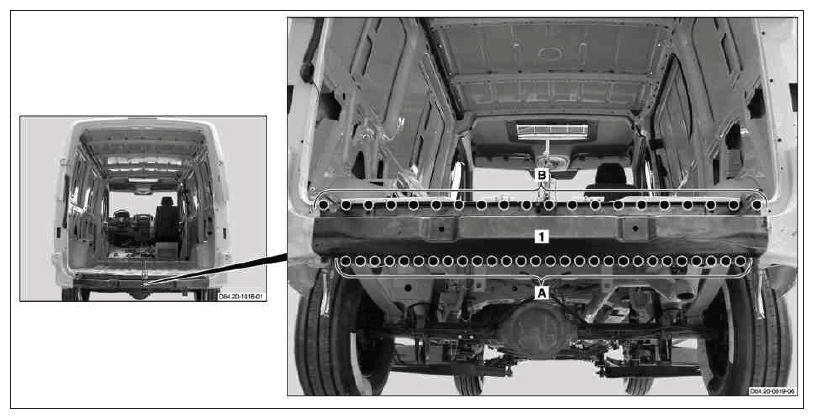

  2. End crossmember external part (1) POLARIZATION RESISTANCE SINGLE-ROW SPOT WELD (areas A and B).

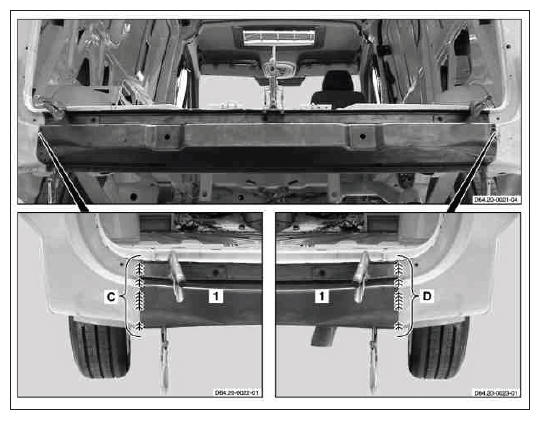

  3. End crossmember external part (1) SHIELDED GAS SEAM WELD INTERRUPTED (areas C and D).
G10889051Courtesy of MERCEDES-BENZ USA
