Weld In Inner Part Of End CROSSMEMBER - Ar64.20-D-1120-03H

Courtesy of MERCEDES-BENZ USA

The following steps are shown on model 906.733.

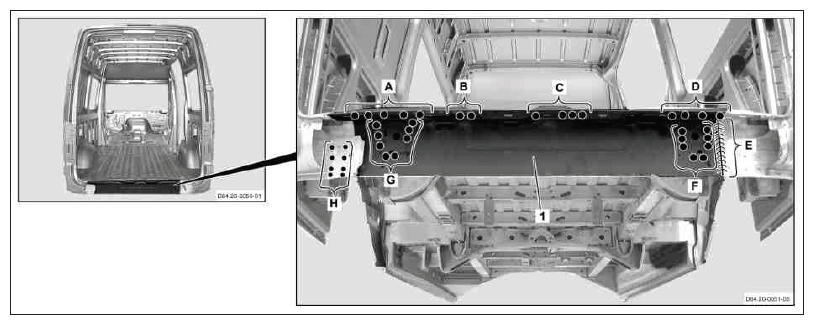

1. Install, align and fix end crossmember inner panel (1) in place.
2. End crossmember inner panel (1) (areas A, B, C, D, F, G and H).
3. End crossmember inner panel (1) (area E).

   Courtesy of MERCEDES-BENZ USA

4. Drill hole on end crossmember inner panel (1) with Ø 7 mm (area F).

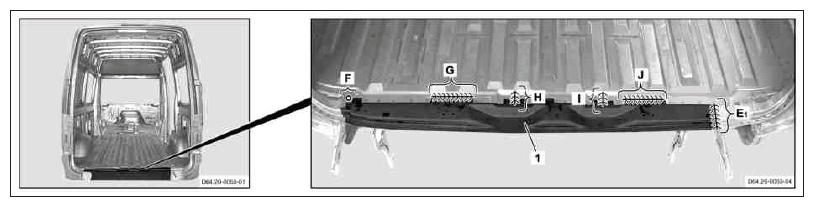

5. End crossmember inner panel (1) (areas E₁ , G, H, I and J).

   Courtesy of MERCEDES-BENZ USA

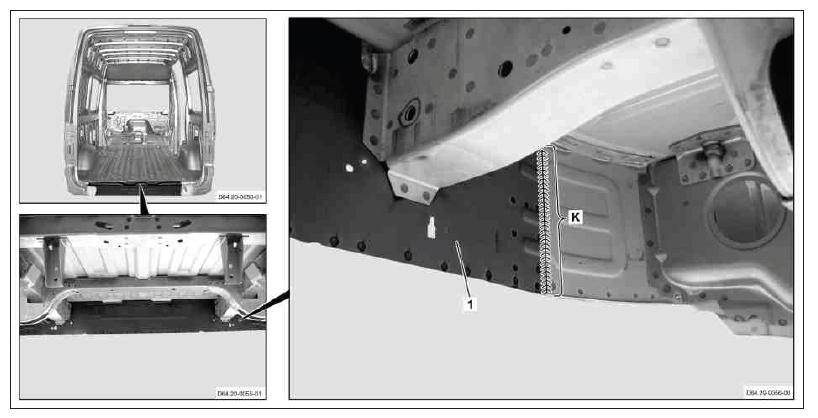

6. End crossmember inner panel (1) (area K).

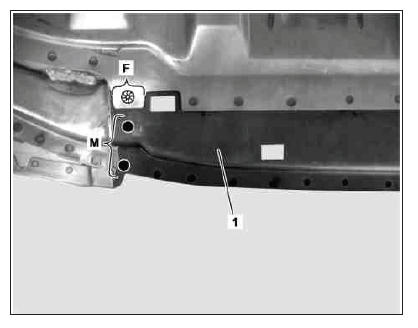

7. End crossmember inner panel (1) (area M).
8. End crossmember inner panel (1) (area F).
9. Clean weld joints on end crossmember inner panel (1).
10. Coat weld joints on end crossmember inner panel (1) with zinc dust paint.
