Prepare End CROSSMEMBER Inner Panel For Installation - Ar64.20-D-1120-02H

Courtesy of MERCEDES-BENZ USA

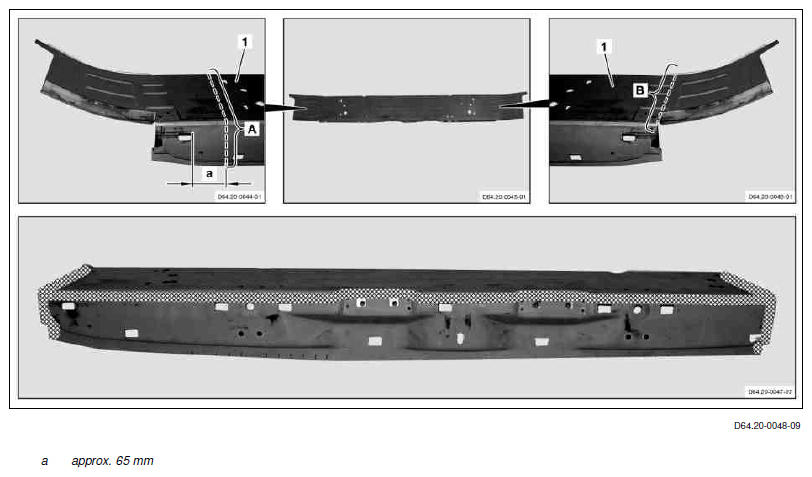

Dimension:

1. Scribe separation line on end crossmember inner panel (1) (areas A and B).

   Scribe separation line (area B) along bead.

2. Cut end crossmember inner panel (1) at separating points (areas A and B).
3. Grind mating surfaces down to bare metal in the crosshatched areas.

   Grind spot weld flanges down to bare metal on both sides.

4. Coat insides of spot weld flanges with zinc dust paint.

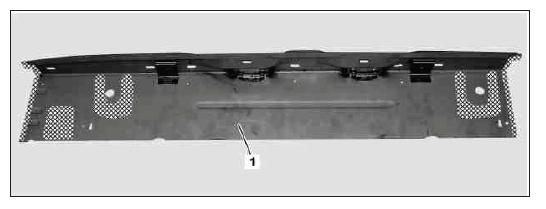

5. Grind mating surfaces on end crossmember inner panel (1) down to bare metal in crosshatched areas.

   Grind spot weld flanges down to bare metal on both sides.

6. Coat insides of spot weld flanges with zinc dust paint.
