Prepare End CROSSMEMBER External Part For Installation - Ar64.20-D-1110-02H

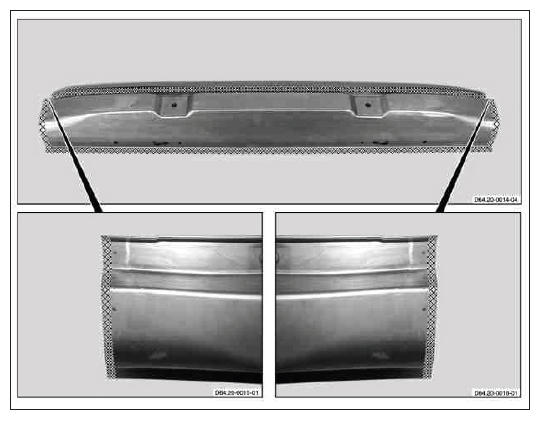

1. Grind mating surfaces on end crossmember external part down to bare metal in crosshatched areas.

   Grind spot weld flanges down to bare metal on both sides.

2. Remove shavings and drill chips.
3. Coat insides of spot weld flanges with zinc dust paint.
