Install Complete Outer Corner Pillar Paneling Upper Section And Weld In - Ar64.30-D-5731-03H

The following operation steps are shown on model 906.633 on the left side of the vehicle and must be performed analogously on the right side in the event of damage.

1. Install, align and fit outer corner pillar paneling upper section (1), connection (2) and inner panel (3) in place.

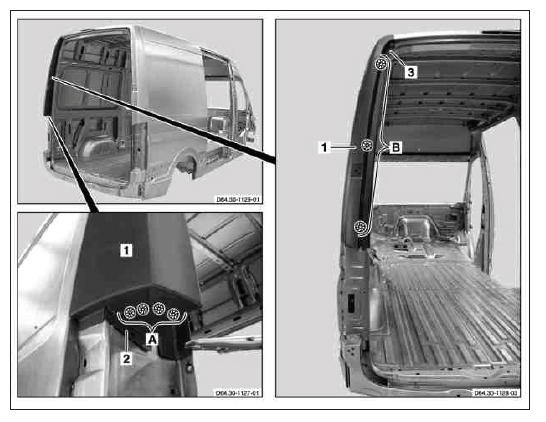

2. Tack-weld upper section of outer corner pillar paneling (1), connection (2) and inner panel (3) (areas A and B).
3. Remove tack-welded upper section of outer corner pillar paneling (1), connection (2) and inner panel (3).

   Courtesy of MERCEDES-BENZ USA

   Courtesy of MERCEDES-BENZ USA

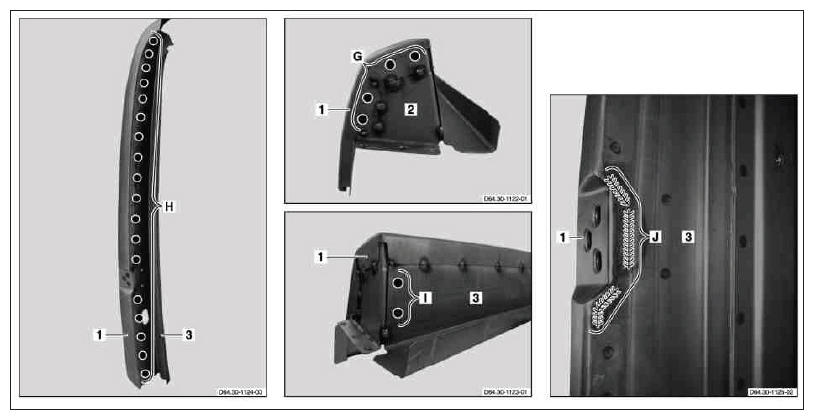

4. Upper section of outer corner pillar paneling (1), connection (2) and inner panel (3) (areas G, H and I).
5. Upper section of outer corner pillar paneling (1) on inner panel (3) (area J).
6. Install, align and fix upper section of outer corner pillar paneling (1) in place.

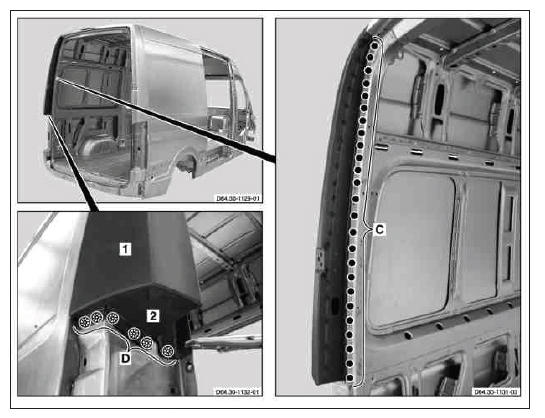

7. Upper section of outer corner pillar paneling (1) (area C).
8. Upper section of outer corner pillar paneling (1) and connection (2) (area D).

   Courtesy of MERCEDES-BENZ USA

   Courtesy of MERCEDES-BENZ USA

9. Inner panel (3) (area F).

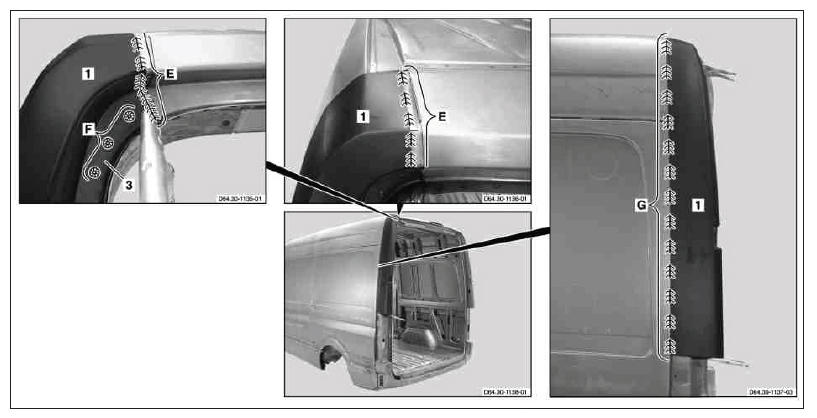

10. Tack-weld upper section of outer corner pillar paneling (1) (areas E and G).
11. Grind MIG plug welds down flat (area F).
12. Clean weld joints.
13. Remove sanding dust using wet/dry vacuum cleaner.
