| A1 |
Instrument cluster |
72L |

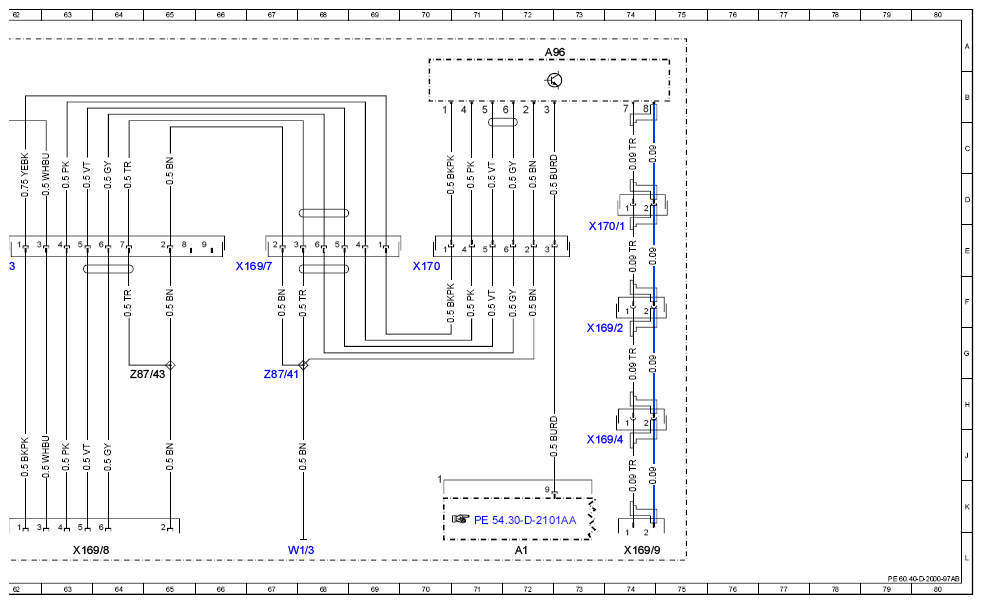

| A96 |
Backup camera monitor |
72A |
| B27/1 |
Motion sensor |
39L |
| B27/1x1 |
Motion sensor connector |
38H |
| B27/1x2 |
Motion sensor connector |
39H |
| E11/8 |
Reading lamp |
22L |
| E15/3 |
Rear dome lamp |
45L |
| E15/35 |
Rear dome lamp 2 |
41L |
| E15/36 |
Rear dome lamp 3 |
42L |
| E15/41 |
Rear dome lamp 4 |
44L |
| E19/8 |
Left end crossmember license plate lamp |
15L |
| E19/9 |
Right end crossmember license plate lamp |
13L |
| F55/2 |
Fuse block (9 fuses) |
13A |
| F55/2f8/1 |
Fuse 17 (10 A), reading and load compartment lamp |
13B |
| F55/3 |
Fuse block (9 fuses) |
18A |
| F55/3f9/1 |
Fuse 9 (7.5 A), reading lamp |
18B |

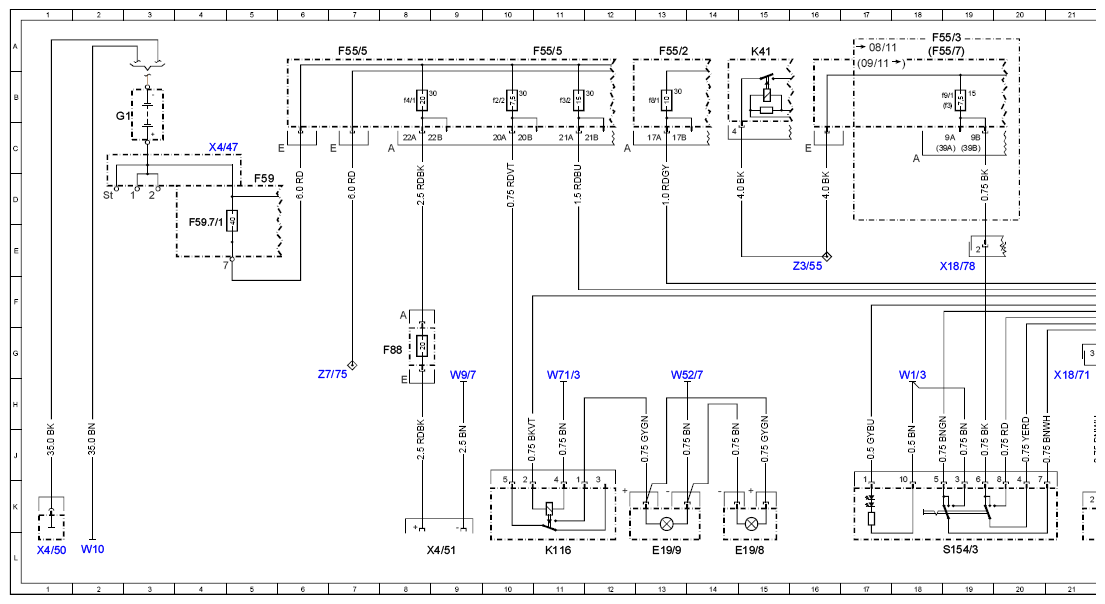

| F55/5 |
Fuse block (9 fuses) |
7A |
| F55/5 |
Fuse block (9 fuses) |
11A |
| F55/5f2/2 |
Fuse 20 (7, 5 A) license plate lamps |
10B |
| F55/5f3/2 |
Fuse 21 (15 A), central locking |
11B |
| F55/5f4/1 |
Fuse 22 (20 A), charge socket |
8B |
| F55/7 |
Fuse block (9 fuses) |
18A |
| F55/7f3 |
Fuse 39 (7.5 A), reading lamp |
18B |
| F59 |
Fuse box |
5D |
| F59.7/1 |
Tml. 30 fuse (40 A) |
4E |
| F88 |
Fuse (20 A) charge socket |
8G |
| G1 |
Battery |
2B |
| H3/4 |
Backup warning horn |
60L |
| K116 |
License plate lamp relay |
11L |
| K41 |
Tml. 15 relief relay |
15A |
| M14/27 |
Right sliding door CL [ZV] actuator |
47L |
| M14/27 |
Right sliding door CL [ZV] actuator |
51L |
| M14/27m1 |
Right sliding door ZV motor |
48L |
| M14/27s1 |
Right sliding door ZV rotary tumbler switch |
48K |
| M14/27s2 |
Right sliding door ZV command switch |
47L |
| M14/27s6 |
Right sliding door CL [ZV] outside door operation button |
50L |
| M14/27s7 |
Right sliding door CL [ZV] inside door operation button |
51L |
| M14/7 |
Rear-end door ZV actuator |
53L |
| M14/7 |
Rear-end door ZV actuator |
58L |
| M14/7m1 |
Rear-end door CL [ZV] motor |
55L |
| M14/7s1 |
Rear-end door ZV rotary tumbler switch |
55K |
| M14/7s2 |
Rear-end door CL [ZV] command switch |
53L |
| M14/7s6 |
Rear-end door CL [ZV] outside door operation button |
56L |
| M14/7s7 |
Rear-end door CL [ZV] inside door operation button |
58L |
| M14/7x1 |
Rear-end door CL [ZV] actuator connector |
52F |

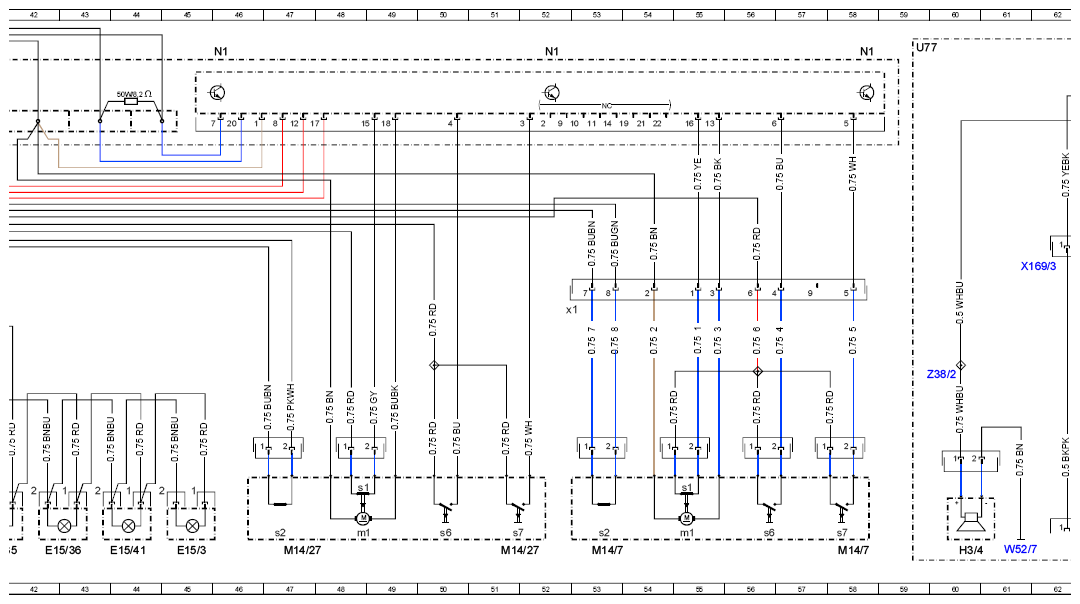

| N1 |
CL [ZV] control box |
40A |
| N1 |
CL [ZV] control box |
46A |
| N1 |
CL [ZV] control box |
52A |
| N1 |
CL [ZV] control box |
58A |
| N10 |
SAM control unit |
28L |
| N10 |
SAM control unit |
23L |
| S154/3 |
Reading lamp switch |
19L |

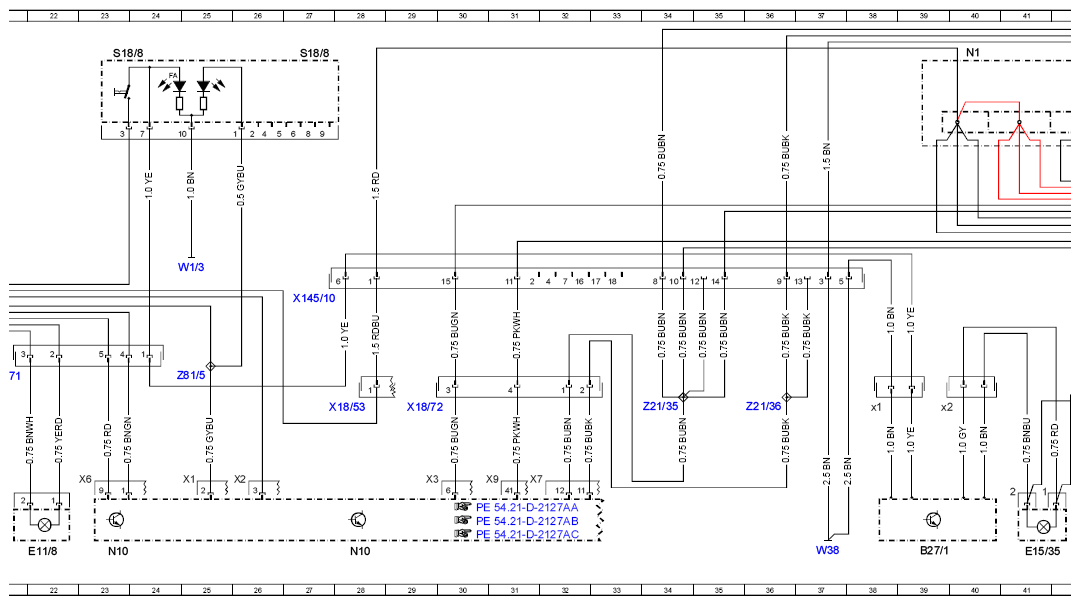

| S18/8 |
Load compartment lamp switch |
23A |
| S18/8 |
Load compartment lamp switch |
27A |
| U77 |
Valid for backup warning system |
59A |
| W1/3 |
CLS cockpit ground point 1 |
18H |
| W1/3 |
CLS cockpit ground point 1 |
25E |
| W1/3 |
CLS cockpit ground point 1 |
67L |
| W10 |
Battery ground point |
2L |
| W38 |
Roof ground point |
37L |
| W52/7 |
Left rear crossmember ground point |
13H |
| W52/7 |
Left rear crossmember ground point |
61L |
| W71/3 |
Driver seat frame ground point 3 |
11H |
| W9/7 |
Left front ground point 2 |
9H |
| X145/10 |
Roof connector |
27F |
| X169/2 |
COC/HLS backup camera connector |
74G |
| X169/3 |
Body manufacturer backup camera connector 1 |
62E |
| X169/4 |
Body manufacturer backup camera connector 2 |
74J |
| X169/7 |
Backup camera connector |
67E |
| X169/8 |
Backup camera connector |
63L |
| X169/9 |
Backup camera connector |
74L |
| X170 |
Backup camera monitor connector |
70E |
| X170/1 |
Backup camera monitor connector |
74E |
| X18/53 |
HLS/roof connector 2 |
28H |
| X18/71 |
COC/roof connector 3 |
21H |
| X18/72 |
HLS/roof connector 7 |
29H |
| X18/78 |
HLS/COC connector 7 |
19E |
| X4/47 |
Tml. 30 battery |
4C |
| X4/50 |
Ground cutout connector |
1L |
| X4/51 |
Charge socket connector |
9L |
| Z21/35 |
CL [ZV] control circuit 1 connector sleeve |
34H |
| Z21/36 |
CL [ZV] control circuit 1 connector sleeve |
36H |
| Z3/55 |
Tml. 15 connector sleeve |
16E |
| Z38/2 |
Backup lamp connector sleeve |
60G |
| Z7/75 |
Tml. 30 connector sleeve |
7G |
| Z81/5 |
Tml. 58d connector sleeve |
25G |
| Z87/41 |
Backup monitor microphone connector sleeve |
67G |
| Z87/43 |
Backup camera microphone connector sleeve |
65G |
