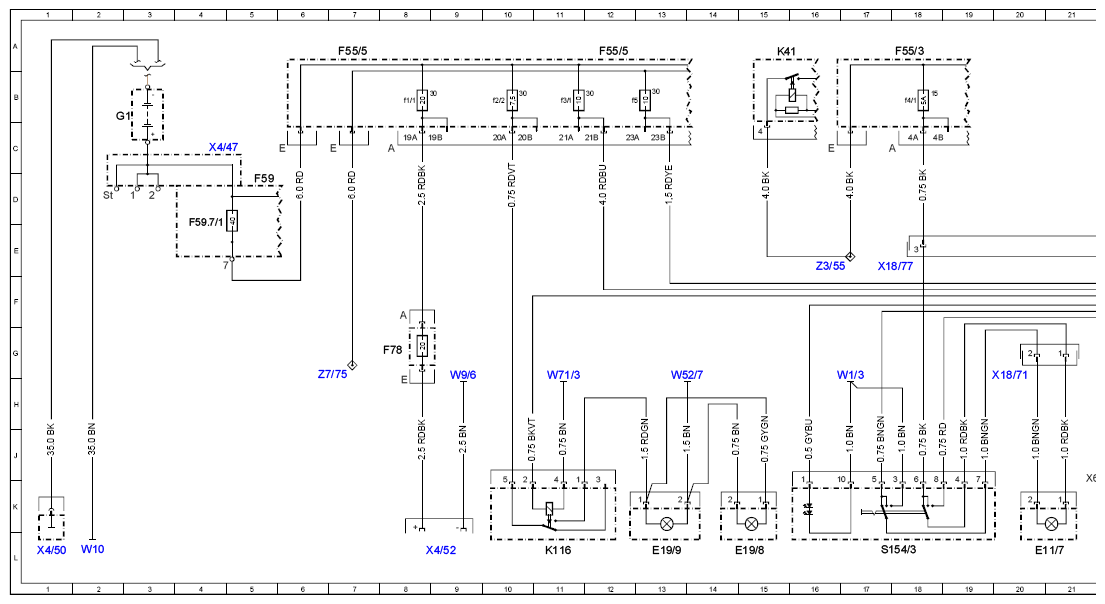

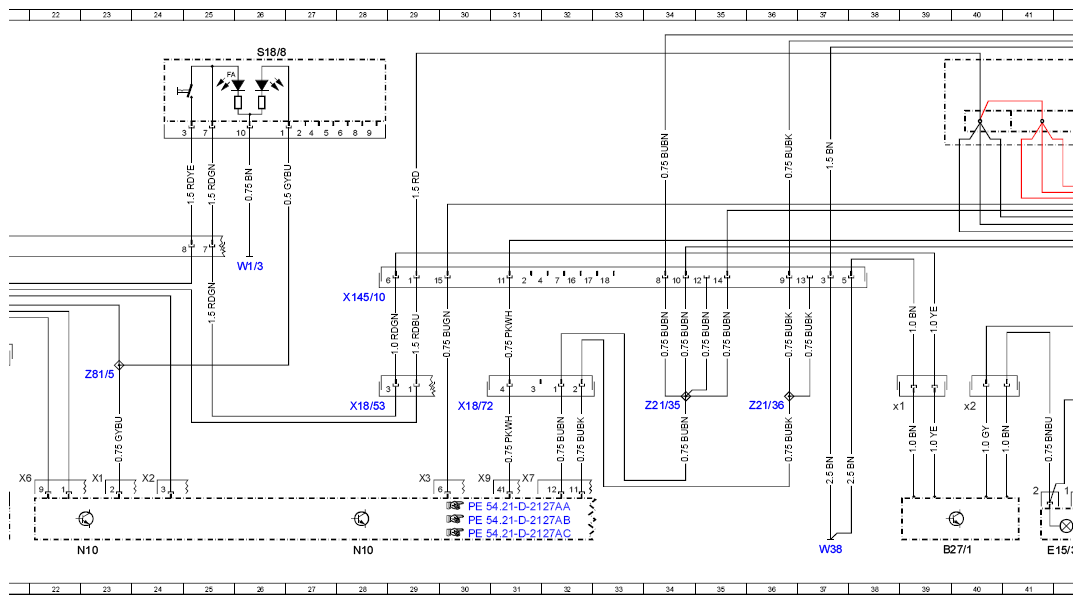

| B27/1 |
Motion sensor |
39L |
| B27/1x1 |
Motion sensor connector |
38H |
| B27/1x2 |
Motion sensor connector |
40H |
| E11/7 |
Reading lamp |
20L |
| E15/3 |
Rear dome lamp |
45L |
| E15/35 |
Rear dome lamp 2 |
42L |
| E15/36 |
Rear dome lamp 3 |
43L |
| E15/41 |
Rear dome lamp 4 |
44L |
| E19/8 |
Left end crossmember license plate lamp |
15L |
| E19/9 |
Right end crossmember license plate lamp |
13L |
| F55/3 |
Fuse block (9 fuses) |
18A |
| F55/3f4/1 |
Fuse 4 (5 A) reading lamp |
18B |
| F55/5 |
Fuse block (9 fuses) |
12A |
| F55/5 |
Fuse block (9 fuses) |
7A |
| F55/5f1/1 |
Fuse 19 (20 A) charge socket |
8B |
| F55/5f2/2 |
Fuse 20 (7, 5 A) license plate lamps |
10B |
| F55/5f3/1 |
Fuse 21 (10 A) central locking |
11B |
| F55/5f5 |
Fuse 23 (10/15 A) electrical components, other make body/left rear socket |
12B |
| F59 |
Fuse box |
5D |
| F59.7/1 |
Tml. 30 fuse (40 A) |
4E |
| F78 |
Fuse (20 A) charge socket |
8G |
| G1 |
Battery |
2B |
| K116 |
License plate lamp relay |
11L |
| K41 |
Tml. 15 relief relay |
15A |

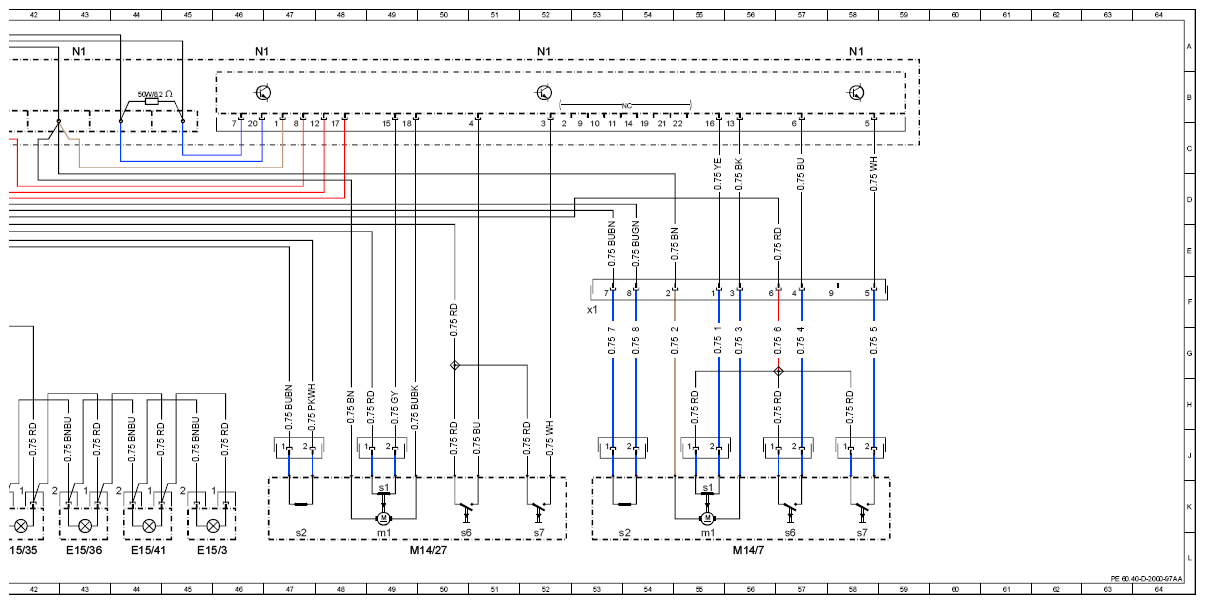

| M14/27 |
Right sliding door CL [ZV] actuator |
50L |
| M14/27m1 |
Right sliding door ZV motor |
49L |
| M14/27s1 |
Right sliding door ZV rotary tumbler switch |
49K |
| M14/27s2 |
Right sliding door ZV command switch |
47L |
| M14/27s6 |
Right sliding door CL [ZV] outside door operation button |
50L |
| M14/27s7 |
Right sliding door CL [ZV] inside door operation button |
52L |
| M14/7 |
Rear-end door ZV actuator |
56L |
| M14/7m1 |
Rear-end door CL [ZV] motor |
55L |
| M14/7s1 |
Rear-end door ZV rotary tumbler switch |
55K |
| M14/7s2 |
Rear-end door CL [ZV] command switch |
53L |
| M14/7s6 |
Rear-end door CL [ZV] outside door operation button |
57L |
| M14/7s7 |
Rear-end door CL [ZV] inside door operation button |
58L |
| M14/7x1 |
Rear-end door CL [ZV] actuator connector |
53F |
| N1 |
CL [ZV] control box |
43A |
| N1 |
CL [ZV] control box |
46A |
| N1 |
CL [ZV] control box |
52A |
| N1 |
CL [ZV] control box |
58A |
| N10 |
SAM control unit |
23L |
| N10 |
SAM control unit |
28L |
| S154/3 |
Reading lamp switch |
17L |
| S18/8 |
Load compartment lamp switch |
26A |
| W1/3 |
CLS cockpit ground point 1 |
17H |
| W1/3 |
CLS cockpit ground point 1 |
26E |
| W10 |
Battery ground point |
2L |
| W38 |
Roof ground point |
37L |
| W52/7 |
Left rear crossmember ground point |
13H |
| W71/3 |
Driver seat frame ground point 3 |
11H |
| W9/6 |
Left front lamp unit ground point |
9H |
| X145/10 |
Roof connector |
28F |
| X18/53 |
HLS/roof connector 2 |
28H |
| X18/71 |
COC/roof connector 3 |
20H |
| X18/72 |
HLS/roof connector 7 |
30H |
| X18/77 |
HLS/COC connector 6 |
18E |
| X4/47 |
Tml. 30 battery |
4C |
| X4/50 |
Ground cutout connector |
1L |
| X4/52 |
Charge socket connector |
9L |
| Z21/35 |
CL [ZV] control circuit 1 connector sleeve |
34H |
| Z21/36 |
CL [ZV] control circuit 1 connector sleeve |
36H |
| Z3/55 |
Tml. 15 connector sleeve |
16E |
| Z7/75 |
Tml. 30 connector sleeve |
7G |
| Z81/5 |
Tml. 58d connector sleeve |
23G |
