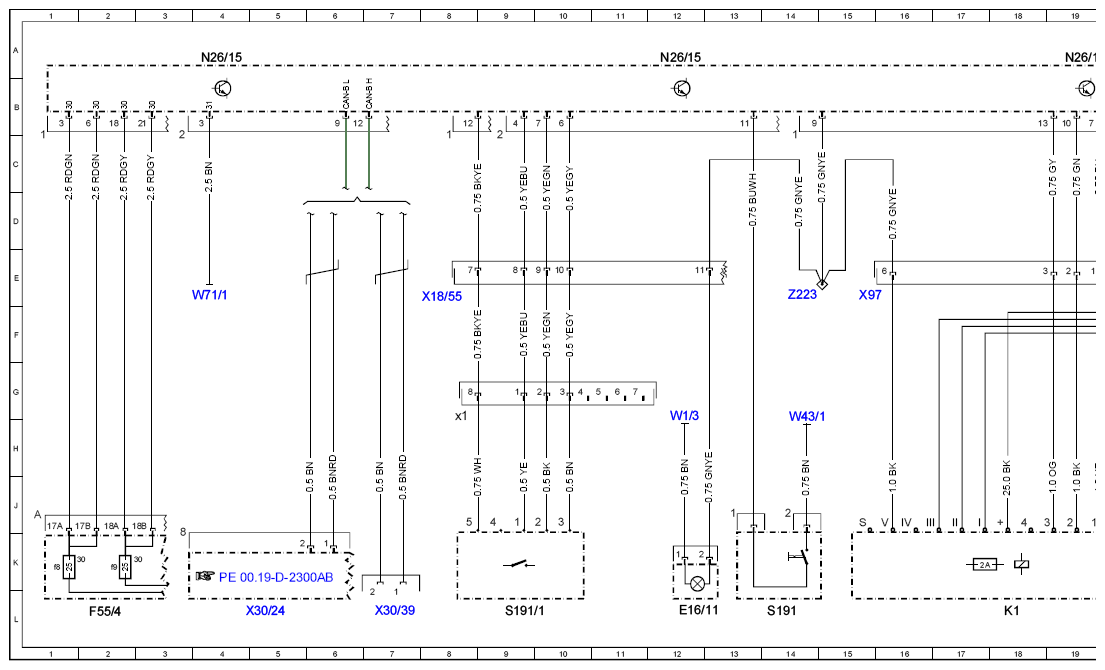

| E16/11 |
Retarder indicator lamp |
12L |
| F55/4 |
Fuse block (9 fuses) |
2L |
| F55/4f8 |
Fuse 17 (25 A), PSM |
1K |
| F55/4f9 |
Fuse 18 (25 A), PSM |
2K |
| K1 |
Retarder relay box |
18L |

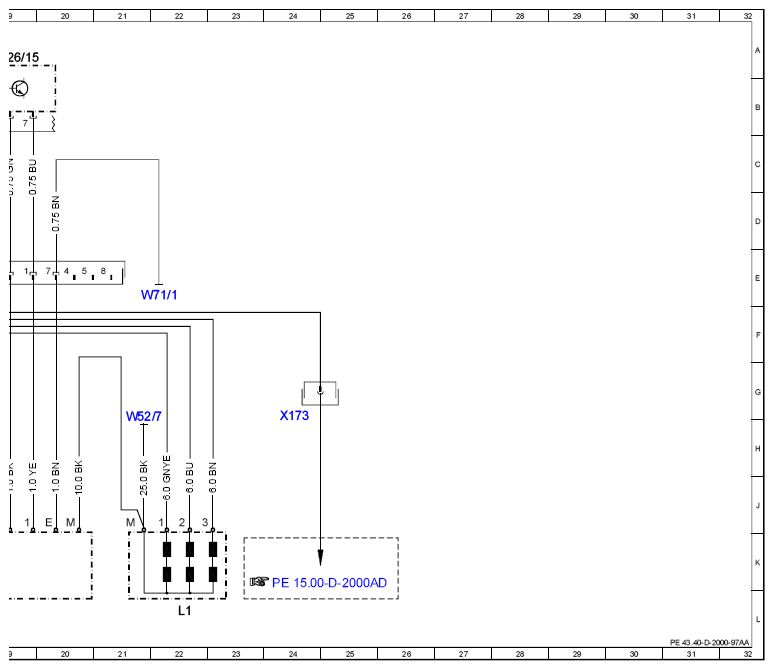

| L1 |
Retarder |
22L |
| N26/15 |
PSM control unit |
4A |
| N26/15 |
PSM control unit |
12A |
| N26/15 |
PSM control unit |
19A |
| S191 |
Retarder switch |
14L |
| S191/1 |
Selector lever retarder switch |
9L |
| S191/1x1 |
Selector lever retarder switch connector |
8H |
| W1/3 |
CLS cockpit ground point 1 |
12H |
| W43/1 |
Left firewall ground point |
14H |
| W52/7 |
Left rear crossmember ground point |
21H |
| W71/1 |
Driver seat frame ground point 1 |
4E |
| W71/1 |
Driver seat frame ground point 1 |
22E |
| X173 |
Tml. 30 retarder connector |
24H |
| X18/55 |
HLS/COC connector 3 |
8E |
| X30/24 |
Interior CAN bus connector |
5L |
| X30/39 |
PSM control unit CAN-B preinstallation connector |
7L |
| X97 |
Retarder connector |
15E |
| Z223 |
Retarder connector sleeve |
14E |
