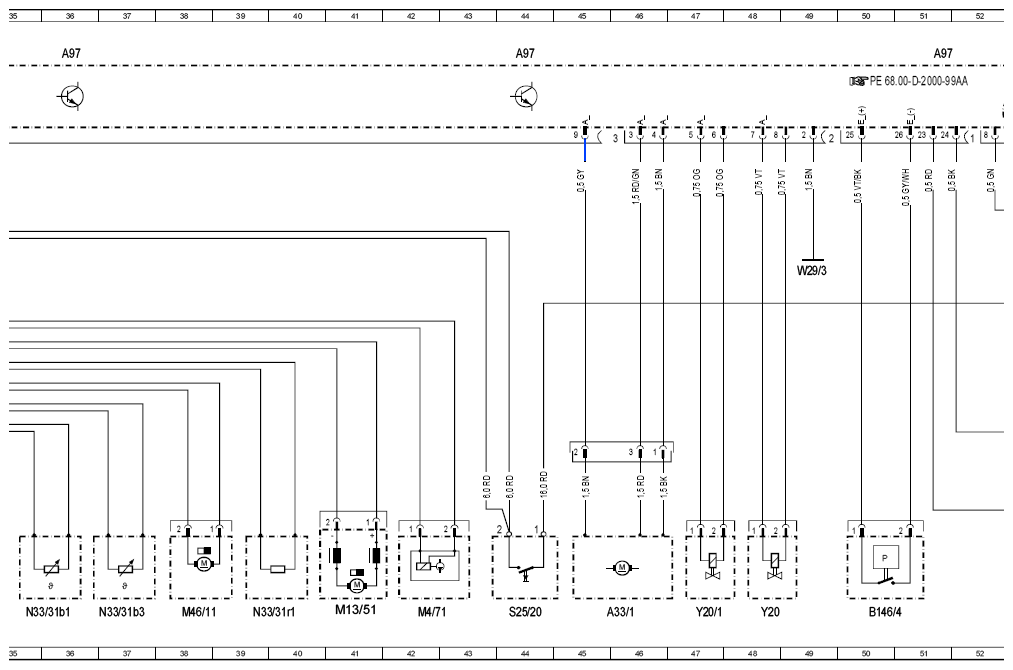

| A33/1 |
Blower regulator |
46L |

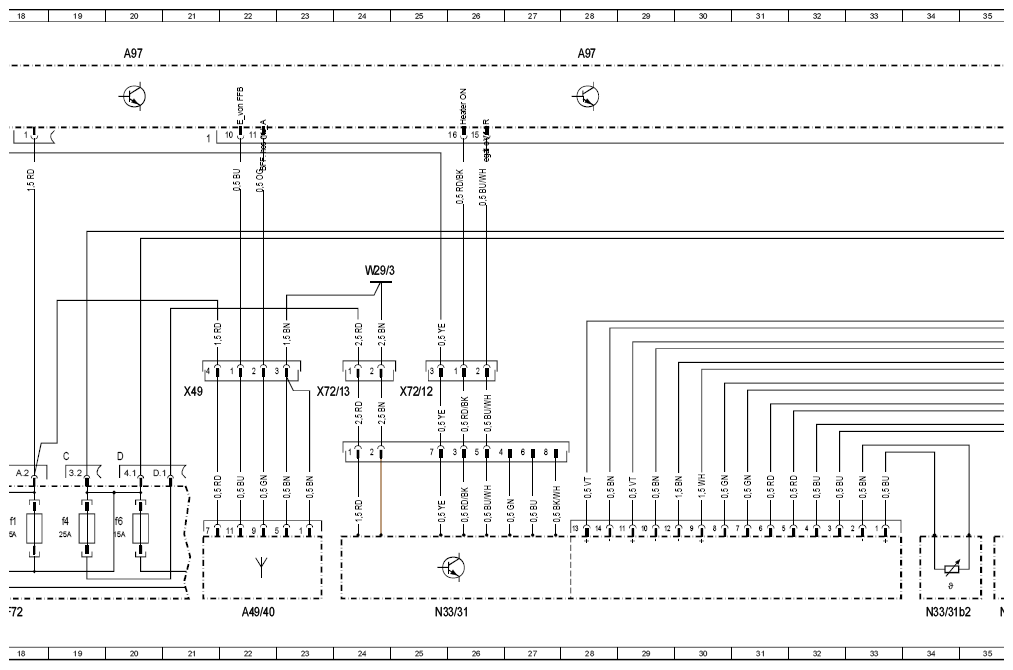

| A49/40 |
Stationary heater radio signal receiver |
22L |

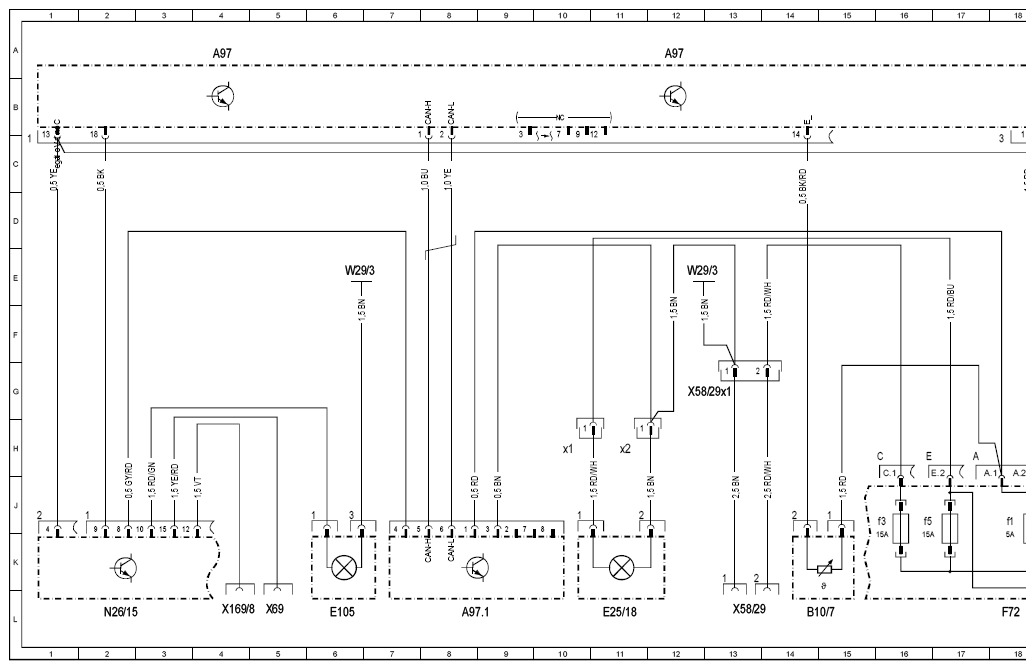

| A97 |
Central operating unit (ZBE) |
4A |
| A97 |
Central operating unit (ZBE) |
12A |
| A97 |
Central operating unit (ZBE) |
28A |
| A97 |
Central operating unit (ZBE) |
20A |
| A97 |
Central operating unit (ZBE) |
36A |
| A97 |
Central operating unit (ZBE) |
44A |
| A97 |
Central operating unit (ZBE) |
51A |
| A97.1 |
Camper display unit |
8L |
| B10/7 |
Hot water boiler temperature sensor |
14L |

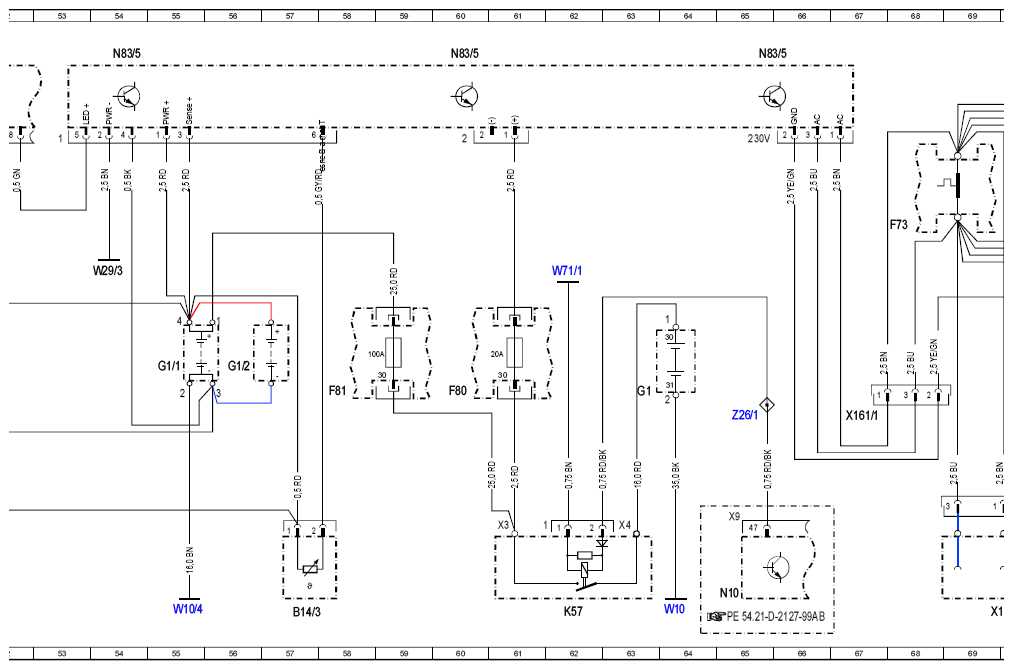

| B14/3 |
Additional battery temperature sensor |
57L |
| B146/4 |
Stationary heater expansion reservoir sensor |
50L |
| E105 |
Stowage space illumination |
6L |
| E25/18 |
Bench seat flourescent lamp |
11L |
| E25/18x1 |
Bench seat fluorescent lamp connector |
10H |
| E25/18x2 |
Bench seat fluorescent lamp connector |
11H |
| F72 |
12V fuse strip |
18L |
| F72f1 |
Central operating unit (COU [ZBE]) electrical fuse |
18J |
| F72f3 |
12V socket fuse |
16J |
| F72f4 |
Hot water auxiliary heater fuse |
19J |
| F72f5 |
Kitchen, illumination, bench seat, step fuse |
16J |
| F72f6 |
Refrigerator fuse |
20J |
| F73 |
Fault-current circuit breaker |
68D |
| F80 |
Onboard charger fuse |
60G |
| F81 |
Charge line to additional battery fuse |
58G |
| G1 |
Battery |
63G |
| G1/1 |
Additional battery |
55G |
| G1/2 |
Additional battery |
56G |
| K57 |
Battery cutoff relay |
62L |
| M13/51 |
Coolant circulation pump |
41L |
| M4/71 |
Burner motor |
42L |
| M46/11 |
Metering pump |
38L |
| N10 |
SAM control unit |
65L |
| N26/15 |
PSM control unit |
2L |
| N33/31 |
Hot water auxiliary heating control unit |
25L |
| N33/31b1 |
Temperature sensor |
35L |
| N33/31b2 |
Flame sensor |
34L |
| N33/31b3 |
Overheating sensor |
37L |
| N33/31r1 |
Glow pin |
39L |
| N83/5 |
110-230 V/12 V onboard charger |
54A |
| N83/5 |
110-230 V/12 V onboard charger |
60A |
| N83/5 |
110-230 V/12 V onboard charger |
65A |
| S25/20 |
Main battery switch |
44L |
| W10 |
Battery ground point |
64L |
| W10/4 |
Additional battery ground point |
55L |
| W29/3 |
Left C-pillar ground point |
6E |
| W29/3 |
Left C-pillar ground point |
12E |
| W29/3 |
Left C-pillar ground point |
24E |

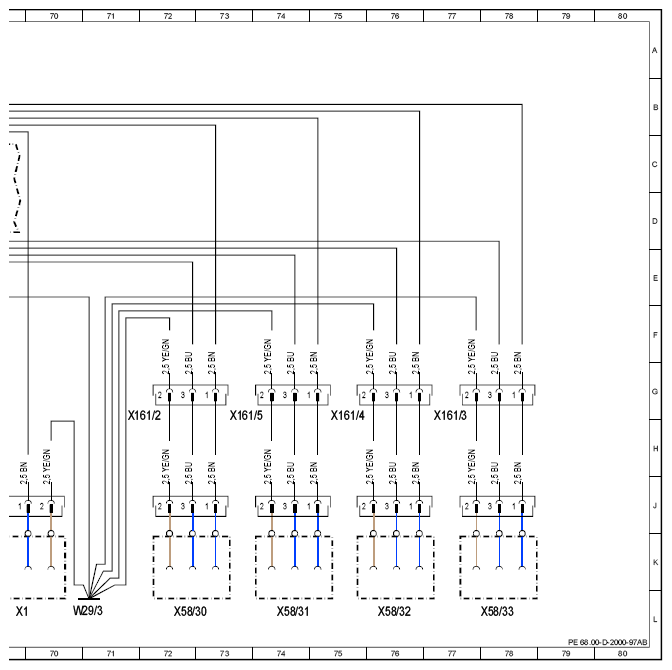

| W29/3 |
Left C-pillar ground point |
70L |
| W29/3 |
Left C-pillar ground point |
49E |
| W29/3 |
Left C-pillar ground point |
54E |
| W71/1 |
Driver seat frame ground point 1 |
62E |
| X1 |
Outside socket |
69L |
| X161/1 |
110-230 V/12 V onboard charger connector |
67H |
| X161/2 |
Bench seat 230 V socket connector |
71H |
| X161/3 |
Bathroom unit 230 V socket connector |
77H |
| X161/4 |
Microwave 230 V socket connector |
75H |
| X161/5 |
D-pillar 230 V socket connector |
73H |
| X169/8 |
Backup camera connector |
4L |
| X49 |
Stationary heater radio signal receiver connector |
21G |
| X58/29 |
12V socket |
13L |
| X58/29x1 |
12 V socket connector |
12G |
| X58/30 |
230V interior socket |
72L |
| X58/31 |
D-pillar 230 V socket |
74L |
| X58/32 |
Microwave 230 V socket |
76L |
| X58/33 |
Bathroom unit 230 V socket |
78L |
| X69 |
Satellite system connector |
5L |
| X72/12 |
Stationary heater connector |
25G |
| X72/13 |
Stationary heater connector |
23G |
| Y20 |
Bathroom unit stationary heater valve |
48L |
| Y20/1 |
Interior compartment stationary heater valve |
47L |
| Z26/1 |
Tml. D+ connector sleeve |
65H |
